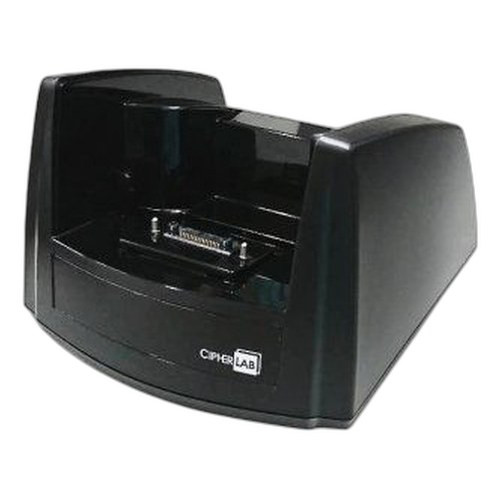

CipherLab A8284MDCNMNN1 8200 Modem Cradle

Overview

The CipherLab A8284MDCNMNN1 is a rugged docking cradle for the A8200 series mobile computer platform. It provides secure mechanical seating and electrical connectivity in warehouse, logistics, and field operations where handheld scanners dock frequently between shifts or tasks. IP54 protection shields the connector interface from dust and splash — meaningful in high-traffic dock areas where water spray from cleaning happens routinely. The cradle itself is rated for repeated 1.2m drops to concrete (5 drops per side), matching the drop resilience of the A8200 terminals it holds, so the entire docking station survives typical warehouse abuse without degradation.

Compatibility

Works exclusively with CipherLab A8200 series mobile terminals. Accommodates all three scan engine configurations: linear imager, 2D imager, and laser imager variants. Physical dimensions vary by scan engine type — 136 x 58 x 25mm for linear imager models, or 136 x 58 x 32mm for 2D and laser variants. If you have mixed scan engines across your fleet, verify the exact engine type in each terminal before ordering to ensure dimensional fit.

Installation Notes

The cradle provides direct electrical docking for the A8200's 3.7V Li-ion battery charging path and serial/USB data connectivity. No external power supply or separate charger is required beyond what the cradle itself draws from your facility's DC outlet — the A8284MDCNMNN1 passes through dock power to the battery. IP54 rating means it can sit in a dock area subject to occasional washdowns but should not be submerged or exposed to high-pressure jets. Position the cradle on a level surface away from standing water; the environmental protection applies to splash and dust, not pooling liquid.
