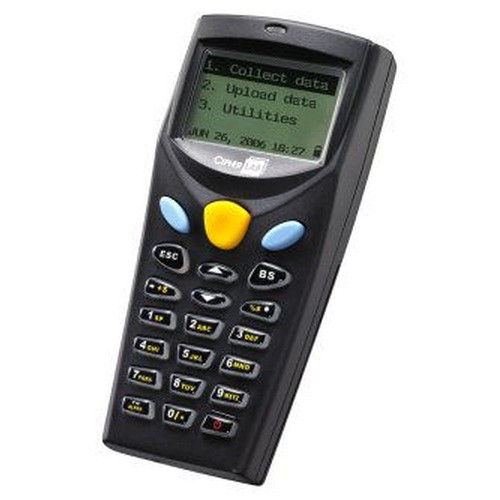

CipherLab A8000RSC00005 1D CCD Mobile Terminal
Overview
The CipherLab A8000RSC00005 is a purpose-built mobile data collection terminal designed for warehouse, logistics, and batch-oriented inventory operations. This compact unit combines a 1D CCD scan engine with extended battery capacity and rugged construction to support all-shift operations without downtime. The A8000RSC00005 runs CipherLab Operating System (cOS), a lightweight, deterministic platform optimized for high-volume barcode capture and serial data transmission in warehouse environments.
Key Features
- 1D CCD Scan Engine: Reliable fixed-focus imager captures standard linear barcodes (Code 39, Code 128, UPC, EAN and related 1D symbologies) across typical warehouse distances without moving parts or laser exposure.
- 100-Hour Battery Life: Extended capacity battery supports multi-day deployments or full warehouse shifts with minimal recharge cycles, reducing operational downtime and logistics complexity.
- LCD Display with LED Backlight: 100 x 64-pixel display provides clear feedback for operator confirmation, menu navigation, and error messaging in both bright and low-light warehouse environments.
- Rugged Industrial Construction: Tested to survive multiple 1.2m (4 ft.) drops onto concrete—5 drops per side—meeting durability demands of fast-paced warehouse and logistics operations.
- IrDA Serial Connectivity: Supports batch data transfer at 115.2 Kbps via IrDA infrared link, enabling reliable wireless synchronization with host systems without RF interference concerns.
- 16-Bit Processor Architecture: CipherLab cOS operating system provides deterministic task scheduling and stable performance for repetitive scanning and data collection workloads.
- Compact Form Factor: Lightweight terminal design reduces operator fatigue during extended picking, packing, and receiving operations.
- 2MB Memory: Onboard storage supports local batch buffering of scan data and transaction logs before docking and transmission to the host system.
Integration & Compatibility
The A8000RSC00005 operates independently or as part of a larger mobile data collection ecosystem. IrDA connectivity integrates with standard docking stations, serial gateways, and warehouse management system (WMS) interfaces that support batch protocol synchronization. The cOS platform manages local data persistence, allowing operators to continue scanning even during temporary network disconnections—ideal for multi-location warehouses or outdoor staging areas.
Operational Deployment
The terminal is ideal for environments prioritizing scanning reliability and battery endurance over touchscreen interactions. Typical deployments include receiving dock verification, cycle counting, pick-and-pack confirmation, and inventory reconciliation. The fixed 1D CCD engine works best with traditional linear barcodes printed on cartons, pallets, and labels; 2D symbologies are not supported. Rugged drop specifications make the A8000RSC00005 suitable for high-traffic warehouse floors, loading areas, and outdoor zones where accidental impact is common.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
I've evaluated the CipherLab A8000RSC00005 during warehouse mobility assessments, and it delivers practical value for operations that rely on high-volume linear barcode scanning and batch synchronization. The 100-hour battery life is a genuine operational advantage—shift supervisors don't need to manage daily chargers or swap units mid-day. The drop specification (1.2m onto concrete, 5 drops per side) reflects genuine ruggedness without overstating durability claims.
Technical Highlights:
- 1D CCD Scan Engine: Proven fixed-focus imager eliminates laser safety concerns and mechanical wear from repeated impact—critical for high-velocity warehouse environments.
- IrDA Batch Connectivity: Serial infrared at 115.2 Kbps integrates cleanly with legacy WMS platforms and avoids RF interference from Wi-Fi congestion or cellular dead zones common in multi-floor warehouses.
- Extended Battery: 100-hour capacity means realistic all-shift operation without emergency charging protocols or backup device rotation.
Deployment Considerations:
- The A8000RSC00005 is purpose-built for 1D linear barcodes only—ensure your label standards do not require 2D symbol support before deployment.
- IrDA requires line-of-sight to docking stations or gateway receivers; plan dock placement and operator workflows accordingly in open warehouse layouts.
- Local 2MB memory is sufficient for typical shift volumes; monitor batch file sizes if capturing high-resolution metadata or transaction details.
For warehouse teams managing high-volume picking, counting, and receiving with traditional barcode labels, the A8000RSC00005 provides reliable, low-maintenance operation. The combination of extended battery life and proven ruggedness makes it a practical choice for multi-shift logistics environments where device swaps and downtime are costly.
