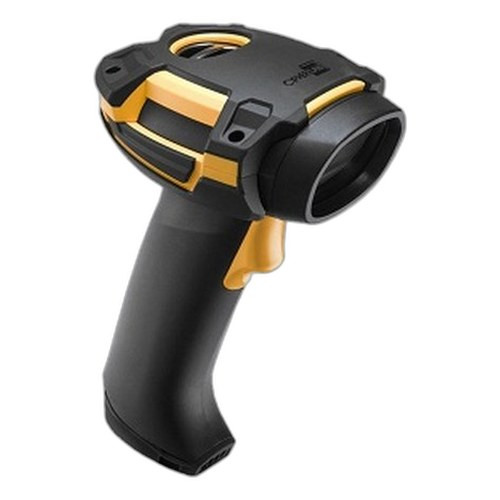

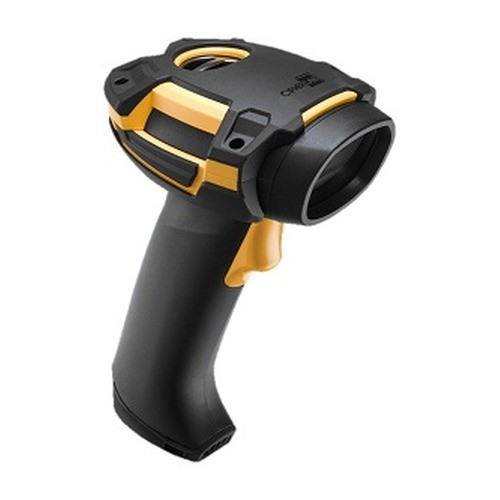

Cipherlab A2564S8BKUTS3 Linear Imager Barcode Scanner

Cipherlab A2564S8BKUTS3 Extended Range 1D Barcode Scanner

The Cipherlab A2564S8BKUTS3 is a linear imager barcode scanner designed for warehouse, logistics, and retail environments requiring reliable 1D code capture across variable scanning distances. This extended range USB kit delivers consistent read performance on standard and small-format barcodes with Bluetooth connectivity for mobile workflow integration.

Overview

The A2564S8BKUTS3 employs a linear imager scan engine to capture 1D barcodes with a minimum print contrast of 15%, making it suitable for lower-quality labels common in warehouse operations. The scanner operates in both auto-sense and continuous scan modes, capturing up to 578 scans per second to support high-volume picking and receiving workflows. An IP65 rating provides protection against dust and water spray, addressing logistics environments where equipment encounters moisture and particulate matter.

Key Features

• Linear Imager Scan Engine: 1D barcode recognition without moving parts, reducing maintenance overhead
• Extended Scan Range: Code 39 at 20 mil captures from 1.5 to 60 cm (0.6 to 23.6 in); UPC-A at 13 mil extends to 38 cm (15 in)
• High Scan Rate: 578 scans per second supports rapid successive reads in fast-paced warehouse settings
• Dual Scan Modes: Auto-sense and continuous modes adapt to operator preference and workflow requirements
• Low Contrast Tolerance: 15% minimum print contrast reads worn or faded labels without operator adjustment
• IP65 Rating: Sealed against dust ingress and water jets, suitable for damp dock and outdoor staging areas
• Bluetooth Connectivity: Wireless interface eliminates cable constraints during mobile picking and cycle counting
• Broad Symbology Support: Reads Code 39, Code 128, UPC/EAN, GS1 DataBar (RSS), Interleave 2 of 5, Code 93, Codabar, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, Code 11, and additional formats
• USB Kit Configuration: Includes dock and interface cable for stationary scanning stations and charging
• Black Finish: Industrial aesthetics with durable housing resistant to typical warehouse handling

Integration & Compatibility

The A2564S8BKUTS3 interfaces via Bluetooth to mobile computers, tablets, and warehouse management terminals supporting standard HID profiles. USB connectivity through the included dock enables direct connection to desktop and server-based applications without additional drivers in most Windows and Linux environments. The extended range capability—particularly the 60 cm read distance on 20 mil Code 39 barcodes—reduces operator reach requirements and accelerates scanning cycles on racking and conveyor systems.

The linear imager architecture requires a single pass across the barcode orientation, making it suitable for handheld workflows and fixed-mount scanning stations. Auto-sense mode automatically adjusts exposure timing to optimize reads under varying ambient light conditions in warehouses with inconsistent lighting.

Typical Deployment Scenarios

Organizations use the A2564S8BKUTS3 in receiving dock operations, where operators scan incoming shipment labels; putaway workflows, where pickers verify location codes before placement; and cycle counting, where the Bluetooth interface enables mobility between aisles without docking. The IP65 rating supports outdoor staging yards and refrigerated environments where condensation occurs.

Eden Phillips

I've evaluated the Cipherlab A2564S8BKUTS3 during logistics automation RFPs, and it delivers practical value in high-velocity warehouse environments. The extended scan range—particularly the 60 cm depth on 20 mil Code 39—substantially reduces operator fatigue during racking scans and conveyor reading. Bluetooth mobility without sacrificing dock charging and USB direct-integration options balances flexibility with infrastructure simplicity.

Technical Highlights:

• Extended Range Depth: 60 cm (23.6 in) on standard warehouse Code 39 labels minimizes reach and head movement during putaway and cycle count cycles
• High Scan Rate Throughput: 578 scans/second supports rapid-fire reads during fast-moving conveyor and batch picking operations without bottleneck delays
• Dual Connectivity: Bluetooth for mobile workflows plus USB dock integration means no single infrastructure dependency; systems can operate hybrid wireless and wired configurations
• IP65 Environmental Sealing: Proven resilience in dock spray-down scenarios and outdoor staging without degraded performance

Deployment Considerations:

• Linear imagers require operator alignment—ensure training covers single-pass scanning technique to avoid false reads on rotated labels
• The 15% minimum contrast tolerance works well on aged warehouse label stock, but confirm compatibility with your barcode printing process during pilot deployment
• Bluetooth pairing with legacy WMS terminals should be validated in your specific mobile device environment before rollout

For mid-sized logistics operations balancing capital expenditure against operator productivity, the A2564S8BKUTS3 represents a solid choice. The combination of extended range and rugged IP65 design reduces total cost of ownership through fewer device replacements and lower training overhead compared to shorter-range or non-sealed alternatives.
