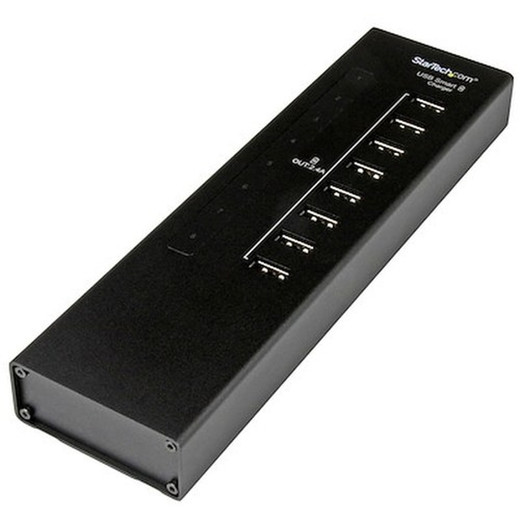

StarTech ST8CU824 8-Port USB Charging Station

Overview

The StarTech ST8CU824 is a centralized 8-port USB charging station that delivers up to 96 watts total output across eight USB 2.0 Type-A ports simultaneously. Built on an aluminum chassis and compliant with USB Battery Charging Specification Rev. 1.2, it's sized for deployment in conference rooms, healthcare carts, retail back offices, classrooms, and any environment where multiple mobile devices need reliable overnight or shift-cycle charging from a single managed location. At 8.3 × 2.4 × 1.0 inches and 9.2 oz, it occupies minimal counter or shelf space without requiring a rack enclosure.

Key Features

• 96W Total Output Across 8 Ports: The ST8CU824 allocates up to 2.4 amps per port under the USB BC 1.2 specification. That's enough to charge a typical tablet at full rate — critical in multi-shift environments where devices need to recover charge quickly between shifts rather than trickle-charging overnight.
• 2.4A Per-Port Delivery (USB BC 1.2): USB Battery Charging Specification Rev. 1.2 compliance means the charger negotiates correctly with smartphones, tablets, and barcode scanners that expect BC 1.2 handshake — you won't encounter the slow-charge fallback that occurs with standard USB 2.0 ports that lack charging spec support.
• Universal 100–240V AC Input: The 12V DC internal supply accepts any mains voltage from 100 to 240VAC, so this unit deploys without a voltage converter in North America, Europe, or anywhere with standard mains power. One SKU covers global deployments.
• 12V DC / 8A Internal Power Architecture: The 12V DC output rail at 8A total current underpins the full 96W capacity. This architecture keeps the per-port regulation straightforward and stable — unlike multi-voltage switching designs that can introduce ripple when all ports are loaded simultaneously.
• Aluminum Construction: The aluminum enclosure dissipates heat more efficiently than plastic housings, which matters when all eight ports are loaded continuously over a full shift. Better thermal management extends component life in always-on deployments.
• Compact Form Factor (8.3 × 2.4 × 1.0 in): At just over 8 inches long and 1 inch tall, the ST8CU824 sits flat on a charging shelf, mounts to a cart, or tucks behind a kiosk without requiring dedicated space planning. The 9.2 oz weight means it won't stress lightweight cart shelves.
• Operating Range 5°C to 35°C: Rated for standard indoor commercial environments. This covers most office, retail, healthcare, and light industrial interior spaces. Note: this is not rated for outdoor or unheated storage environments during operation — the storage range extends to -20°C to 50°C for non-operating conditions.
• 20–80% RH Humidity Tolerance: Suitable for typical climate-controlled interior deployments. Not rated for high-humidity industrial environments — plan accordingly if the installation is in a kitchen, laundry, or similar high-moisture space.

Integration and Compatibility

The ST8CU824 works with any device that charges via USB 2.0 Type-A and supports the USB Battery Charging Specification Rev. 1.2 or falls back to standard USB charging. Common compatible device classes include Android smartphones and tablets, iOS devices (with appropriate cables), barcode scanners used in warehouse automation environments, body-worn cameras, and push-to-talk radios with USB charging ports. It does not support USB Power Delivery (USB-PD) or Qualcomm Quick Charge protocols — devices that require those standards will charge at standard rates. For environments deploying PoE network infrastructure, this unit handles the device-side USB charging separately from the network power architecture. Cable management is the installer's responsibility — the unit ships without retention clips or cable organizers, so plan your cable management solution for the charging shelf or cart installation.

Frequently Asked Questions

Q: How much current does each port deliver on the ST8CU824?

A: Each of the eight USB 2.0 Type-A ports delivers up to 2.4 amps. Total output current is 8 amps across all ports combined (12V DC at 8A = 96W total), so the 2.4A per-port maximum assumes not all ports are simultaneously drawing at peak demand.

Q: Does the ST8CU824 support USB Power Delivery (USB-PD) or Quick Charge?

A: No. The ST8CU824 is based on USB Battery Charging Specification Rev. 1.2, not USB Power Delivery or Qualcomm Quick Charge. Devices requiring those protocols will charge, but at standard USB BC 1.2 rates rather than the accelerated rates those protocols provide.

Q: Can the ST8CU824 be used internationally without a power converter?

A: Yes. The unit accepts 100–240V AC input, covering virtually all standard mains voltages worldwide. You will need the appropriate regional plug adapter for the local outlet type, but no voltage converter is required.

Q: What is the warranty on the ST8CU824?

A: The ST8CU824 carries a 2-year manufacturer warranty.

Q: Is the ST8CU824 suitable for mounting inside a rack enclosure?

A: The unit is not a rack-mount form factor (1U, 2U, etc.) and does not include rack ears. It is designed for desktop, shelf, or cart surface deployment. At 8.3 × 2.4 × 1.0 inches, it can sit on a shelf within a rack cabinet, but it is not rack-mountable by default.

Q: What temperature range can the ST8CU824 operate in?

A: The operating temperature range is 5°C to 35°C (41°F to 95°F), suitable for standard climate-controlled indoor environments. Storage temperature range is -20°C to 50°C when the unit is not powered.

Eden Phillips

The thing I keep coming back to with the ST8CU824 is the 96W total budget against 8 ports — that's a real 2.4A available per port under USB BC 1.2, not a paper spec that collapses when you plug in more than four devices. In practice, that means a full cart of tablets or scanners actually recovers usable charge during a 30-minute break cycle, which is the difference between a charging station that works operationally and one that just looks organized.

Technical Highlights:

• 96W / 8A Output Rail: The 12V DC at 8A architecture keeps regulation stable across all eight ports simultaneously — no brown-out behavior when the full cart is loaded at shift start.
• USB BC 1.2 Compliance: Negotiates correctly with BC 1.2-aware devices including most enterprise Android tablets and USB-charging barcode scanners, avoiding the 500mA fallback that kills your charge cycle math.
• Aluminum Chassis: Passive thermal dissipation matters in always-on deployments — an aluminum shell handles continuous full-load heat better than plastic equivalents and won't warp on a warm equipment shelf.

Deployment Considerations:

• Operating temperature tops out at 35°C — install in a climate-controlled space. An equipment closet or unventilated cart enclosure that runs warm can push past that ceiling under continuous full-load operation.
• No USB-PD or Quick Charge support — if your device fleet has migrated to USB-C PD charging (common in newer Android and iOS devices), verify your devices also support BC 1.2 fallback charging, or this unit won't hit rated charge rates for those devices.

This unit fits cleanest in a healthcare or retail environment running a defined fleet of BC 1.2-compatible Android handhelds or purpose-built scanners — the kind of deployment where you control the device spec and need guaranteed shift-cycle recovery from a compact, reliable shelf charger.
