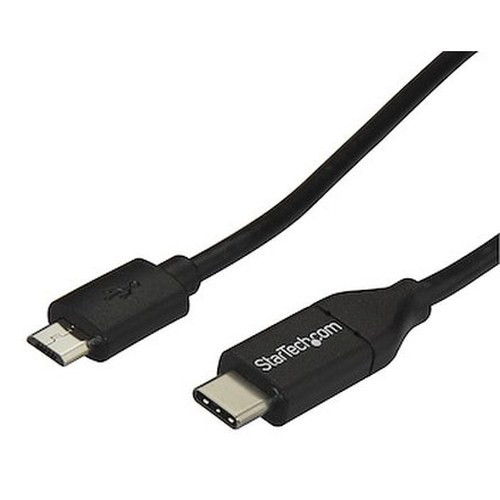

StarTech USB2CUB1M USB-C to Micro-B Charge and Sync Cable

Overview

The StarTech USB2CUB1M is a 1-meter (3.3 ft) USB 2.0 cable that bridges a USB Type-C host port to a USB Micro-B device — a connector combination that comes up constantly when managing field equipment, handheld scanners, body-worn cameras, or any legacy Micro-B device tethered to a modern USB-C laptop or dock. At 480 Mbps, it handles both charging and full-speed data transfer without requiring an adapter chain that introduces points of failure. If your environment still runs a mix of USB-C hosts and Micro-B peripherals, USB2CUB1M is the direct solution.

Key Features

• 480 Mbps USB 2.0 Data Rate: Full USB 2.0 high-speed throughput means firmware updates, file transfers, and configuration pushes to Micro-B devices complete in a reasonable time — not the trickle you get from USB 1.1 cables that sometimes ship with budget accessories. For a 500MB firmware image, you're looking at roughly 8–10 seconds rather than several minutes.
• USB Type-C to Micro-B Wiring: Connects directly from a USB-C port (laptop, dock, wall charger with C output) to any Micro-B device. Eliminates the need for a C-to-A adapter plus a separate Micro-B cable — fewer connectors in the chain means fewer failure points in the field.
• 1-Meter (3.3 ft) Length: Long enough to reach from a desk-mounted dock to a device on the work surface, or from a charging station shelf to a handheld unit resting on the bench. Short enough that it doesn't create cable management headaches in a rack or equipment cabinet.
• Nickel-Plated Connectors: Nickel plating resists oxidation better than bare copper contacts, which matters in warehouse or field environments where connectors get plugged and unplugged daily. You won't see the green corrosion or intermittent contact that appears on lower-grade connectors after a year of heavy cycling.
• PVC Cable Jacket: PVC offers adequate flexibility and abrasion resistance for bench and desk use. It won't crack in normal indoor temperature ranges, and the 21g (0.7 oz) total weight means there's minimal strain on device ports when the cable hangs freely.
• Lifetime Warranty: StarTech backs this cable with a lifetime warranty — meaningful for a consumable that typically ships with a 1-year or no warranty at all. In a fleet deployment where cables get lost or damaged regularly, knowing replacements are covered reduces total cost of ownership.
• Lightweight at 21g (0.7 oz): The minimal weight means no port stress on devices with Micro-B receptacles that aren't mechanically reinforced — a real concern with handheld scanners and body-worn devices where the port is often the first thing that fails under cable weight.

Integration and Compatibility

The USB2CUB1M works with any host device exposing a standard USB Type-C port — including USB-C docks, USB-C hubs, laptops, and wall chargers with USB-C Power Delivery output. On the device side, it connects to anything with a USB Micro-B receptacle: handheld barcode scanners, body-worn cameras, ruggedized mobile computers, IP intercoms, and other USB accessories that pre-date the USB-C transition. This cable does not support USB 3.x speeds — if your device and host both support SuperSpeed (5Gbps or 10Gbps), you need a USB 3.x-rated cable. For 480 Mbps workloads — charging, configuration, standard file sync — this cable is fully sufficient. It is not a video or DisplayPort alternate-mode cable; it carries USB data and power only. For deployments involving structured cabling or larger IP camera installations, this cable handles the peripheral charging and configuration side of the workflow rather than network connectivity.

Frequently Asked Questions

Q: What is the data transfer speed of the USB2CUB1M?

A: The USB2CUB1M supports USB 2.0 high-speed data transfer at up to 480 Mbps. It does not support USB 3.x SuperSpeed rates.

Q: Can the USB2CUB1M be used for charging as well as data transfer?

A: Yes. The cable supports both charging and data sync simultaneously, provided the USB-C host port supplies power. The maximum charge current is governed by the host port and the connected device, not the cable itself.

Q: What connectors does the USB2CUB1M use?

A: One end is USB Type-C (the host side) and the other is USB Micro-B (the device side). It is not reversible on the Micro-B end — the connector is directional.

Q: What warranty does the USB2CUB1M carry?

A: StarTech backs the USB2CUB1M with a lifetime warranty.

Q: Is the USB2CUB1M compatible with USB-C wall chargers?

A: Yes, as long as the wall charger has a USB-C output port. The cable will carry power from the charger to the Micro-B device. USB Power Delivery negotiation depends on the charger and device — the cable itself is passive.

Q: Does the USB2CUB1M support video output or alternate mode?

A: No. This cable carries USB 2.0 data and power only. It does not support DisplayPort alternate mode, Thunderbolt, or any video signal.

James Everett

The USB2CUB1M is a cable I recommend specifically when a team has transitioned to USB-C laptops or docks but still operates a fleet of Micro-B peripherals — handheld scanners, body-worn cameras, or legacy configuration dongles. The 480 Mbps USB 2.0 ceiling is not a limitation for these workflows; firmware pushes and config file transfers at that speed are fast enough that technicians aren't standing around waiting. What matters more is that the nickel-plated connectors survive daily plug cycles without developing the oxidation-related dropouts I've seen on cheaper cables after six months in a warehouse environment.

Technical Highlights:

• 480 Mbps data rate: Full USB 2.0 high-speed — adequate for all standard configuration, sync, and charging tasks without needing a USB 3.x cable for Micro-B devices that don't support SuperSpeed anyway.
• 21g total weight: At 0.7 oz, port stress on Micro-B receptacles is minimal — critical for handheld devices where the Micro-B port is a known mechanical weak point under cable weight or tension.
• Lifetime warranty: In a fleet of 50+ cables cycling through a depot charging station, the lifetime coverage means replacements don't come out of the consumables budget — a real operational cost difference versus 1-year-warranted alternatives.

Deployment Considerations:

• At 1 meter (3.3 ft), this cable fits desk-to-device and shelf-to-device runs cleanly. For charging carts or rack-mounted charging stations where the device sits further away, measure your span before ordering — you may need a longer variant.
• This is a USB 2.0 cable. If your Micro-B device supports USB 3.0 (identifiable by the blue insert in the Micro-B receptacle), this cable will still work but will cap throughput at 480 Mbps, not SuperSpeed. Confirm your peripheral's actual port type before assuming 3.0 speeds are available.

For depot charging stations and field-kit staging areas where technicians connect USB-C laptops to Micro-B scanners or body-worn cameras for nightly sync and firmware updates, the USB2CUB1M is the right spec: correct connectors, adequate speed, durable contacts, and warranty coverage that holds up in a high-rotation environment.
