Altronix ALTV2416300ULCBM3 CCTV Power Supply 16 PTC Class 2 Outputs 24/28VAC @ 12.5A 115VAC
Overview

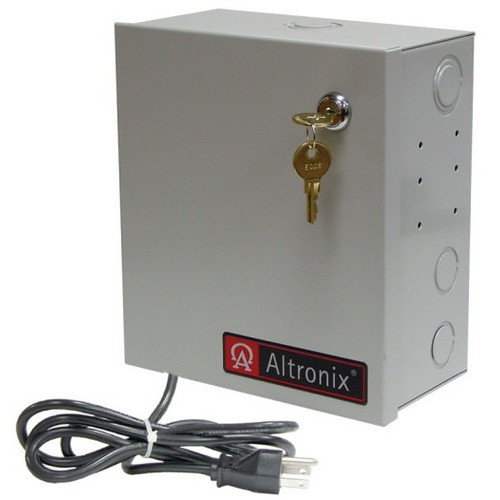

The Altronix ALTV2416300ULCBM3 is a versatile power distribution unit designed to supply reliable 24VAC or 28VAC to multiple surveillance devices. It offers 16 individually fused, PTC-protected outputs, allowing for granular control and protection of connected equipment like IP cameras, PTZ domes, or access control readers. This unit is ideal for installations requiring a centralized, high-capacity power source that can be configured for different voltage requirements, simplifying wiring and reducing the need for multiple smaller power bricks. The ALTV2416300ULCBM3 is suitable for 115VAC input environments.
Compatibility
This power supply is designed for general use with most 24VAC or 28VAC surveillance and access control devices. It is compatible with a wide range of IP cameras, analog cameras, PTZ controllers, IR illuminators, and electronic door locks that operate within these voltage ranges and draw current within the specified limits per output and total output capacity. It is not specific to any single camera manufacturer but rather provides a robust power backbone for diverse system components.
Installation Notes
The unit requires a 115VAC input connection. Each of the 16 outputs is protected by a resettable PTC (Positive Temperature Coefficient) current limiting device, rated for 2.5A per output, with a total output current not exceeding 12.5A. The selectable 24VAC or 28VAC output voltage allows for flexibility in powering devices with different voltage requirements. Ensure the total current draw of all connected devices does not exceed the unit's 12.5A total output capacity to prevent PTC tripping or damage. Proper ventilation should be maintained around the enclosure.
What's in the Box
- 1x Altronix ALTV2416300ULCBM3 Power Distribution Unit
- 1x Mounting Template
- 1x Installation Manual
