Panduit PUP6C04BU-WZ Cat 6 Plenum Cable
The Panduit PUP6C04BU-WZ delivers 1000 ft of Category 6 UTP cable engineered for plenum-rated installations in commercial security and data infrastructure projects. This 24 AWG solid-conductor cable meets CMP flammability requirements for above-ceiling and HVAC-plenum runs where fire-safety codes demand low-smoke, low-flame-spread materials. The blue jacket simplifies color-coding in multi-cable bundles common to IP camera deployments, access control trunks, and structured cabling systems. Part of Panduit's Pan-Net™ copper portfolio, the PUP6C04BU-WZ is spec'd for integrators managing PoE-fed endpoints across campus networks, datacenter hot-aisle feeds, and building-wide surveillance backbones where pulling individual runs from a bulk reel is more cost-effective than pre-terminated patch cords.
Key Features
- Category 6 Performance: 250 MHz bandwidth supports Gigabit Ethernet (1000BASE-T) and PoE/PoE+ power delivery up to 90 m permanent link distances per TIA-568 standards
- Plenum-Rated CMP Jacket: Meets NEC Article 770 and NFPA 262 requirements for installation in air-handling spaces without conduit, reducing labor and material costs in ceiling-grid and raised-floor environments
- 24 AWG Solid Copper Conductors: Four unshielded twisted pairs with solid-core construction for punch-down terminations at patch panels, keystones, and 110-blocks—lower DC resistance than stranded equivalents for longer PoE runs
- 1000 ft Reel: Pull-box packaging supports continuous cable runs up to 295 ft (90 m channel limit) without mid-span splices, maintaining signal integrity and simplifying testing
- Blue Jacket Color: Facilitates color-coded trunk identification in multi-system installations (e.g., blue for IP cameras, yellow for access control, white for voice) per site-specific labeling schemes
- UTP Construction: Unshielded twisted-pair design balances cost and performance for typical commercial environments; eliminates grounding/bonding complexity required by shielded (F/UTP or S/FTP) cables

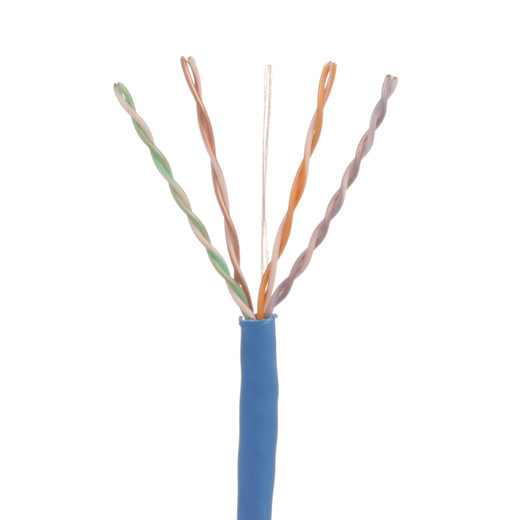

The PUP6C04BU-WZ uses four twisted pairs of 24 AWG solid bare-copper conductors in a U/UTP (unshielded) configuration. Each pair is precision-twisted at manufacturer-specified rates to cancel crosstalk and maintain the 100-ohm characteristic impedance required by ANSI/TIA-568.2-D. The plenum-rated jacket is extruded from a fluoropolymer compound that passes UL 910 Steiner Tunnel testing—when exposed to flame, it self-extinguishes and produces minimal smoke, meeting International Building Code (IBC) and National Fire Protection Association (NFPA) mandates for air-circulation spaces. Unlike riser-rated (CMR) or general-purpose (CM) cables, CMP-rated cables can be installed without conduit in plenums, reducing labor by 30–50% on projects where ceiling space serves as the primary cable pathway. The solid-conductor design is optimized for termination into insulation-displacement connectors (IDCs)—the rigid wire seats firmly into punch-down blocks and keystone jacks without the strand-breakage risk associated with stranded patch cords. DC loop resistance typically measures 9.38 Ω/100 m per conductor, keeping voltage drop within IEEE 802.3af/at budgets for PoE devices drawing up to 25.5 W (PoE+) at the powered device (PD) input.
Deploy the PUP6C04BU-WZ in IP surveillance projects where camera density demands bulk cable efficiency: a 32-channel NVR installation pulling sixteen 200 ft runs consumes exactly three reels, versus ordering sixteen individual lengths and managing cutoffs. The 1000 ft length supports most horizontal cable runs in commercial buildings—TIA-568 allows a maximum 90 m (295 ft) permanent link plus 10 m of patch cords, so a single reel can serve three typical drops with minimal waste. Plenum rating is mandatory in any space used for environmental air movement per NEC 300.22(C)—this includes dropped ceilings above workstations, underfloor HVAC plenums in datacenters, and vertical shafts in high-rise buildings. The blue jacket integrates into color-coding strategies that reduce troubleshooting time: when a camera goes offline, techs trace the blue cable to the correct patch panel row without tone-generator probing. UTP construction suffices for most enterprise environments where EMI sources (motor controllers, fluorescent ballasts, radio transmitters) are 3+ feet away; if the site has heavy electrical interference or requires shielded cable per spec, consider Panduit's F/UTP or S/FTP plenum alternatives. The Pan-Net™ sub-brand signals Panduit's focus on premise-wiring applications distinct from industrial or outdoor-rated copper products.
The PUP6C04BU-WZ ships in a pull-box carton (36,000 ft bulk quantity standard, 1000 ft retail spool available) with length markings every two feet for precise cut planning. Panduit's manufacturing process includes swept-frequency testing to verify return loss, insertion loss, and NEXT/FEXT margins exceed Category 6 channel requirements when terminated with Panduit's Mini-Com® or Pan-Plug™ connectors. The cable carries UL listing for CMP applications and complies with RoHS restrictions on lead and halogenated flame retardants. Pair this cable with Panduit's DP6 or CJ6 keystone jacks and use a cable certifier (Fluke DSX-5000, VIAVI OneExpert) to document that installed channels meet Gigabit Ethernet specs—critical for warranty validation and customer acceptance testing on enterprise projects where uptime SLAs are contractual obligations.
