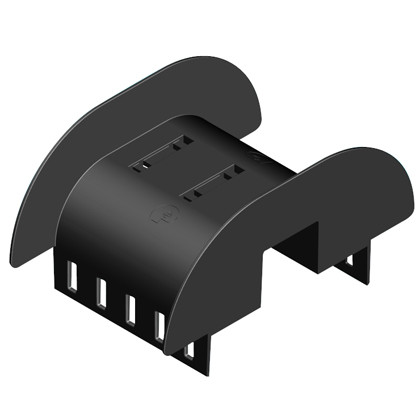

Panduit CMW2B Cable Management Double Waterfall Base

The Panduit CMW2B is a cable management waterfall base designed to maintain proper bend radius control when routing cables vertically off ladder rack rungs. Engineered for datacenter and IT infrastructure installations, this double-sided waterfall guide prevents cable damage by enforcing a minimum 1.75" (101.6mm) bend radius—critical for maintaining signal integrity and preventing jacket stress on high-performance copper and fiber runs. Mounts directly to standard ladder rack cross-sections using included cable ties, enabling clean vertical-to-horizontal transitions on either side of the rung.

Key Features

Double waterfall design supports cable routing off both sides of ladder rack rung

Maintains 1.75" (101.6mm) minimum bend radius vertically to prevent cable damage

Glass-filled nylon 6.6 construction for high strength and dimensional stability

Mounts to standard ladder rack rungs with cable ties (included)

8.4" length × 5.48" width × 3.37" height fits typical datacenter rack spacing

UL94-V0 flame rating meets stringent plenum and above-floor safety standards

RoHS compliant for environmentally responsible installations

Black finish integrates cleanly with rack infrastructure

The CMW2B's glass-filled nylon 6.6 construction delivers the mechanical strength required for continuous cable loading while resisting deformation under weight. Unlike generic PVC or unfilled polymer bases, the glass-fiber reinforcement maintains the engineered 1.75" radius under tension—essential when managing heavy bundles of Cat6A, fiber trunk cables, or multi-conductor power feeds. The material's low coefficient of friction reduces jacket abrasion during cable movement, and its UL94-V0 flame classification ensures compliance with NEC Article 300 requirements for cable support systems in commercial occupancies. The waterfall profile distributes load evenly across the curve, preventing the sharp-edge pinch points that cause jacket compression and long-term failures in structured cabling systems.

In datacenter and telecommunications room deployments, the CMW2B solves the common vertical drop-off challenge where cables transition from overhead ladder rack to below-floor conduit or wall-mounted termination points. The double-sided design supports symmetrical routing—left-side cables to one cabinet row, right-side to another—without requiring paired single-sided accessories. Installers mount the base to the ladder rung cross-section using the supplied cable ties, then dress cables over the curved guide before securing bundles with additional ties at the exit points. This approach is standard practice in hyperscale datacenter builds where maintaining manufacturer-specified bend radius across thousands of connections is non-negotiable for warranty compliance and long-term performance. The 8.4" length accommodates typical 12"–18" ladder rack widths, and the 3.37" height provides clearance for stacked or overlapping cable runs.

UL94-V0 flame rating and RoHS compliance make the CMW2B suitable for installations governed by IBC, NEC, and federal procurement standards. The V0 classification confirms the material self-extinguishes within 10 seconds of ignition and produces no flaming drips—critical for above-ceiling and plenum-rated pathway systems where fire propagation risk must be minimized. For integrators managing enterprise campus networks, colocation facilities, or government datacenter projects, this Panduit waterfall base provides a code-compliant, engineered solution that protects cable plant investment and ensures audit-ready documentation of bend radius management practices.
