Panduit CCPL2H135150-X Polymer Two-Hole Cable Cleat, 135-150mm, Pack of 10
Overview

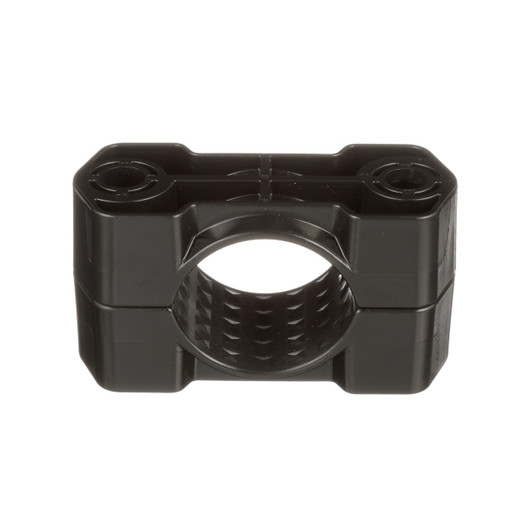

The Panduit CCPL2H135150-X is a two-hole polymer cable cleat designed for short-circuit protection in lower to medium fault-current environments. Rated and tested to IEC 61914:2015 at a verified 85.4kA peak fault current, this cleat is built for single cables with an outer diameter of 135–150mm (5.31–5.91 inches) and installs directly onto cable tray rungs using a dual M10 bolt pattern — no specialty hardware required beyond user-supplied fasteners. Sold in packs of 10, the CCPL2H135150-X (often searched as CCPL2H135150 X) suits medium-voltage cable tray runs in commercial and light-industrial environments where verified fault restraint is a specification requirement.
Key Features
- IEC 61914:2015 Certification, Third-Party Tested: Not self-certified — tested at a third-party laboratory to 85.4kA peak fault current. If your project spec calls out IEC 61914 compliance, this cleat ships with documentation to back it up on the submittal.
- 135–150mm Cable Diameter Compatibility: Designed specifically for single cables in the 5.31–5.91-inch OD range. If your cable falls outside this window, Panduit's range spans 38–165mm across 10 parts in the polymer cleat family — size selection is critical; don't force a cleat onto an out-of-range cable.
- Glass-Filled Nylon Construction: The glass-filled nylon body resists deformation under fault loads without the weight penalty of metallic cleats. Rounded edges directly protect cable insulation from abrasion during installation and under sustained clamping load.
- Dual M10 Bolt Fixing: Bolts directly to cable tray rungs via two fixing holes using standard M10 hardware (user-supplied). No proprietary bracket or adapter — straightforward to torque to spec during installation.
- Operating Temperature -40°C to +60°C (-40°F to +140°F): Covers standard indoor and outdoor electrical infrastructure environments. The nylon compound maintains mechanical properties across this range without embrittlement at the cold end or excessive creep at the warm end.
- Internal Ridges Prevent Cable Migration: Molded ridges grip the cable jacket and resist axial movement under repeated fault events or vibration — relevant in switchgear rooms or substations with frequent transient load cycles.
- Pack of 10: Priced and packaged for project-quantity procurement. A single cable tray run typically requires cleats at defined intervals per IEC 61914; buying in packs of 10 aligns with typical run-length calculations.
Integration and Compatibility
The CCPL2H135150-X installs on standard cable tray rungs without modification. M10 bolt holes are pre-formed in the cleat body; hardware is not included and must be sourced separately. The cleat accommodates a single cable per position — for multi-cable arrangements, consult Panduit's cable cleat selection guide or use a trefoil configuration with appropriately rated individual cleats. The broader Panduit polymer cleat range covers 38–165mm in 10 sizes, so adjacent sizes are available when cable OD is near the boundary of this cleat's range.
What's in the Box
- 10x Panduit CCPL2H135150-X Polymer Two-Hole Cable Cleats
Frequently Asked Questions
Q: What cable diameter does the CCPL2H135150-X accommodate?
A: The CCPL2H135150-X is rated for a single cable with an outer diameter of 135–150mm (5.31–5.91 inches). It is not suitable for cables outside this range.
Q: What fault current rating has this cleat been tested to?
A: The CCPL2H135150-X has been tested to 85.4kA peak fault current at a third-party laboratory in accordance with IEC 61914:2015.
Q: What fasteners are required to install the CCPL2H135150-X?
A: Two M10 bolts are required per cleat. These are user-supplied and not included in the package.
Q: What is the operating temperature range for the CCPL2H135150-X?
A: The cleat is rated for continuous operation from -40°C to +60°C (-40°F to +140°F), covering most indoor and outdoor electrical infrastructure applications.
Q: How many cleats are included in one package?
A: Each order of the CCPL2H135150-X includes 10 cleats.
Q: Is the CCPL2H135150-X suitable for harsh or corrosive outdoor environments?
A: The product description positions this cleat for lower to medium fault environments and less harsh conditions. For aggressive chemical or marine environments, consult Panduit for an appropriately rated alternative in their cable cleat line.
The CCPL2H135150-X sits in a specific and often under-specified niche: large-diameter single-cable restraint in environments where IEC 61914:2015 compliance is required but peak fault exposure is in the lower-to-medium range. The 85.4kA third-party test rating gives the specifying engineer a concrete number to put on the submittal — not a manufacturer claim, a lab result.
Technical Highlights:
- 85.4kA Peak Fault Test: Third-party verified under IEC 61914:2015. Puts a hard ceiling on what fault scenarios this cleat is rated for — appropriate for commercial distribution systems, not utility-scale high-fault-current switchgear where a higher-rated metallic cleat is warranted.
- Glass-Filled Nylon, -40°C to +60°C: The glass fill gives the polymer enough stiffness to resist deformation under fault impulse loads without adding the installation weight or corrosion concerns of steel. The -40°C lower limit is genuinely useful for outdoor cable runs in northern climates.
- Dual M10 Bolt Pattern, Direct-to-Rung: No intermediate bracket means fewer failure points and a faster install cycle on long tray runs. The M10 bolt size is standard stock at any electrical supply house — no waiting on specialty hardware.
Deployment Considerations:
- This cleat handles a single cable at 135–150mm OD. If your cable OD is even slightly outside that window, you need a different size — Panduit's polymer range covers 38–165mm across 10 parts, so the adjacent size is almost certainly available. Don't estimate; measure the actual cable OD under the jacket.
- M10 bolts are user-supplied and not in the pack. Account for fastener procurement in your BOM, and verify tray rung thickness accommodates standard M10 hex bolt clearance before ordering.
The CCPL2H135150-X is the right call for commercial mid-rise or industrial facility cable tray runs carrying large-diameter MV feeders or service entrance conductors where the project spec explicitly requires IEC 61914 documentation and fault exposure is within the lower-to-medium range. For utility-adjacent or high-fault-current bus systems, step up to a metallic cleat with a higher peak rating.
