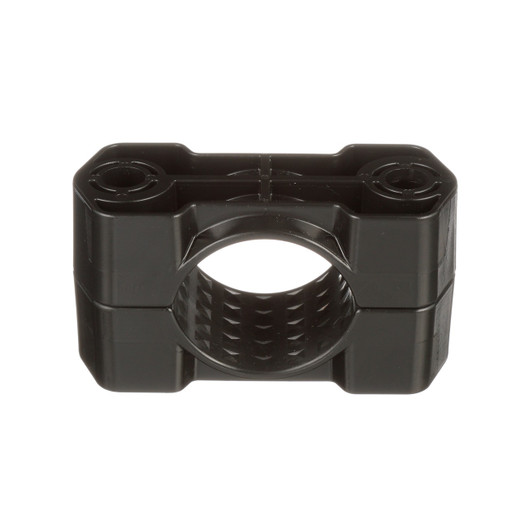

Panduit CCPL2H109120-X Two-Hole Polymer Cable Cleat for 109-120mm Cables

The Panduit CCPL2H109120-X is a glass-filled nylon cable cleat engineered for short-circuit protection of single power cables with diameters between 109mm and 120mm. Designed for direct mounting to cable tray rungs, this two-hole cleat meets IEC 61914:2015 certification and has been third-party tested to withstand peak fault currents up to 85.4kA. It's the solution for datacenter, industrial, and commercial electrical installations where medium-voltage cable runs require code-compliant mechanical retention during fault events.

Key Features

IEC 61914:2015 certified for short-circuit withstand performance

Tested to 85.4kA peak fault current in third-party lab

Accommodates single cable diameters from 109mm to 120mm

Glass-filled nylon construction for impact resistance and dimensional stability

Two-hole mounting pattern for M10 bolts (user-supplied)

Rounded internal edges protect cable insulation from abrasion

Grooved cable saddle maintains cable position under dynamic loads

Operating temperature range: -40°C to +60°C

Overall dimensions: 180mm W × 133mm H (7.1" × 5.24")

10-piece package quantity

Short-circuit events generate enormous electromagnetic forces that can cause unsecured cables to whip violently, damaging adjacent equipment and creating secondary faults. The CCPL2H109120-X provides mechanical restraint that keeps cables in place during fault conditions up to 85.4kA peak, preventing conductor movement that could escalate a single fault into a cascade failure. The glass-filled nylon body maintains structural integrity across a wide temperature range, making it suitable for indoor electrical rooms, outdoor substations, and industrial environments where temperature swings are common. The rounded cable contact surfaces distribute clamping force evenly, preventing insulation damage during installation or thermal expansion cycles, while the grooved saddle resists cable creep under sustained mechanical or thermal loads.

Installation is straightforward: mount the cleat directly to the cable tray rung using two M10 bolts (not included) through the pre-molded holes, position the cable in the saddle, and secure the top half. The 109-120mm range covers common medium-voltage cable sizes used in 15kV-35kV distribution systems. For installations requiring IEC 61914 compliance—such as utility substations, data center electrical feeds, or industrial plants with high available fault current—this cleat provides documented third-party test results that satisfy AHJ requirements. The 10-piece package supports multi-span cable runs where cleats are typically spaced 1-2 meters apart depending on fault current magnitude and cable weight.

Panduit's cable cleat line spans 38mm to 165mm cable diameters across ten standard sizes, all manufactured to the same IEC 61914:2015 standard and available with short lead times. The CCPL2H109120-X sits at the upper end of the single-cable range, designed specifically for large-diameter power feeders where fault-current withstand is non-negotiable. Black nylon construction provides UV resistance for outdoor or skylight-exposed installations, and the grooved saddle design is proven in utility-scale projects where cable retention under fault is a life-safety requirement.
