Panduit CBOT24K Tak-Ty Cable Organizing Kit

Panduit CBOT24K Tak-Ty Cable Organizing Kit

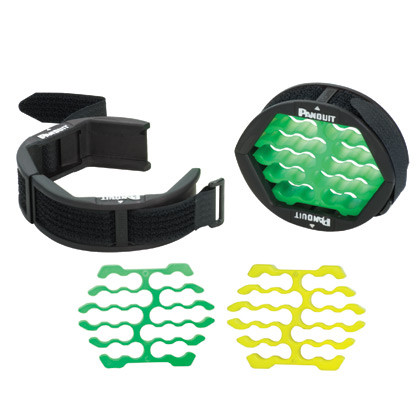

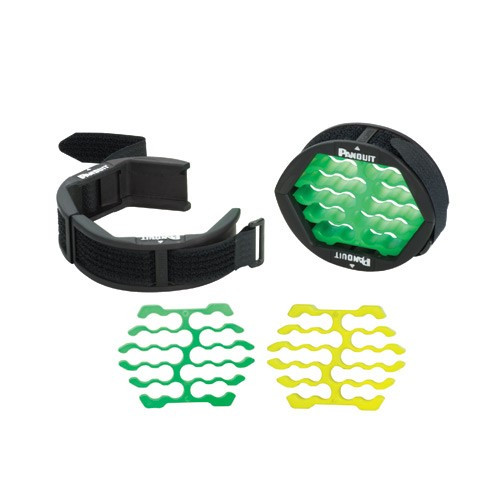

The Panduit CBOT24K Tak-Ty Cable Organizing Kit solves the patch-panel strain-relief problem that degrades termination quality on high-density network runs. This kit includes a black jacket cover with integrated hook-and-loop fastener and two color-coded inserts—fluorescent green for 0.180"-0.248" (4.57-6.30mm) outer diameter cables, fluorescent yellow for 0.230"-0.310" (5.84-7.87mm) cables. The dual-insert design lets you organize mixed Cat5e, Cat6, and Cat6A deployments without swapping hardware. Integrators use this on server-room patch panels, IDF closets, and A/V racks where bundled runs exit to switches or NVRs. The hook-and-loop closure adjusts tension without cutting into jacket insulation, and the color-coding speeds up moves/adds/changes when you're tracing cables under time pressure.

Key Features

• Two-insert system: green insert handles 4.57-6.30mm OD (Cat5e/Cat6), yellow insert handles 5.84-7.87mm OD (enhanced Cat6/Cat6A and shielded)
• Hook-and-loop jacket cover adjusts bundle tension without pinching or deforming cable jackets
• Fluorescent color-coding for fast visual diameter identification during cable pulls and maintenance
• Compatible with Panduit TX5500 Cat5e UTP, TX6000 Cat6 UTP, TX6500 Enhanced Cat6, TX6A 10Gig Cat6A, and all shielded twisted-pair cables
• Black jacket finish matches professional rack and panel installations
• 2.96" height × 3.4" width footprint fits standard patch-panel cable-management bars and horizontal wire managers
• Single-kit packaging (1 jacket + 2 inserts per package)

The two-insert approach addresses the practical problem of mixed-gauge network deployments. The fluorescent green insert spans the 4.57mm to 6.30mm outer-diameter range—this catches standard Cat5e UTP (typically 5.0-5.3mm OD) and most Cat6 UTP cables (5.5-6.0mm OD). The fluorescent yellow insert covers 5.84mm to 7.87mm, which accommodates enhanced Cat6 cables with thicker jackets, Cat6A cables (often 7.0-7.5mm OD for 10GBASE-T runs), and any shielded twisted-pair cable where the foil or braid shield adds to the outer diameter. You select the insert based on your cable spec, snap it into the jacket, bundle your cables, and close the hook-and-loop fastener. The fluorescent colors aren't just cosmetic—when you're troubleshooting in a poorly lit IDF or tracing a circuit during after-hours maintenance, that bright green or yellow insert tells you immediately whether you're looking at a Cat5e/Cat6 bundle or a Cat6A/shielded bundle. The jacket itself is molded from durable polymer with a secure hook-and-loop closure strip; it doesn't rely on cable ties that can over-torque and crush the jacket or create stress points that fail TIA-568 bend-radius requirements.

Integrators deploy the CBOT24K in three main scenarios: horizontal patch-panel cable management on network racks, vertical wire-manager runs in server cabinets, and A/V rack bundling where you're consolidating HDMI-over-IP endpoints or PoE camera uplinks. At the patch panel, you route your bundle from the rear cable tray through the panel's cable-management fingers, apply the Tak-Ty organizer at the exit point, and secure it to the horizontal manager—this keeps the bundle from sagging under its own weight and prevents individual cables from pulling away from their terminations when someone tugs on a patch cord at the front. In IDF closets with floor-to-ceiling vertical managers, the kit organizes bundles at each shelf or U-space breakout, maintaining the separation between power and data that NEC Article 800 and TIA-569 recommend. For A/V racks, the organizer groups your camera uplink runs or distributed-antenna cables, so when you need to add a camera or swap a cable during a site expansion, you're not fighting through a rat's nest—you release one hook-and-loop closure, make your change, and close it again.

The CBOT24K sits at the intersection of TIA-568 compliance and real-world install efficiency. The dual-insert design eliminates the "wrong size" problem that wastes time on jobsites—one kit handles the full Cat5e-to-Cat6A diameter range, so you carry fewer SKUs in your truck. The hook-and-loop closure is field-adjustable, which matters when you're managing bundles that grow over time (adding cameras to an NVR rack, expanding switch ports in a growing office). The fluorescent color-coding turns cable tracing from a 10-minute flashlight hunt into a 30-second visual check. And because the jacket doesn't compress the bundle like a cable tie, you avoid the jacket deformation and performance degradation that shows up as intermittent link errors or failed certification sweeps.
