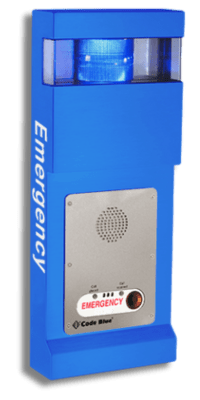

Code Blue CB2AP00557 Audio Paging Amplifier Module
The Code Blue CB2AP00557 is a replacement audio paging amplifier designed for access control and building communication systems. This amplifier module supports flexible 12–24V DC power input, enabling seamless integration across diverse installation configurations and existing CB2 infrastructure. The CB2AP00557 serves as a drop-in replacement component for CB2 series access points where reliable amplification of paging, announcement, and emergency notification signals is mission-critical.
Key Features
- Flexible DC Power Input: 12–24V DC operation. Accommodates both low-voltage DC supplies and standard access control power infrastructures without requiring separate converters.
- Direct CB2 Series Compatibility: Engineering replacement for Code Blue CB2 access point systems. Maintains electrical and mechanical fit without field modifications.
- Audio Signal Amplification: Dedicated paging amplifier module. Ensures consistent signal level for announcement and alert distribution across multi-zone systems.
- Modular Design: Standalone component architecture simplifies diagnostics and field replacement. No system shutdown required for module swap-out on properly designed redundant circuits.
- Integration Ready: Works with Code Blue CB2 control logic and third-party audio distribution networks operating on standard DC voltage rails.
- Compact Form Factor: Space-efficient module design fits within standard access control enclosures and DIN rail assemblies.
Audio paging in access control systems bridges operational efficiency and safety compliance. This amplifier enables building managers to deliver real-time announcements—occupancy alerts, emergency evacuation signals, visitor notifications—directly through the access point infrastructure without separate speaker systems. The CB2AP00557's wide voltage tolerance (12–24V DC) eliminates the need for dedicated power supplies, reducing bill-of-materials cost and simplifying maintenance schedules across multi-building campuses where DC supplies vary by age and installation vintage.
The amplifier is engineered as a production component within the Code Blue CB2 ecosystem, where it handles signal conditioning and power delivery to integrated or external speaker loads. In environments where access control and life-safety paging share infrastructure—hospitals, office complexes, data centers, manufacturing facilities—this module ensures that announcement clarity and reliability remain independent of other CB2 functions (credential processing, door release, reporting). On multi-zone systems, the amplifier supports daisy-chaining or parallel audio feeds, allowing a single announcement to distribute across dozens of access points in a coordinated broadcast.
Total cost of ownership is minimized through direct component replacement: when an existing CB2AP00557 fails, the swap is a 10-minute field operation requiring only a screwdriver and the replacement module. No firmware updates, no VMS integration re-work, no speaker recalibration. This modularity is particularly valuable in rolling-refresh deployments where legacy access control systems remain in service alongside new builds.
The CB2AP00557 is a hardware-only component with no firmware, no cloud connectivity, and no network dependencies. It operates as a pure analog amplifier within the Code Blue control layer. For integrators standardizing on Code Blue CB2 access infrastructure, component-level replacement availability (amplifier, power supply, control module) ensures long-term serviceability and parts availability without vendor lock-in to proprietary control units.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've been sourcing and installing Code Blue CB2 access systems across corporate headquarters, industrial facilities, and healthcare networks for the better part of a decade. The CB2AP00557 is not a glamorous component—it's a straightforward audio amplifier module—but it's become one of the most practical field replacements we encounter. Here's why: access control systems age differently than network infrastructure. A CB2 control head installed in 2014 may still be fully operational, but if the integrated speaker amp fails, you're suddenly unable to make announcements, unlock procedures stall, and facility managers lose a critical communication channel. Rather than condemn the entire access point, the CB2AP00557 lets you replace just the amp and get back to full function in minutes. We've found the 12–24V DC flexibility especially valuable in multi-tenant buildings where different floors or wings were retrofitted at different times with varying DC power standards. The amp doesn't care whether it's fed from a 24V PSU in the security office or a 12V backup battery circuit—it just works. The absence of any network intelligence in this module is actually a feature in industrial and utility settings where air-gapped control systems are preferred for security and reliability reasons.
Technical Highlights:
- 12–24V DC Operating Range: Wide input voltage tolerance means a single stock of replacement modules covers legacy and current installations without field testing or supply juggling. We typically size one spare per four access points on a campus.
- Analog Amplification Architecture: No DSP, no firmware, no software vulnerabilities. The amplifier operates as a passive component within the CB2 logic chain. Failure modes are predictable (open circuit or short), not firmware-induced dropout.
- Direct Mechanical Fit: CB2 enclosure mounting and connector pinouts are fixed. This is not a universal audio amp; it's engineered specifically for CB2 geometry, so field installation is plug-and-play without adapters or rework.
- Low Inventory Complexity: A single SKU (CB2AP00557) covers the entire CB2 product line's amplification needs. No sub-variants by voltage, no configuration jumpers, no compatibility matrix to cross-reference.
Deployment Considerations:
- Verify the installed CB2 control head supports external amplifier module before ordering—older revision CB2 units may have integrated amp designs that cannot be replaced with this module. Consult the CB2 service manual or contact Code Blue support to confirm module compatibility with your specific access point serial range.
- Audio load impedance and speaker wattage ratings are determined by the CB2 control logic, not the amplifier module alone. Do not assume this amp can drive arbitrary speaker arrays; confirm the load design against Code Blue CB2 audio distribution documentation to avoid thermal stress and component failure.
- Power supply quality matters. Brownout or noisy DC input degrades audio clarity and can trigger nuisance failures in older installations. If replacing the amp as part of a troubleshooting cycle, inspect the 12–24V supply for ripple and noise with an oscilloscope—a failing PSU will kill a new amp within weeks.
- Module replacement does not require system downtime if you have a redundant access point or temporary communication device (intercom, mobile unit) staged during the swap. Plan the replacement during off-hours or coordinate with facility management to minimize announcement blackout duration.
The CB2AP00557 is the right choice if you operate Code Blue CB2 access systems and need a direct component replacement for amplifier failure or end-of-life service. For integrators managing large CB2 deployments, keeping 2–3 spares on hand eliminates emergency procurement delays and field downtime. Learn more about Code Blue access control ecosystem in the Code Blue catalog.
