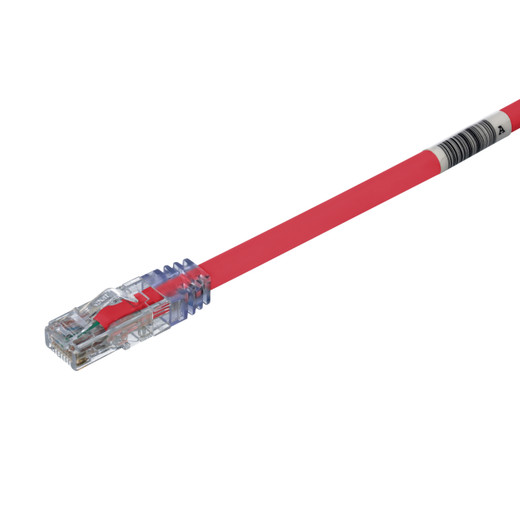

Panduit UTP6AX9RD 10Gig Cat 6A Patch Cord 9ft Red

Panduit UTP6AX9RD Cat 6A 10Gig Patch Cord

The Panduit UTP6AX9RD delivers 10GBASE-T Ethernet performance in a 9-foot Cat 6A UTP patch cord engineered for high-density data center and server virtualization deployments. This TX6A 10Gig series cord uses 24 AWG solid copper conductors in a U/UTP construction with internal foil tape shielding that limits alien crosstalk between adjacent cables—critical when running parallel 10 Gb/s links in tight bundle configurations. The 0.250" (6.4 mm) diameter and red jacket simplify identification in structured cabling environments, while the tangle-free latch design prevents snags during moves, adds, and changes, reducing the time installers spend wrestling with stuck connectors in crowded patch panels.

Key Features

• 10 Gb/s transmission from 1 to 500 MHz, exceeds ANSI/TIA-568.2-D Cat 6A and ISO 11801 Class EA
• 24 AWG solid copper conductors with U/UTP construction and internal foil tape for alien crosstalk suppression
• Tangle-free modular plug latch prevents snags and ensures fast release in high-density patch fields
• RapidID pre-installed barcodes enable one-scan port mapping with Panduit RapidID software
• Supports IEEE 802.3af/at PoE and 802.3bt Type 3/Type 4 (up to 100W) for powered devices
• Compatible with T568A and T568B wiring schemes, UL 1863 and CAN/CSA-C22.2 listed

Solid-conductor patch cords like the UTP6AX9RD serve a specific niche in structured cabling: permanent or semi-permanent links where flexibility is less important than long-term electrical stability. Unlike stranded-conductor cords designed for frequent flexing, solid 24 AWG copper maintains tighter impedance tolerances and lower insertion loss over the 1–500 MHz spectrum, making this cord ideal for backbone aggregation, server-to-switch uplinks, or data center I/O consolidation where cables are dressed once and left in place. The internal foil tape construction addresses alien crosstalk—the interference that occurs when multiple Cat 6A cables run in parallel bundles—without the bulk and termination complexity of fully shielded F/UTP or S/FTP designs. For integrators running dozens of 10 Gb/s links in a single cable tray, this balance of performance and manageability is the difference between a clean installation and a troubleshooting nightmare.

The tangle-free latch is a small detail with outsized impact in real-world deployments. Traditional RJ45 latches catch on adjacent cables when you pull a cord from a dense patch panel, forcing you to either yank hard (risking damage) or spend time carefully threading the plug out. Panduit's redesigned latch geometry reduces the snag profile, so patches release cleanly even in 48-port panels filled to capacity. Combine that with the RapidID barcode system—each cord ships with a scannable label that links the physical cable to your port database—and you cut the time spent on MAC (moves, adds, changes) work by measurable margins. For data center techs running dozens of changes per shift, those seconds add up to hours saved per month.

The UTP6AX9RD is PoE-ready across the full IEEE 802.3 power spectrum: 15.4W (af), 30W (at), 60W (bt Type 3), and 100W (bt Type 4). This headroom matters for integrators deploying high-power IP cameras, PTZ controllers, access points, or LED lighting over a single cable run. The solid copper conductors handle the DC resistance requirements for 100W delivery without the voltage drop issues that plague under-spec patch cords, and the Cat 6A frequency range ensures you can push PoE and 10 Gb/s data simultaneously without crosstalk-induced packet loss. UL 1863 and CAN/CSA-C22.2 listings confirm the cord meets North American safety standards for in-wall and plenum-adjacent use (CM rating for general-purpose horizontal runs; consult local code for plenum or riser requirements). RoHS compliance keeps you clear of hazardous-substance restrictions in EU and California installations.

This cord ships as a single unit (carton quantity: 10 per box for volume orders). The 9-foot (2.74 m) length fits the majority of rack-to-patch-panel or switch-to-server scenarios without excess slack that invites cable-management headaches. For integrators standardizing on Panduit's TX6A infrastructure—jacks, panels, and cords from a single performance-matched family—the UTP6AX9RD is the logical patch-cord choice for 10 Gb/s Ethernet, parallel processing, and high-speed computing links where solid-conductor stability and alien-crosstalk control directly impact uptime and throughput.
