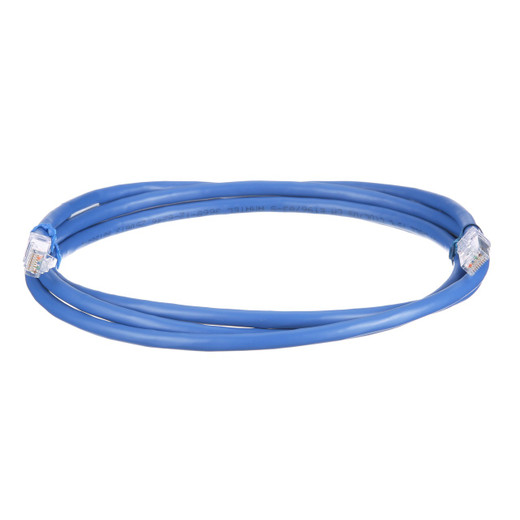

Panduit UTP6AX9MBU 9m Cat 6A UTP Patch Cord

Panduit UTP6AX9MBU TX6A 10Gig Cat 6A UTP Patch Cord

The Panduit UTP6AX9MBU delivers 10 Gigabit Ethernet performance in a 9-meter (29.5 ft) blue Cat 6A UTP patch cord engineered for high-density datacenter and surveillance infrastructure. Built with 24 AWG solid conductor cable and high-performance RJ45 modular plugs, this TX6A patch cord exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA requirements while supporting full PoE++ (802.3bt type 3 and 4) power delivery. The tangle-free latch design and pre-installed RapidID barcoding streamline moves, adds, and changes in mission-critical network environments.

Key Features

• 10Gig Performance with Alien Crosstalk Control: Solid foil tape construction ensures 10 Gb/s transmission by limiting alien crosstalk interference in high-density bundle environments
• Tangle-Free Latch Design: Snag-proof release mechanism speeds MACs (moves, adds, changes) and prevents connector damage during cable management
• RapidID Barcode Integration: Pre-installed barcodes enable automated port mapping and documentation using Panduit's RapidID software platform
• PoE++ Compatible: Rated for IEEE 802.3bt type 3 (60W) and type 4 (90W) power delivery, plus 802.3af/at legacy PoE devices
• 24 AWG Solid Conductor: Permanent-link-grade solid copper conductors provide superior transmission performance over stranded alternatives
• Exceeds TIA-568.2-D & ISO Class EA: Certified to exceed all Category 6A and Class EA standards with 2500-cycle connector durability rating

The UTP6AX9MBU uses 24 AWG solid conductor U/UTP (unshielded twisted pair) construction with a 0.250-inch (6.4mm) overall diameter optimized for high-density patching in datacenter environments. Unlike stranded patch cords designed for workstation flexibility, the solid conductor design provides superior insertion loss and return loss characteristics critical for permanent link certification to TIA-568.2-D Category 6A performance. The integrated solid foil tape within the cable construction mitigates alien crosstalk—the electromagnetic interference between adjacent cables in high-density bundles—ensuring full 10GBASE-T throughput even when dozens of patch cords run parallel in cable management systems. The high-performance modular plugs feature gold-plated contacts rated for 2500 mating cycles, exceeding the IEC 60603-7 standard and providing long-term reliability in production networks where frequent repatching occurs. The CM (Communications Multipurpose Cable) flammability rating meets NEC Article 800 requirements for general horizontal cabling in commercial buildings.

This 9-meter length serves mid-range datacenter row-to-rack connections, cross-connect field terminations, and surveillance NVR-to-switch uplinks where standard 3-meter cords fall short. In IP surveillance deployments, the UTP6AX9MBU provides the backbone infrastructure connecting PoE++ switches to NVRs, supporting multi-channel 4K camera streams over 10 Gigabit uplinks while simultaneously delivering up to 90 watts per port for high-power devices like PTZ cameras with built-in heaters or illuminators. The RapidID barcoding system integrates with Panduit's port mapping software to automatically document every connection during installation—scan the barcode at each end, and the software generates as-built documentation and enables rapid troubleshooting when ports need identification months later. The tangle-free latch design proves critical in confined spaces; the reinforced strain relief prevents snags on adjacent cables during insertion and extraction, eliminating the frustration of broken latch tabs that plague cheaper patch cords in dense patch panel environments.

The UTP6AX9MBU carries UL 1863 listing and RoHS compliance, meeting procurement requirements for federal, healthcare, and enterprise installations where certified components are mandatory. With full compliance to ANSI/TIA-1096-A (formerly FCC Part 68) and IEEE 802.3bt type 4 PoE specifications, this patch cord eliminates compatibility uncertainties in mixed-vendor environments. Panduit's TX6A platform represents the de facto standard for mission-critical 10 Gigabit infrastructure where alien crosstalk margins, connector durability, and long-term transmission performance cannot be compromised by commodity cabling components.
