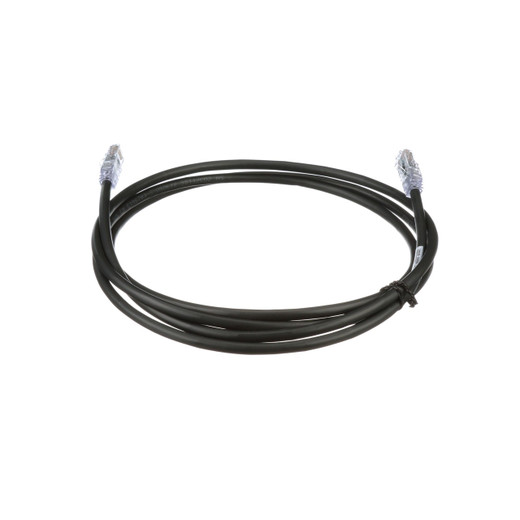

Panduit UTP6AX6MBL Cat 6A 6M Patch Cord Black

Panduit UTP6AX6MBL TX6A 10Gig Cat 6A UTP Patch Cord, 6-Meter, Black

Datacenter and structured-cabling deployments demand patch cords that deliver consistent 10 Gb/s throughput without alien crosstalk interference, especially in high-density bundled environments. The Panduit UTP6AX6MBL is a 6-meter (19.7 ft) Cat 6A unshielded twisted-pair patch cord built with 24 AWG solid conductors and a 6.4 mm diameter jacket. Its solid foil tape limits alien crosstalk between adjacent cables, ensuring full 10GBASE-T performance over the rated distance. Pre-installed RapidID barcodes enable fast port mapping and documentation using Panduit's RapidID software, eliminating manual label creation during moves, adds, and changes. The tangle-free latch design prevents snags during cable pulls and ensures quick disconnects, reducing install time and strain on RJ45 ports.

Key Features

• Cat 6A performance exceeding ANSI/TIA-568.2-D and ISO 11801 Class EA requirements for 10 Gb/s Ethernet
• 24 AWG solid conductor construction with U/UTP (unshielded twisted pair) cable design
• Solid foil tape limits alien crosstalk in high-density bundled installations
• RapidID pre-installed barcodes for automated port mapping and asset tracking
• Tangle-free latch prevents snags and streamlines MACs in tight patch-panel environments
• 6-meter (19.7 ft) length suitable for rack-to-rack or cross-aisle runs
• Black jacket for clean appearance in network closets and datacenters
• High-performance modular plugs on both ends rated for 2,500 insertion cycles
• PoE++ compatible: supports IEEE 802.3af, 802.3at, and 802.3bt type 3 and type 4
• CM flammability rating for general plenum and non-plenum applications

The UTP6AX6MBL's 24 AWG solid conductor design provides superior crosstalk margin compared to stranded alternatives, making it the preferred choice for permanent or semi-permanent horizontal links between patch panels and active equipment. The solid foil tape wrap around each pair mitigates alien crosstalk—a critical factor when dozens of Cat 6A cables run parallel in cable trays or ladder racks. This construction ensures the cable meets the stringent 500 MHz bandwidth requirement for 10GBASE-T without relying on bulky shielded designs that complicate termination and grounding. RapidID barcodes are factory-applied and integrate with Panduit's RapidID software suite, allowing technicians to scan cables during installation and auto-populate port records in DCIM or CMDB systems. This eliminates labeling errors and speeds up post-install documentation, a significant time-saver in multi-rack deployments.

The tangle-free latch is a strain-relief innovation: its low-profile boot protects the RJ45 clip from breakage during handling and prevents the cable from snagging on adjacent cords when pulled through dense bundles. In high-churn environments—datacenters with frequent server reconfigurations or IT closets supporting rapid tenant moves—this feature reduces the time spent on each MAC task and minimizes the risk of damaging adjacent connections. The 6-meter length is optimized for cross-rack runs in standard 42U cabinets or short cross-aisle links between rows, providing slack for service loops without excessive cable management overhead. PoE++ compatibility (802.3bt type 3 and type 4) means the cord supports up to 90W power delivery, suitable for high-wattage access points, PTZ cameras, and powered building-automation devices without requiring separate power drops.

Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specifications. Meets ANSI/TIA-1096-A requirements (formerly FCC Part 68) and IEC 60603-7 modular plug standards. UL 1863 listed and RoHS compliant. Rated for 2,500 insertion cycles per IEEE 802.3af/at/bt standards, ensuring reliable performance throughout the expected lifecycle of active network equipment. Covered by manufacturer warranty. Carton quantity: 10 cords per carton; package quantity: 1 cord per package.
