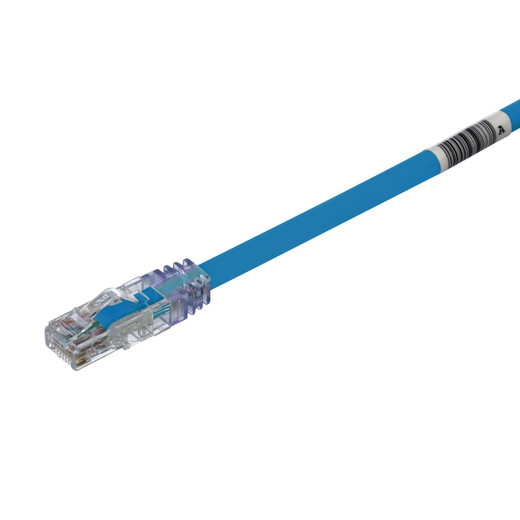

Panduit UTP6AX5BU 10Gig Cat 6A UTP Patch Cord 5 ft Blue

Panduit UTP6AX5BU Cat 6A UTP Patch Cord

The Panduit UTP6AX5BU is a 5-foot Cat 6A unshielded twisted pair patch cord engineered for 10GBASE-T Ethernet in data centers, high-density surveillance networks, and enterprise backbone aggregation. Built on 24 AWG solid copper conductors with a compact 0.250-inch diameter, this blue TX6A™ 10Gig cord delivers certified 10 Gb/s performance across all frequencies from 1 to 500 MHz while maintaining a slim profile for congested rack and cabinet installations. Factory-terminated with high-performance modular plugs and enabled with Panduit's RapidID barcoding system, it streamlines port documentation and reduces deployment time on moves, adds, and changes.

Key Features

• 10GBASE-T certified: exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies 1–500 MHz
• 24 AWG solid copper conductors in U/UTP construction with internal foil tape to limit alien crosstalk
• Compact 0.250" (6.4mm) diameter for high-density patching in 1U and 2U rack environments
• Tangle-free snagless latch design prevents hook snags on adjacent cables during extraction
• RapidID pre-installed barcodes enable software-driven port mapping and documentation
• Supports IEEE 802.3bt Type 3 and Type 4 PoE (up to 90W) for high-power surveillance cameras and wireless access points
• CM flame rating (UL 1863, CSA C22.2) for in-building horizontal and riser pathways
• Wired to support both T568A and T568B termination schemes
• RoHS compliant, UL listed (File E129886), meets ANSI/TIA-1096-A and IEC 60603-7

The UTP6AX5BU addresses the bandwidth ceiling that legacy Cat 5e and Cat 6 infrastructure imposes on modern IP surveillance and virtualized server environments. In security deployments, 4K and 8K cameras generate sustained streams well beyond 1 Gb/s—especially when multiple sensors share a single network port via an edge switch. This cord's certified 10 Gb/s throughput eliminates bottlenecks between PoE midspan injectors, access-layer switches, and aggregation uplinks, ensuring full-resolution recording without frame drops. The solid foil tape shield inside each twisted pair mitigates alien crosstalk (AXT) when cables run in parallel bundles, a critical consideration in densely packed ladder rack and overhead cable tray installations where dozens of patch cords converge at distribution panels. Solid 24 AWG conductors deliver lower DC loop resistance than stranded equivalents, improving PoE efficiency and extending the power budget for 802.3bt Type 4 (90W) endpoints—relevant for PTZ cameras with heaters, IR illuminators, and integrated analytics processors.

The tangle-free latch is injection-molded as part of the boot rather than a separate clip, eliminating the failure mode where traditional latches snap off under repeated insertion cycles or snag on adjacent cables during extraction. In practice, this means faster MAC (moves, adds, changes) work: technicians can pull a cord from a 48-port patch panel in under two seconds without disturbing neighboring connections. RapidID barcoding integrates with Panduit's port-mapping software to auto-generate as-built documentation—scan the cord at both ends, and the system logs the physical layer connection in the DCIM or CMDB. For large rollouts (hundred-plus drops), this cuts documentation labor by 70% compared to manual spreadsheet entry and reduces human error on port assignments. The 0.250-inch diameter is 20% slimmer than legacy Cat 6A shielded cords, allowing integrators to fit six cords side-by-side in a 1U horizontal cable manager without crushing the bend radius—important when you're patching 10G uplinks in a 42U rack with only 2U of management space per shelf.

This cord ships as a single unit in cartons of ten, simplifying inventory for staged deployments. It meets ANSI/TIA-1096-A (formerly FCC Part 68) for network protection and exceeds all Category 6A insertion loss, return loss, and near-end crosstalk margins across the full 500 MHz spectrum, ensuring compliance with TSB-184-A (alien crosstalk) requirements for bundled cable installations. The T568A/B compatibility allows you to maintain existing wiring schemes during phased upgrades—no need to re-terminate patch panels when migrating from Cat 6 to Cat 6A infrastructure. For integrators running parallel processing clusters, high-density video walls, or NVR arrays with 10G iSCSI storage, the UTP6AX5BU delivers the certified performance and physical durability required for multi-year production environments.
