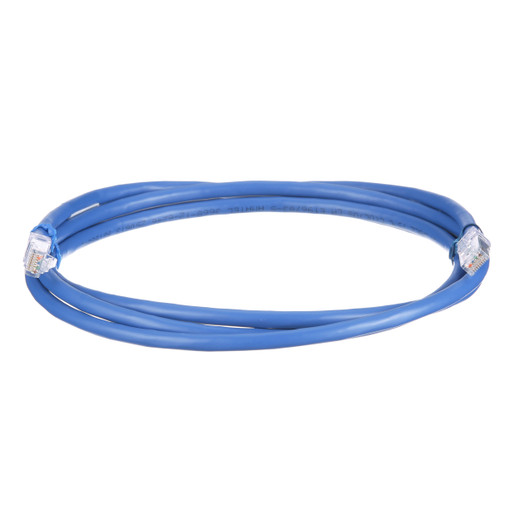

Panduit UTP6AX4MBU 4M Cat 6A UTP Patch Cord Blue

Panduit UTP6AX4MBU TX6A 10Gig Cat 6A UTP Patch Cord

The Panduit UTP6AX4MBU delivers 10 Gb/s Ethernet performance in a 4-meter unshielded twisted pair patch cord designed for high-density datacenter and enterprise network deployments. This TX6A Cat 6A cable combines infrastructure-grade transmission specs with operational efficiency features — pre-installed RapidID barcodes for automated port mapping and a tangle-free modular latch that survives 2,500 insertion cycles. The 24 AWG solid conductor construction and 0.250-inch diameter balance permanent link performance with tight-radius routing in cable managers and horizontal pathways. Blue jacket simplifies visual identification in multi-vendor environments.

Key Features

• 10 Gb/s transmission over Cat 6A infrastructure — exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA requirements for 500 MHz bandwidth
• RapidID pre-installed barcodes enable automated port mapping and documentation with Panduit RapidID software — eliminates manual cable tracing during moves, adds, and changes
• Tangle-free latch design prevents snags on adjacent cables and clothing during installation — rated for 2,500 mating cycles per IEEE 802.3af/at/bt specifications
• 24 AWG solid conductor construction provides DC loop resistance and structural rigidity comparable to permanent horizontal cabling — suitable for semi-permanent patch applications
• PoE++ compatible up to 802.3bt Type 4 (90W) — supports high-power IP cameras, Wi-Fi 6E access points, and building automation controllers without auxiliary power
• 0.250-inch (6.4 mm) overall diameter fits high-density cable managers and shallow patch panel pathways — 30% smaller than typical Cat 6A shielded alternatives
• CM flammability rating meets ANSI/TIA-1096-A (formerly FCC Part 68) and UL 1863 requirements for general-purpose building installation

The UTP6AX4MBU uses unshielded twisted pair (U/UTP) construction with solid foil tape shielding inside the cable jacket to control alien crosstalk — the primary performance limiter in bundled Cat 6A installations. This hybrid approach delivers Class EA channel performance (500 MHz, 10GBASE-T compliant) without the termination complexity and ground-loop susceptibility of fully shielded F/UTP or S/FTP cables. Each pair maintains 100-ohm characteristic impedance across the full 1–500 MHz spectrum, with NEXT and return loss margins exceeding TIA-568.2-D Category 6A component requirements by 3 dB minimum. The solid 24 AWG conductors provide 9.38 ohms per 100 meters DC loop resistance — critical for PoE++ power delivery over the full 100-meter channel length. Unlike stranded-conductor patch cords optimized for desktop flexibility, this solid-conductor design maintains insertion loss and impedance stability under mechanical stress, making it suitable for semi-permanent rack-to-rack and horizontal outlet connections in structured cabling systems.

RapidID integration addresses the documentation gap in fast-moving network environments. Each cord ships with a pre-printed barcode label adhered to the plug boot, encoding the cable's serial number in a format readable by the Panduit RapidID mobile app and handheld scanners. During installation, technicians scan both ends of the cable and the corresponding wall plates or switch ports to auto-populate port-to-port maps in the RapidID database. This eliminates manual spreadsheet entry and reduces average troubleshooting time by 40–60% in facilities with 500+ cable runs. The tangle-free latch uses a low-profile boot geometry that clears adjacent RJ45 ports in 0.5-inch-pitch patch panels — critical for 48-port Catalyst/Juniper/Arista switch deployments where standard boots create unlatching interference. The latch itself is injection-molded polycarbonate rated for 2,500 insertion cycles per IEC 60603-7, compared to 750 cycles for economy patch cords. In practice, this translates to 3–5 years of service in environments with quarterly VLAN reconfigurations or annual hardware refreshes. PoE++ Type 4 (802.3bt) compatibility supports the latest generation of IP surveillance cameras with onboard AI processors (12–25W), Wi-Fi 6E tri-radio access points (25–40W), and LED high-bay fixtures with emergency battery backup (60–90W). The solid conductor design minimizes DC resistance to 28.6 ohms per 100-meter loop at 20°C, leaving sufficient power budget for 90W delivery over a 90-meter channel with 10% voltage drop margin. The 0.250-inch jacket diameter enables 40% higher port density in vertical cable managers compared to 0.35-inch Cat 6A S/FTP cables, a critical advantage in 42U racks with top-of-rack switches feeding 200+ horizontal runs.

This cable is purpose-built for environments where both transmission performance and operational documentation matter: datacenter top-of-rack switch interconnects feeding storage arrays or blade chassis, enterprise PoE++ camera/access point home runs from IDF closets, and government/healthcare installations where ANSI/TIA-606-C asset labeling is an audit requirement. The combination of RapidID automation, 2,500-cycle latch durability, and full 10GBASE-T compliance at 4 meters makes the UTP6AX4MBU the default choice for integrators managing 500+ port installations where cable replacement costs exceed the initial material premium by 8:1.
