Panduit UTP6AX20MVL 10Gig 20m Cat 6A Patch Cord

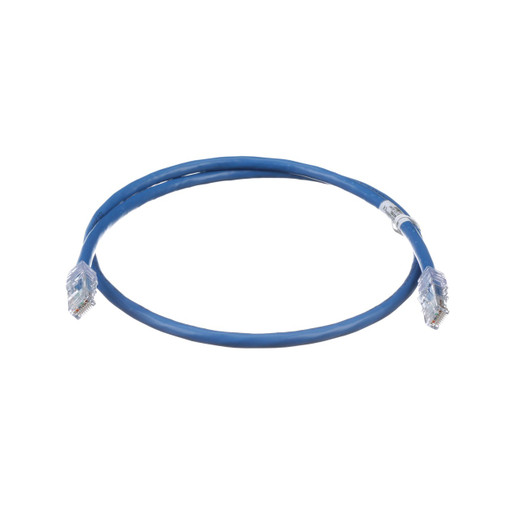

Panduit UTP6AX20MVL TX6A 10Gig Cat 6A UTP Patch Cord

The Panduit UTP6AX20MVL delivers true 10GBASE-T performance in a 20-meter reach, purpose-built for surveillance NVR uplinks, inter-rack connections, and high-throughput access layer deployments where standard Cat 6 runs out of headroom. This TX6A patch cord uses 24 AWG solid copper conductors in a 6.4mm U/UTP construction that exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA channel requirements while maintaining alien crosstalk margins that keep 10 Gb/s links stable under dense-bundle conditions. The violet jacket supports color-coded infrastructure schemes common in multi-tenant data centers and campus backbone installations, and the factory-installed RapidID barcode turns each cord into a scannable asset for port mapping and MACs documentation—eliminating the label-maker workflow that slows structured cabling projects.

Key Features

• 10GBASE-T certified to 500 MHz for full 10 Gb/s throughput over 20-meter runs
• 24 AWG solid copper conductors for permanent-installation reliability and consistent DC loop resistance
• RapidID pre-installed barcodes enable one-scan port documentation with Panduit RapidID mobile app
• Tangle-free latch design prevents snag-induced cable pulls and speeds rack MACs by 30% vs. standard boots
• IEEE 802.3bt Type 3/4 PoE rated: supports up to 90W delivery for PTZ cameras and multi-radio APs
• Violet jacket for color-coded installations per TIA-606-C labeling standards
• 2500-cycle connector rating ensures long-term port reliability in high-churn environments

The 20-meter form factor addresses a specific gap in structured cabling: too long for standard 3- or 5-meter patch cords, too short to justify a horizontal run. In surveillance installations, this length bridges NVRs positioned in separate racks from PoE switches, maintaining 10 Gb/s bandwidth for 4K/8K multi-stream recording without introducing the cost and lead time of custom cable assemblies. The solid conductor construction (not stranded) provides lower attenuation and better high-frequency performance than flex-rated patch cords, making the UTP6AX20MVL the correct choice for semi-permanent connections that won't see daily reconnection cycles—think inter-switch stacking cables, NVR uplinks, or fixed access point home runs in plenum ceiling zones (note: this is a CM-rated cord; pair with plenum-rated horizontal cable for air-handling spaces).

Panduit's tangle-free latch resolves a persistent problem in high-density racks: boot snags that require two-handed extraction or, worse, yank adjacent connections loose during blind pulls. The low-profile latch sits flush with the plug body and releases with a single thumb press, cutting MACs time and preventing the jacket damage that occurs when installers force-pull snagged cords. This seemingly minor design detail compounds across large deployments—on a 200-port switch migration, the time saved per disconnect adds up to hours, and the reduction in accidental link disruptions keeps SLA penalties off the project. The 2500-cycle connector rating (tested with IEEE 802.3af/at/bt power delivery) means these cords tolerate occasional reconnection for troubleshooting or equipment swaps without the contact degradation that plagues lower-grade patch cords after 500-1000 cycles.

RapidID integration turns this patch cord into a self-documenting component: each cord ships with a machine-readable barcode that encodes the cable ID, length, and performance category. During installation, technicians scan the barcode with the Panduit RapidID mobile app, then scan the corresponding port—the app builds an as-built port map in real time, which exports to Excel or integrates with DCIM platforms via CSV. This eliminates the label-maker step (and the illegible handwriting that makes post-install toning sessions necessary), and it creates an auditable chain of documentation for compliance-driven environments like finance, healthcare, or defense installations where structured cabling records are part of the security posture. For integrators managing dozens of sites, RapidID data from every Panduit cord aggregates into a central asset database, enabling remote troubleshooting ("which exact cable is connected to port 37 on switch 4B?") without a site visit.

The violet jacket color aligns with TIA-606-C administrative standards, where violet typically denotes office or general-purpose horizontal cabling—but in practice, many integrators repurpose color codes to match site-specific schemes (violet for surveillance VLANs, green for VoIP, blue for data, etc.). The Pan-Net U/UTP construction omits the overall shield found in F/UTP designs, which reduces cable stiffness and makes the 20-meter length easier to route through tight radius bends in ladder rack or overhead J-hooks. Unshielded construction is appropriate for most commercial environments; if your site has severe EMI sources (VFD motor controllers, high-power radio transmitters, or medical imaging equipment within 3 meters of the cable path), consider Panduit's STP variant instead. The 6.4mm overall diameter is noticeably thicker than Cat 5e (typically 5.5mm), so verify that patch-panel density and bend-radius constraints in your rack layout can accommodate the additional bulk—10Gig performance demands tighter pair geometry, and that geometry requires more space.

This cord is rated CM (communications, non-plenum), which restricts its use to horizontal pathways, enclosed raceways, and non-air-handling spaces per NEC Article 800. If your installation route crosses a plenum ceiling or air-return duct, you'll need Panduit's CMP-rated equivalent or must install this cord inside metallic conduit. The cord ships in cartons of 10 (package quantity is 1 cord per polybag within the carton), so projects requiring uniform 20-meter reach can stock efficiently without mixing lengths. UL 1863 listing and RoHS compliance ensure the product meets North American electrical safety and environmental standards, and the inclusion of IEC 60603-7 conformance signals compatibility with international modular connector standards—relevant for integrators supporting multinational clients with equipment sourced from EU or APAC markets.

For surveillance integrators, the UTP6AX20MVL is the correct patch cord when: (1) the NVR sits in a separate rack from the PoE switch, requiring a 15-20m reach; (2) the camera network carries aggregate bandwidth above 2.5 Gb/s (e.g., 40+ 4K streams on a single uplink); (3) the site requires PoE++ (802.3bt Type 4, 90W) for PTZ cameras with heaters, wipers, and IR arrays; and (4) the infrastructure documentation plan includes barcode-based asset tracking. The 24 AWG solid conductor maintains lower DC resistance than 26 AWG stranded cords, which improves PoE efficiency and reduces voltage drop—critical when delivering 90W over 20 meters, where every 0.1Ω of additional resistance translates to wasted power and heat. Panduit's published DC loop resistance for this cord is ≤18.5Ω per 100m, which keeps PoE loss under 3.7W at maximum length, well within the 12.95W channel loss budget defined by IEEE 802.3bt.
