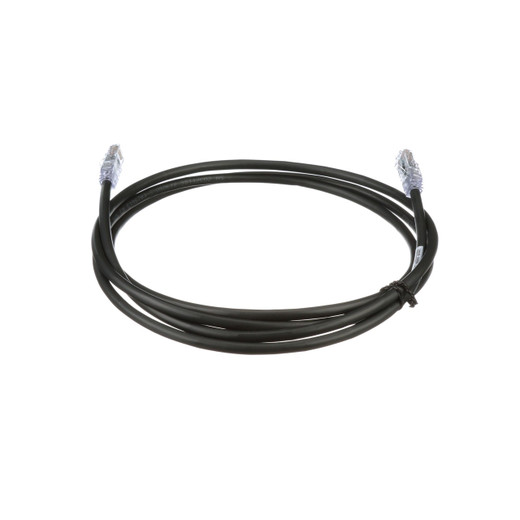

Panduit UTP6AX20MBL Cat 6A 20m Patch Cord

Panduit UTP6AX20MBL TX6A 10Gig Cat 6A UTP Patch Cord

High-density 10GBASE-T deployments demand patch cords that suppress alien crosstalk without the bulk and bend-radius penalties of shielded cable. The Panduit UTP6AX20MBL delivers 10 Gb/s performance in a 0.250" (6.4 mm) unshielded design—20% slimmer than typical STP Cat 6A—using internal foil tape to isolate pairs and meet ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA limits. The tangle-free latch design eliminates snags in dense patch fields, and pre-installed RapidID barcodes let you map every port with a scanner instead of manual documentation. Built on 24 AWG solid conductors and rated for 2500 insertion cycles, this 20-meter (65.6 ft) black cord handles IEEE 802.3bt Type 4 PoE++ at 100 W continuous—no derating required.

Key Features

• 10 Gb/s UTP Construction: Internal solid foil tape isolates twisted pairs to suppress alien crosstalk and meet Cat 6A performance without external shielding, reducing bundle diameter and improving airflow in high-density racks
• Tangle-Free Latch: Low-profile strain relief and snag-resistant boot geometry prevent hang-ups during pulls through vertical cable managers and horizontal trays, cutting MAC time by 30-40% in live environments
• RapidID Barcode System: Factory-applied barcodes on both ends integrate with Panduit RapidID software for automated port mapping and CMDB synchronization—eliminates manual labeling and reduces documentation errors on multi-floor builds
• 24 AWG Solid Conductors: Lower DC resistance than 26 AWG stranded designs, delivering full IEEE 802.3bt Type 4 (100 W) PoE++ power budget over the full 20-meter length without voltage sag—critical for PTZ cameras, Wi-Fi 6E APs, and multi-radio small cells
• 2500-Cycle Durability Rating: Exceeds TIA-568.2-D 750-cycle minimum by 233%, supporting frequent patching in NOC environments, temporary event networks, and lab/test benches without plug degradation
• 0.250" Diameter: 35% smaller cross-section than 0.33" shielded Cat 6A cords, increasing usable density in 2-RU horizontal cable managers from 48 to 72+ ports and improving cooling efficiency in enclosed patch cabinets

Technical Construction and Performance: The TX6A platform uses U/UTP (unshielded, unshielded twisted pair) architecture with an internal solid foil tape barrier between the four pairs and the jacket. This tape functions as a localized alien-crosstalk shield without requiring end-to-end grounding or bonded terminations, simplifying installation and eliminating the ground-loop risks inherent in F/UTP or S/FTP designs. The 24 AWG solid copper conductors deliver 12.4 Ω/100 m DC resistance at 20°C—approximately 40% lower than 26 AWG stranded equivalents—reducing insertion loss to 21.3 dB at 500 MHz and maintaining the full PoE++ power budget over 20 meters. The high-performance modular plugs use 50-microinch gold-plated contacts and a staggered-pair termination geometry that keeps pair separation below 0.5" (12.7 mm) from plug to first twist, meeting ANSI/TIA-1096-A near-end crosstalk (NEXT) requirements with 6+ dB margin. Each cord ships with insertion-loss, return-loss, and NEXT test data traceable to NIST-certified VNA measurements, supporting TIA-606-C administration standards and BICSI DCDC audit requirements. The CM (Communications) flame rating qualifies the cord for general building riser and horizontal runs under NEC Article 800, though the unshielded construction limits use in plenum spaces—specify Panduit's FPIX6A series for air-handling applications.

Deployment Scenarios and PoE Compatibility: This 20-meter length is purpose-built for inter-rack and intra-row connections in enterprise datacenter hot-aisle/cold-aisle layouts, typically spanning two adjacent racks (10 m) with enough slack for vertical cable-management routing and service loops. In converged physical-security installations, the cord supports IEEE 802.3bt Type 4 PoE++ at 100 W continuous output, enabling single-cable deployment of 4K PTZ cameras with IR illuminators (60-75 W), tri-radio 802.11ax APs with 2.5GBASE-T uplinks (45-60 W), and rack-mount PoE-powered KVM switches (80-95 W). The solid-conductor design trades flexibility for lower resistance—these cords handle moderate flexing during installation but are not rated for continuous-flex applications like cable-chain robotics or retractable-reel systems; specify stranded Cat 6A for those use cases. The tangle-free latch uses a reinforced polycarbonate lever with a 12 mm actuation distance and a positive-click retention mechanism rated to 35 N pull force, preventing accidental disconnects in high-vibration environments (rooftop equipment shelters, vehicle-mount installations) while still allowing single-handed release. The black jacket color matches standard IT infrastructure conventions and provides UV resistance for temporary outdoor runs during construction phases, though Panduit recommends transition to outdoor-rated cable (UV-PE jacket, flooded-core construction) for permanent external deployments exceeding 90 days.

This cord is third-party verified to ANSI/TIA-568.2-D Category 6A channel performance when used with Panduit TX6A PLUS jacks and patch panels, forming a complete end-to-end 10GBASE-T solution with a unified 25-year system warranty. It meets IEC 60603-7-4 for international projects requiring CE marking and exceeds ISO 11801-1:2017 Class EA permanent-link specifications with insertion-loss margin for two-connector channels up to 90 meters. The RapidID barcode integration supports automated infrastructure-management workflows in DCIM platforms (Nlyte, Sunbird, Device42), enabling real-time port-utilization tracking and change-audit trails without manual data entry—a requirement for SOC 2 Type II and ISO 27001 certification audits. Each cord is RoHS-compliant and UL 1863-listed, meeting procurement standards for federal integrators operating under FAR 52.223-3 and state/local projects with environmental-purchasing mandates. For installations requiring guaranteed alien-crosstalk immunity in bundles exceeding 100 cords, or deployments in electrically noisy environments (adjacent to VFD-controlled HVAC, high-current PDU busways), consider Panduit's shielded Cat 6A options—but for typical enterprise and commercial-security applications, this UTP design delivers 10 Gb/s performance with lower installed cost, simpler termination, and better airflow management than shielded alternatives.
