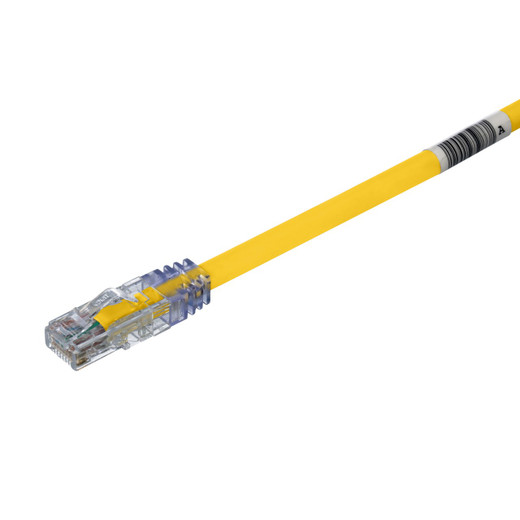

Panduit UTP6AX1YL Cat 6A 1ft Yellow Patch Cord

Panduit UTP6AX1YL Cat 6A UTP Patch Cord

The Panduit UTP6AX1YL delivers 10GBASE-T performance in a compact 1-foot form factor engineered for high-density patching in data centers, server racks, and top-of-rack switch deployments. Part of the TX6A 10Gig family, this Cat 6A patch cord uses 24 AWG solid copper conductors in a slim 6.4mm (0.250") diameter U/UTP construction, maintaining alien crosstalk suppression across all frequencies from 1 to 500 MHz. The yellow jacket provides instant visual identification in structured cabling environments where color-coding is part of your documentation standard. Factory-terminated modular plugs ensure consistent performance, and the integrated RapidID barcode eliminates manual documentation during installations and troubleshooting.

Key Features

• Cat 6A performance exceeding ANSI/TIA-568.2-D and ISO 11801 Class EA standards, certified for 10GBASE-T Ethernet at full 100-meter channel lengths
• 24 AWG solid copper conductors in U/UTP construction with foil tape shielding to limit alien crosstalk in bundled deployments
• Slim 6.4mm diameter profile reduces pathway congestion in high-density patch panels and switch ports
• Tangle-free latch design prevents snags during adds/moves/changes and ensures positive retention without catching on adjacent cables
• Pre-installed RapidID barcode integrates with Panduit's port mapping software for automated documentation and cable tracing
• Supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt Type 3/4 (PoE++) for up to 90W power delivery to endpoints
• Compatible with both T568A and T568B wiring schemes for cross-compatibility in mixed-standard environments
• CM flammability rating suitable for general building riser and horizontal runs
• UL 1863 and CSA C22.2 listed (UL File E129886), RoHS compliant

The 24 AWG solid conductor construction is Panduit's deliberate choice for short-run patching where insertion loss and return loss margins matter more than flexibility. Solid conductors maintain tighter impedance tolerances than stranded equivalents, critical when you're aggregating 10/25/40Gig uplinks or running 100-meter channels at the performance edge. The U/UTP architecture keeps the cable lightweight and easy to dress while the internal foil tape provides the alien crosstalk mitigation required under ANSI/TIA-568.2-D for bundled Cat 6A installations. Panduit's modular plugs are factory-terminated with controlled conductor untwist and strain relief, eliminating the field-termination variables that cause fluke test failures on marginal channels. The tangle-free latch uses a low-profile boot that shields the release tab from snagging on neighboring patch cords during high-density panel work, a small detail that saves minutes per cord when you're patching 200 ports in a cabinet refresh.

One-foot patch cords solve the top-of-rack switching problem where servers and switches share the same 42U cabinet and anything longer than 3 feet becomes cable spaghetti. In virtualized server environments running VMware or Hyper-V with 10Gig NICs, this length keeps the physical layer clean while supporting the full IEEE 802.3bt PoE++ spec—relevant if you're patching PoE-fed access switches or midspan injectors in the same rack. The yellow jacket fits into deployment standards where color = VLAN or color = switch uplink; many integrators run yellow for management VLANs or out-of-band access. RapidID barcode integration is Panduit's answer to the "which cable goes where" problem during after-hours troubleshooting: scan the barcode at the switch port, scan the barcode at the patch panel, and Panduit's software logs the link without opening a spreadsheet or squinting at handwritten labels.

The UTP6AX1YL ships in 10-packs and carries Panduit's manufacturer warranty. Exceeds all Cat 6A channel requirements when used with Panduit TX6A jacks, patch panels, and horizontal cable, ensuring you have a single-vendor performance guarantee if you're designing to TIA or ISO structured cabling standards. For PoE++ deployments, this cord supports 802.3bt Type 3 (60W) and Type 4 (90W) without the conductor heating issues that plague underspec patch cords in high-power installations.
