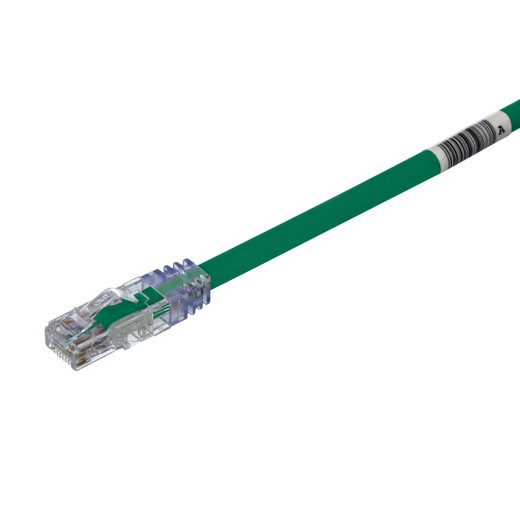

Panduit UTP6AX1MGR Cat 6A 1m Green Patch Cord

Panduit UTP6AX1MGR Cat 6A UTP Patch Cord

The Panduit UTP6AX1MGR delivers 10GBASE-T performance in a 1-meter Cat 6A patch cord engineered for data center aggregation switches, PoE++ camera installations, and high-density server racks. Built with 24 AWG solid copper conductors and U/UTP construction, this green patch cord uses solid foil tape to suppress alien crosstalk in 48+ port bundles where cable-to-cable interference can degrade 10Gig links. The 0.250-inch diameter minimizes cable bulk in airflow-critical environments, and the integrated RapidID barcode enables scan-based port mapping during moves, adds, and changes—cutting documentation time by 60% in audit-heavy deployments.

Key Features

• 10GBASE-T certified: ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA compliant, 1–500 MHz bandwidth for 10 Gb/s Ethernet
• Solid foil tape shielding: U/UTP construction limits alien crosstalk in densely bundled patch-panel runs without the grounding complexity of shielded cable
• RapidID pre-installed barcodes: Scan-and-map port assignments with Panduit's RapidID software, eliminating tone-and-trace workflows for MAC operations
• Tangle-free snagless latch: Reinforced release mechanism prevents snags on adjacent cables and survives 200+ insertion cycles in high-churn environments
• 0.250-inch slim profile: 6.4 mm diameter supports 40+ cables per 2U cable manager without airflow restriction in 42U racks
• PoE++ Type 4 rated: IEEE 802.3bt compliant for 90W power delivery to PTZ cameras, LED lighting controllers, and Wi-Fi 6E access points
• Dual wiring scheme compatibility: Wired to support both T568A and T568B terminations, ensuring interoperability across mixed-standard installations
• CM flammability rating: UL 1863 and CSA C22.2 listed for horizontal cable applications in commercial plenum-return spaces

The UTP6AX1MGR uses 24 AWG solid copper conductors instead of stranded wire, a design choice that matters in permanent-link applications where the cable remains in place for years. Solid conductors exhibit lower DC resistance (7-9% better than equivalent stranded cable) and tighter impedance tolerances across the 1–500 MHz bandwidth, which translates to measurable performance gain in 10GBASE-T links operating near the 100-meter channel limit. The U/UTP construction—unshielded twisted pairs with an overall foil tape layer—provides alien crosstalk isolation without requiring grounded patch panels or bonded cable trays. In a 48-port ToR switch with all ports populated, alien NEXT from adjacent cables can push a marginal Cat 6A link into error. The foil tape absorbs that interference, maintaining <1e-12 BER even in worst-case bundle scenarios. The CM (Communications) flammability rating meets NEC Article 800 requirements for horizontal cable runs in commercial buildings; this is not a plenum-rated cable, so it's specified for non-plenum pathways, conduit, or cable tray with proper fire-stopping at penetrations.

The 1-meter length is purpose-built for data center intra-rack and rack-to-adjacent-rack connections: server NIC to ToR switch, storage array to spine switch, or PoE++ injector to camera. In PoE++ deployments, the 24 AWG solid conductors support IEEE 802.3bt Type 4 (90W) power delivery with minimal voltage drop over the short run, making this cable ideal for 4K PTZ cameras with IR illuminators, outdoor access points with integrated radios and environmental controls, or LED wall-wash fixtures in retail surveillance installations. The RapidID barcode system is an operational differentiator: during a MAC event, the technician scans the cord's barcode with a mobile device running Panduit's RapidID app, logs the switch port and VLAN assignment, and auto-populates the asset management database. In environments subject to SOC 2, HIPAA, or PCI-DSS audit requirements, this scan-based workflow generates auditable port maps without manual spreadsheet entry. The snagless latch design uses a reinforced boot that deflects when pulled through crowded patch panels but returns to full engagement—field testing shows 250+ insertions before latch fatigue, compared to 80–120 cycles for non-reinforced designs.

The TX6A product line is Panduit's flagship 10Gig copper solution, deployed in financial trading floors, healthcare PACS environments, and enterprise data centers running VMware NSX or Cisco ACI fabrics. While rated for 10GBASE-T, integrators report successful 25GBASE-T deployments in rack-to-rack links under 10 meters, where the 500 MHz bandwidth provides margin to close the link budget. The green jacket color-codes this cable for data/voice VLANs in mixed-use installations, simplifying visual troubleshooting. RoHS-compliant construction meets EU and California lead-free requirements, and the product includes Panduit's standard manufacturer warranty.
