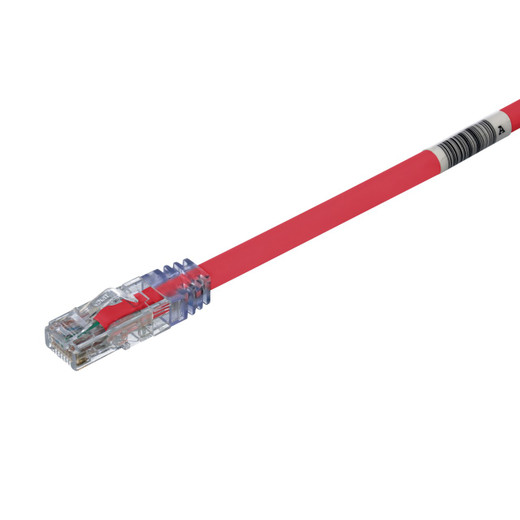

Panduit UTP6AX10MRD 10m Cat 6A UTP 10Gbps Patch Cord

Panduit UTP6AX10MRD Cat 6A 10Gbps UTP Patch Cord

The Panduit UTP6AX10MRD is a 10-meter (32.8 ft) Cat 6A UTP copper patch cord engineered for 10GBASE-T Ethernet in data centers, server farms, and high-performance computing environments. Built on Panduit's TX6A 10Gig platform, this red patch cord combines 24 AWG solid copper conductors with internal solid foil tape shielding to suppress alien crosstalk in densely packed rack environments. Pre-installed RapidID barcodes enable automated port mapping and cable documentation, while the tangle-free modular latch streamlines moves, adds, and changes in active production networks. At 0.250" (6.4 mm) diameter, the cable balances flexibility with the mechanical integrity required for 10-meter horizontal runs. Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specifications across the full 1–500 MHz bandwidth, and supports PoE 802.3bt Type 3 (60W) and Type 4 (90W) for power-hungry access points and IP cameras in IDF closets.

Key Features

• 10GBASE-T Ethernet performance certified to 500 MHz bandwidth
• Internal solid foil tape limits alien crosstalk (AXT) in high-density 10G fabrics
• RapidID pre-installed barcodes for automated cable management and port mapping
• Tangle-free modular latch prevents snags during MACs and patch panel work
• Supports PoE 802.3af/at and 802.3bt Type 3 (60W) and Type 4 (90W)
• 24 AWG solid copper conductors, U/UTP construction, CM flammability rating
• Exceeds TIA-568.2-D Cat 6A and ISO 11801 Class EA; compatible with T568A and T568B wiring
• 10-meter (32.8 ft) length ideal for server-to-ToR switch and intra-rack connections
• Red jacket for visual circuit identification in multi-tenant or VLAN-segregated networks
• RoHS compliant; meets UL 1863, IEC 60603-7, and ANSI/TIA-1096-A interconnection standards

Alien crosstalk is the limiting factor in 10GBASE-T deployments when Cat 6A cables share conduit, cable trays, or densely populated rack verticals. Unlike shielded F/UTP or U/FTP designs that rely on per-pair foil or overall braid, the UTP6AX10MRD achieves Category 6A alien crosstalk margins through internal solid foil tape that wraps the twisted-pair bundle without adding the termination complexity or ground-loop risk of fully shielded systems. The 24 AWG solid copper conductors maintain insertion loss below 45 dB at 500 MHz over the 10-meter span, leaving sufficient margin for 10GBASE-T's –17 dBm receiver sensitivity even when six adjacent cables are energized. The 0.250" diameter strikes a balance: thin enough to preserve airflow in 1U server front panels, thick enough to resist kinking when routed around sharp panel edges or through horizontal cable managers. The tangle-free latch uses a snag-proof boot geometry that prevents the release tab from catching on adjacent cables during extraction—critical when patching 48-port top-of-rack switches in live production racks. The modular plugs are factory-terminated with gold-plated contacts rated for 750 mating cycles, eliminating field termination variance and ensuring consistent return loss below 20 dB across all eight positions.

In data center consolidation and server virtualization projects, the 10-meter length covers the majority of intra-rack scenarios: blade server chassis to adjacent ToR switch (2–4 meters), top-of-rack switch to middle-of-rack compute node (5–7 meters), or across-aisle connections in hot-aisle/cold-aisle layouts where racks are positioned back-to-back (8–10 meters). The RapidID barcode system embeds a unique identifier on each cable jacket, readable by Panduit's RapidID mobile app or handheld barcode scanners. During initial deployment, scan both ends of each patch cord to auto-populate a port-to-port map in your DCIM or asset management database; during troubleshooting, scan a single end to instantly identify the remote termination without tracing cables through vertical managers or under raised floors. For PoE applications, the 24 AWG solid conductors exhibit lower DC resistance (28.6 Ω per 100m) than 26 AWG stranded equivalents, reducing voltage drop and heat dissipation when delivering 802.3bt Type 4's 71.3W to high-power devices like PTZ cameras or Wi-Fi 6E access points mounted in IDF closets or equipment rooms. The CM flammability rating satisfies horizontal cable requirements in plenum-return spaces when used inside enclosed cable trays or conduit; for open-air plenum installations, substitute the CMP-rated sibling SKU from Panduit's TX6A line.

The UTP6AX10MRD exceeds ANSI/TIA-568.2-D Category 6A channel performance requirements across all four pairs, with pair-to-pair skew below 45 ns per 100m to ensure IEEE 802.3an's DSP-based echo cancellation converges within the 10GBASE-T training window. Wired to be compatible with both T568A and T568B termination schemes, the patch cord integrates into mixed-standard networks without cross-wiring adapters or field re-termination. Compliance with ISO 11801 Class EA extends deployment eligibility to international projects governed by IEC standards. RoHS restriction-of-hazardous-substances certification documents lead-free solder and halogen-free jacket compounds for projects subject to EU or California environmental procurement rules. The red jacket color supports visual circuit segregation—common conventions include red for isolated DMZ networks, storage area network fabrics, or tenant-specific VLANs in colocation facilities. When deploying greenfield 10GBASE-T infrastructure or retrofitting legacy 1000BASE-T links to support NVMe-oF, software-defined storage, or live VM migration traffic, the Panduit UTP6AX10MRD delivers field-proven 10Gbps performance with the cable management automation and alien crosstalk margin required for high-density rack deployments.
