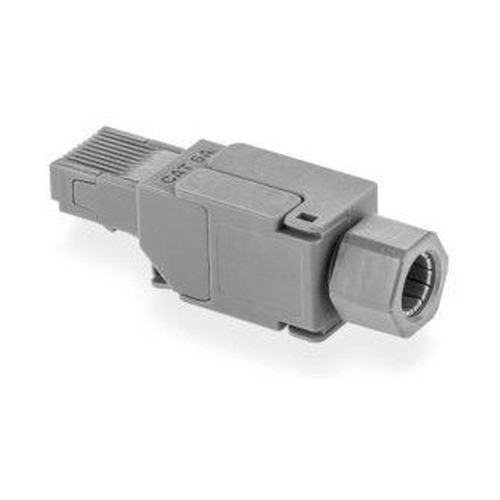

Signamax KRJS45FT-C6C Category 6 Screened Modular 8P8C Field-Installable Plug

Overview

The Signamax KRJS45FT-C6C is a shielded, field-terminable RJ45 plug designed for Category 6 network cabling. It provides a robust and reliable connection point for Ethernet infrastructure, particularly in environments where electromagnetic interference (EMI) is a concern. This plug allows for on-site termination of patch cords or direct connection to devices without requiring specialized crimping tools, simplifying deployment in industrial, commercial, or data center settings.

Compatibility

This plug is engineered for use with Category 6 (Cat6) solid or stranded copper cable. It supports standard 8P8C modular interfaces found on network switches, routers, IP cameras, and other networking equipment. Ensure your cable jacket diameter and conductor gauge are within the specified range for optimal termination. It is designed to meet the performance requirements for 1000BASE-T Ethernet networks.

Installation Notes

Installation requires a standard cable preparation tool to strip the outer jacket and separate the four twisted pairs. A specialized tool, often included with the plug or sold separately, is used to seat the conductors into the IDC terminals and secure the shielding. Proper strain relief and cable management are critical to maintaining signal integrity and preventing damage to the termination. Ensure the shield is properly connected to the plug's grounding mechanism for effective EMI/RFI rejection.
