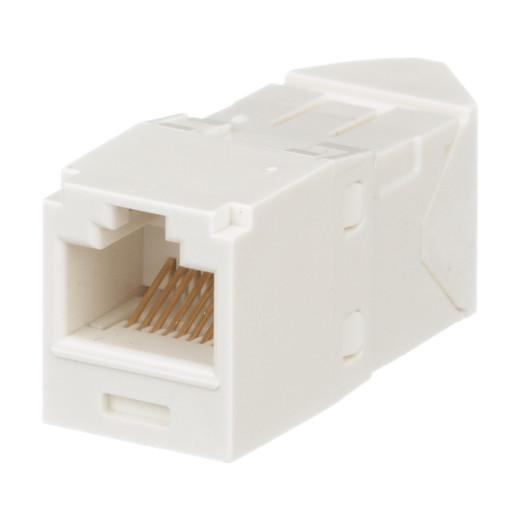

Panduit CJLR688TGIW 45° Cat 6 UTP RJ45 Jack Module

Panduit CJLR688TGIW Mini-Com Cat 6 UTP RJ45 Jack Module

The Panduit CJLR688TGIW delivers professional-grade Cat 6 termination in a 45° angled Mini-Com format engineered specifically for tight-space rack and wall-plate installations where standard straight jacks create cable-management problems. This TG (tool-less) termination module eliminates punchdown tools entirely—conductors seat with finger pressure—while maintaining full ANSI/TIA-568.2-D channel compliance and supporting IEEE 802.3bt Type 4 PoE (up to 100W). Every jack carries a factory-applied serial number for asset tracking and ships with 100% electrical test certification, making it the go-to choice for integrators building traceable, code-compliant structured cabling systems in security NOCs, datacenter edge deployments, and enterprise access-layer installations.

Key Features

• 45° left/right angled termination—routes cables parallel to the mounting surface in shallow back boxes and 1U patch panels
• TG tool-less termination—22-26 AWG solid or stranded conductors seat without punchdown tools, reducing install time and field failures
• Cat 6 UTP performance—exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Category 6 component requirements for 250 MHz channels
• IEEE 802.3bt Type 3 & Type 4 PoE support—rated for 2,500+ mating cycles under 100W PoE++ loads (cameras, access points, PoE lighting)
• Mini-Com modular system—fits all Panduit Mini-Com patch panels, surface-mount boxes, and modular faceplates
• Individual serial numbers—laser-etched on each jack body for project documentation and troubleshooting traceability
• 100% factory tested—electrical performance verified on every unit before shipment, test reports available on request
• UL 2043 plenum rated—approved for air-handling spaces without additional enclosures

The 45° angled body is the differentiator for installations where depth is constrained. In flush-mount wall boxes behind displays or access-control readers, standard straight jacks force Cat 6 cable into a sharp 180° bend that risks jacket damage and performance degradation—this module's side-exit design allows a gentle 90° turn within the box. In 1U patch panels populated with 48 ports, the angled orientation keeps bundled patch cords organized and parallel to the panel face, preventing the cable spaghetti that blocks airflow and makes MACs a nightmare. The TG termination system uses a color-coded cap that holds conductors in T568A or T568B sequence; you strip the cable, untwist pairs to the stop, insert into the cap, and press—IDC contacts pierce and seat in one motion. No impact tool, no guessing on seating force, and the cap's retention wings prevent conductor pullout during the 2,500-cycle test life. Field techs report 30-50% faster termination versus traditional 110-style jacks, and the elimination of punchdown force reduces wrist strain on large projects.

Category 6 compliance means this jack maintains less than 40 dB return loss and less than 3 dB insertion loss across the full 1-250 MHz spectrum, with pair-to-pair NEXT performance margins exceeding TIA minimums by 3-6 dB at 100 MHz. That headroom matters in real-world deployments where bundled cables, tight bend radii, and temperature extremes eat into theoretical spec limits—Panduit's test data shows this module delivers bit error rates below 10⁻¹² on 1000BASE-T links even when installed at the low end of the 22-26 AWG wire range. PoE++ support is validated to 2,500 mating cycles under continuous 100W draw, which translates to roughly 7 years of weekly reconnects in an IP camera or WAP installation before contact degradation becomes measurable. The jack's phosphor-bronze contacts are plated with 50 microinches of gold over nickel, providing less than 20 milliohm contact resistance and resistance to corrosion in humid mechanical rooms or outdoor pedestal enclosures (when used with appropriate wire and connectors).

The Mini-Com system architecture gives you modular flexibility across an entire enterprise cabling plant. This jack snaps into any Mini-Com opening—surface-mount boxes for conference tables, blank patch panels for custom layouts, or modular faceplates in any port count from 1 to 8. The off-white color matches Panduit's standard electric-ivory housings, and the jack body is UL 94V-0 flame-rated high-impact plastic that survives drop impacts during construction and resists UV yellowing under fluorescent lights. Serial number traceability ties each jack to a manufacturing lot and date code, which integrators use for two purposes: warranty claims (Panduit requires the S/N for RMA processing) and post-install documentation (many DoD and financial-sector specs require as-built records listing every component's S/N for cybersecurity audits). The jack is RoHS-compliant with lead-free solder and halogen-free plastic, meeting EU and California material restrictions without the performance compromises seen in early RoHS-era connectors.

Designed for integrators running structured cabling in security control rooms, datacenter meet-me rooms, and enterprise IDF/MDF closets where space is constrained and every jack termination needs to pass certification testing on the first pull. The 45° angle, tool-less termination, and factory test certification eliminate the three most common field failure modes—cable damage from tight bends, inconsistent punchdown seating, and out-of-spec performance—making this module the pragmatic choice when project margins cannot absorb rework or failed Fluke DSX tests.
