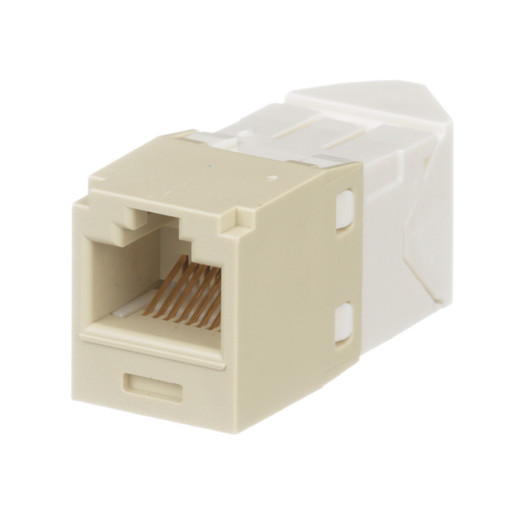

Panduit CJLR688TGEI Angled Jack Module

Overview

The Panduit CJLR688TGEI is a Mini-Com® Cat 6 UTP RJ45 jack module designed with a 45° angled orientation. This specific design is crucial for improving cable management and routing in confined spaces, particularly where standard straight-through jacks would create strain or obstruct pathways. It terminates 4-pair, 22-26 AWG twisted pair cable, ensuring robust connectivity for network infrastructure. Each module is factory tested to exceed ANSI/TIA-568.2-D and ISO 11801 channel and component requirements. The TG style termination simplifies installation, removing the need for specialized termination tools.

Compatibility

This jack module is fully compatible with Panduit Mini-Com Modular Patch Panels and Faceplates. It supports IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet standards, indicating it can handle significant power delivery without performance degradation, making it suitable for PoE-powered devices in surveillance or network deployments. It meets IEC 60603-7 standards and supports 2500 connection cycles.

Installation Notes

The TG style termination is designed for tool-less termination, simplifying the installation process and reducing the potential for errors. Each jack is individually serialized, providing traceability for network audits or troubleshooting. The 45° angle is specifically beneficial for installations where cables must bend sharply away from the termination point, such as behind wall plates or within densely populated racks.
