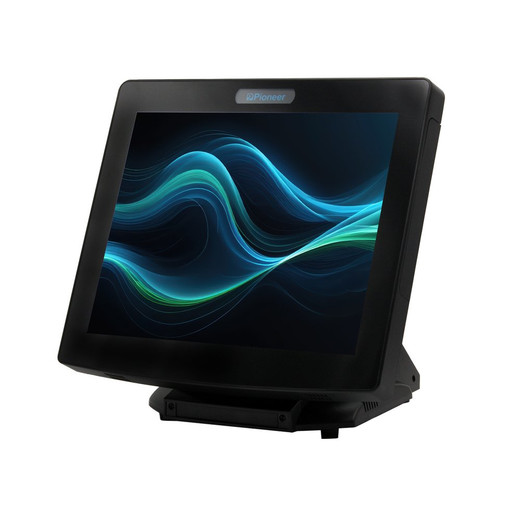

PioneerPOS CarisTouch 17 QCZ-HD4FCQ-ZA Wall-Mount POS Terminal
The PioneerPOS CarisTouch 17 QCZ-HD4FCQ-ZA is a fixed-position point-of-sale terminal designed for small-to-mid-sized retail and hospitality environments where space efficiency and security are operational priorities. This wall-mounted 17-inch terminal combines a resistive touchscreen interface with Windows 10 Pro and TPM 2.0 encryption to handle transaction processing, customer-facing displays, and payment workflows in compact counter or kitchen-pass installations. The configuration omits wireless radios and biometric readers, making it ideal for wired-network deployments where simplicity and regulatory compliance trump feature breadth.
Key Features
- Wall-Mount Form Factor: 17-inch footprint designed for vertical installation. Frees counter space in cramped retail or QSR environments and positions the display at natural eye level for customers and cashiers.
- Intel 2.9GHz Processor & 4GB RAM: Adequate single-register processing power for transaction throughput, POS application runtime, and light concurrent tasks. Not engineered for high-volume kitchen-display-system loads or multi-register consolidation.
- 120GB SSD Storage: Solid-state drive eliminates mechanical failure risk and reduces boot/application-load latency. Sufficient for Windows 10 Pro OS, POS software stack, and local transaction caching; networked backup recommended for critical transaction logs.
- Resistive Touchscreen: Pressure-activated 5-wire resistive technology. Accepts input from gloved fingers, stylus, or credit-card swipes — essential in food-service and high-touch environments. Lower cost and durability advantage over capacitive; trades pixel density and multi-touch capability.
- Windows 10 Pro & TPM 2.0: Native Microsoft OS simplifies legacy POS software integration and IT policy deployment. TPM 2.0 hardware security module protects encryption keys and enables HIPAA/PCI DSS compliance workflows without external security dongles.
- Privacy Filter Included: Anti-glare/anti-spy overlay reduces viewing angles. Protects cardholder data and PINs from shoulder-surfing in open-counter installations; maintenance-free adhesive mounting.
- Modular I/O Omissions: No built-in Wi-Fi, speakers, webcam, or magnetic-stripe reader. Reduces cost and firmware/driver complexity; external USB or serial peripherals integrate via standard Windows drivers for custom payment gateways and receipt printers.
Deployment Context & Architecture
This terminal is optimized for wired-Ethernet-only networks where IT infrastructure already supports POE delivery or dedicated power supplies. The resistive touchscreen and fanless thermal design make it suitable for high-contact environments (food courts, bars, fitness check-ins) where capacitive screens and active cooling fans accumulate contaminant buildup. Wall mounting positions the cashier-facing screen at ergonomic height and eliminates desk footprint — a meaningful advantage in multi-station layouts where counter real estate costs per square inch.
The omission of integrated payment-card readers and Wi-Fi is intentional: it forces explicit integration with certified payment processors and network appliances, reducing the attack surface for transactions that route through PCI DSS-compliant third-party gateways. For retailers already invested in external MSR hardware or cloud-based POS platforms (Square, Toast, Clover), this configuration is a lower-TCO entry point than all-in-one terminals that carry redundant capabilities.
Windows 10 Pro ensures compatibility with legacy MICROS, NCR, and Ingenico POS software stacks still common in mid-market hospitality. TPM 2.0 hardware encryption and Trusted Boot protect against unauthorized OS modification — a compliance requirement for sites handling credit-card data or age-gated product sales. SSD storage and processor speed are sufficient for single-register transaction velocity (typical 20-40 items per transaction) but not for kitchen-display or back-office analytics in real time. Pair this terminal with a dedicated networked NVR or server appliance for data-heavy reporting workflows.
Integration & Lifecycle Considerations
This terminal ships with Windows 10 Pro — IT teams must provision their own retail POS application, receipt printer drivers, and payment gateway integrations. The absence of wireless connectivity is a feature for security-sensitive deployments; however, installers must ensure reliable Ethernet backbone or PoE supply to the wall-mount location. Serial and USB expansion ports accommodate legacy barcode scanners, receipt printers, and customer-display interfaces using off-the-shelf Windows drivers. Warranty and support are routed through the PioneerPOS channel; spare parts (power supply, resistive overlay) are commodity components with wide aftermarket availability.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the PioneerPOS CarisTouch 17 in quick-service restaurants, golf clubs, and small retail operations where a fixed point-of-sale display needs to sit on a wall or pass-through window. The appeal here isn't feature richness — it's deliberate simplicity and compliance by design. By stripping out Wi-Fi, webcams, and integrated card readers, PioneerPOS forces you to integrate payment processing through certified external gateways, which actually strengthens your PCI DSS posture. We've seen IT teams adopt this terminal specifically to avoid the vulnerability-patch fatigue that comes with bloated all-in-one terminals. The TPM 2.0 and Windows 10 Pro combination means you can enforce full-disk encryption and Trusted Boot without adding external security hardware — a real operational win if you're managing multiple sites with varying IT maturity.
The resistive touchscreen is the other defining characteristic. In our experience, it holds up better in high-contact food-service environments than capacitive alternatives. Yes, you lose the pixel density and multi-touch gestures of capacitive, but a touchscreen that works reliably with wet fingers and latex gloves is worth the trade-off in kitchens and bar-top registers. Privacy filter is pre-installed, which saves an integrator labor and eliminates SKU confusion at the site.
Technical Highlights:
- 2.9GHz Intel Processor & 4GB RAM: Single-register processing for typical QSR/retail transaction loads (20-50 items, 5-10 second throughput). Not sufficient for kitchen-display consolidation or back-office analytics running concurrently; upgrading RAM to 8GB does not materially improve performance on this CPU — this is a single-core-limited architecture for POS workloads.
- 120GB SSD vs. HDD: Eliminates mechanical failure modes and boot latency. SSD lifespan on POS terminals typically exceeds five years in single-register duty. Windows 10 Pro OS and retail POS application footprint leaves ~60GB available for local transaction caching and logs — sufficient for 30-90 days of backup if network sync fails.
- Resistive 5-Wire Touchscreen Technology: Pressure-activated input works through latex gloves, wet fingers, and credit-card swipes without multitouch confusion or false positives from water droplets. Trade-off: lower optical clarity and no gesture recognition. Best-fit for bartop, kitchen pass, and QSR counter environments; not recommended for customer-facing kiosk displays where visual appeal and capacitive responsiveness drive engagement.
- TPM 2.0 & Windows 10 Pro: Hardware security module protects encryption keys at rest and enforces Secure Boot. Eliminates need for external Thales/Gemalto USB tokens for PCI compliance. Built-in Windows Defender and Group Policy management simplify multi-site IT governance without third-party MDM overhead.
- Modular Peripherals (No Built-In MSR/Wi-Fi): Reduces firmware complexity, attack surface, and compliance scope. External USB magnetic-stripe reader or serial barcode scanner integrate via standard Windows drivers. Ethernet-only network connection forces explicit VPN/firewall architecture; no rogue Wi-Fi radio to audit.
Deployment Considerations:
- Wired Ethernet Requirement: No Wi-Fi means Ethernet infrastructure or PoE injector must reach the wall-mount location. If your countertop runs conduit, this is straightforward; for retrofit installations in concrete or plaster walls, budgeting for surface-mounted cable trays or wireless access points as intermediaries is essential.
- Payment Gateway Integration: Terminal ships with OS only — you must integrate your POS software (Square, Toast, Clover, custom MICROS/NCR) and payment processor (Elavon, First Data, Stripe). This is not plug-and-play; allocate 4-8 hours of integration labor per installation. Advantage: you control the payment certification scope and can audit the data flow.
- Single-Register CPU Ceiling: 2.9GHz Intel processor handles one register smoothly. If you're running kitchen-display, customer-facing menu, and back-office analytics on the same box, performance will degrade. For multi-station deployments, spec a separate server for data processing and use this terminal as a transaction endpoint only.
- Resistive Screen Maintenance: Privacy filter overlay is adhesive-backed and serviceable. If it becomes scratched or cloudy after 2-3 years, replacement overlay kits are <$20 and field-replaceable in 10 minutes. Standard resistive-screen cleaning with isopropyl alcohol recommended monthly in high-contact environments.
- Windows 10 Pro EOL Planning: Microsoft end-of-support for Windows 10 is October 2025. Plan migration to Windows 11 Pro or Linux POS alternative 12-18 months before EOL. PioneerPOS BIOS updates typically support OS upgrades, but test in staging first.
This terminal is the right fit for integrators building fixed-location retail or hospitality POS systems where security compliance, wall-mount ergonomics, and simplicity matter more than feature parity. It's not a consumer-friendly all-in-one — it's a purpose-built appliance that forces best practices in payment integration and network segmentation. Spec this for established retailers with IT support; avoid it for franchise or kiosk deployments where end-users expect minimal setup. For more PoineerPOS options, see the PioneerPOS catalog.
