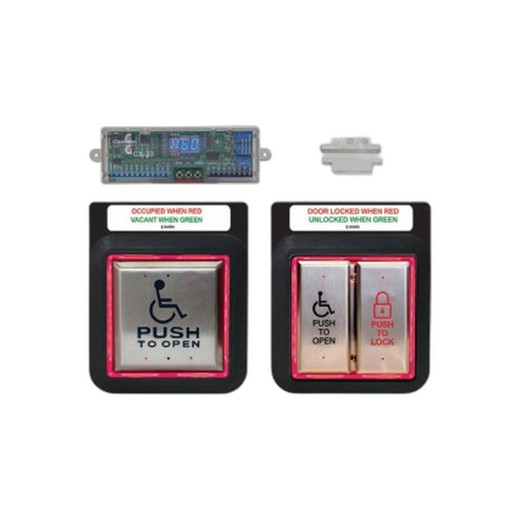

Camden CX-WC13AXFM Flush Mount Combo Illuminated Push Plate
Overview
The CX-WC13AXFM is a flush-mount illuminated push plate designed as part of Camden's CX-WC series barrier-free restroom control system. This combo unit integrates activation switching and visual feedback into a single faceplate, eliminating the need for separate components. It pairs with an electric strike and control relay to manage door access in compliant restroom environments — solving the installation complexity of multi-component setups by consolidating activation, illumination, and wiring into one flush-mount assembly. The illuminated push plate provides tactile activation and lit feedback to confirm door release, reducing user confusion in high-traffic facilities.
Compatibility
The CX-WC13AXFM is part of the Camden CX-WC series barrier-free restroom control kits. It integrates with the complete kit ecosystem, which includes control relays, annunciators, electric strikes, and pre-wired power supply cabinets. This unit is compatible with standard single-gang door frame rough-ins and works with Camden's electric strike hardware — verification of your specific strike model is required during procurement. The CX-WC series is designed to meet Ontario Regulation 368/13 Amendment to 2012 OBC for barrier-free restroom applications and operates in concert with the control logic and power distribution supplied by the kit's central power cabinet.
Installation Notes
Flush mounting requires standard single-gang box preparation in the door frame at wheelchair-accessible height. The unit accepts wiring from the central control relay (typically mounted in the pre-wired power supply cabinet supplied with the kit). No field configuration of activation logic is required — the push plate simply closes the circuit to trigger the controller's relay timing. Ensure the electric strike voltage and control relay outputs match the specifications of your purchased kit; mixing strike types or power supplies outside the CX-WC series can result in incompatibility or failure to operate. Verify door frame material (wood, aluminum, or steel) before ordering, as some installations may require additional backing plates.
What's in the Box
- 1x CX-WC13AXFM flush-mount illuminated push plate assembly
- Wiring terminals for connection to control relay
