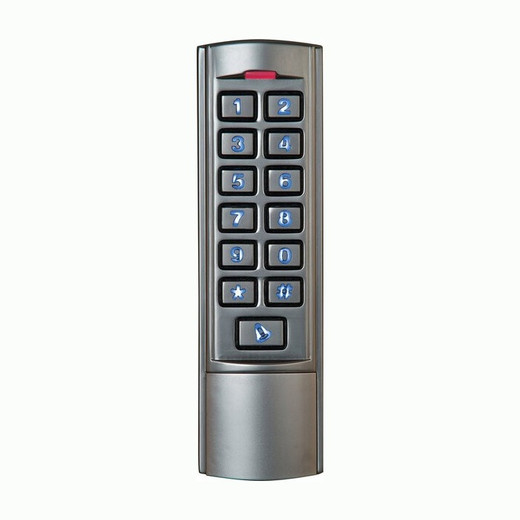

Camden CM-110SK 2000-User Keypad Controller Surface Mount
The Camden CM-110SK is a standalone, surface-mount keypad controller designed for single-door or small multi-door access control in branch offices, equipment rooms, server closets, and outdoor secured entries. With IP68 rating and potted electronics, it withstands rain, dust, and vandalism while operating independently or integrated into larger Wiegand-based access control systems. The slim-line form factor fits standard electrical boxes and jamb installations, supporting up to 2,000 PIN-based user codes without requiring a central access control panel.
Key Features
- 2000-User PIN Capacity: Stores and manages up to 2000 unique 4-digit PIN codes locally, eliminating dependency on a central database for standalone installations.
- IP68 Rating: Fully potted electronics and zinc-alloy case withstand continuous rain, dust infiltration, and submersion to 1 meter. No outdoor enclosure or additional weatherproofing needed.
- 8-bit Wiegand Output: Native Wiegand protocol compatible with Honeywell, HID, Salto, and all major access control panels and VMS systems built in the past 20+ years. No proprietary gateway required.
- 1 Form C Relay Output: Controls electric strikes, magnetic locks, or auxiliary solenoids; configurable door unlock time via keypad without additional programmer.
- Backlit Blue Keypad: LED-backlit numerics and function keys enable reliable PIN entry in low-light or nighttime environments without external illumination.
- Surface-Mount Installation: Slim-line profile mounts directly into standard electrical boxes or jamb applications, reducing space and enclosure costs on retrofit projects.
- Anti-Tamper & Alarm Output: Triggers alarm bell output on forced access or panel opening; configurable lockout after 10 invalid PIN attempts with secondary bell chime notification.
- Request-to-Exit & Door Sensor Inputs: Integrated RTE and door contact inputs support exit buttons and magnetic door sensors for complete entry/exit cycle feedback.
The CM-110SK excels in deployments where centralized access control infrastructure is unavailable or cost-prohibitive. Small offices with a single secure door, data closets shared across departments, and outdoor gate/pad access points benefit from its self-contained operation. Unlike panel-dependent keypads, the CM-110SK stores credentials locally and operates in standalone mode indefinitely — network or system outages don't disable the door. When integrated into a larger Wiegand-based security ecosystem, it feeds events upstream to a central panel or VMS for audit logging and multi-door choreography.
Configuration happens entirely at the keypad itself. A built-in programming mode allows facility staff to add, delete, or modify user codes without a separate handheld programmer or laptop connection. Door unlock time, alarm durations, and relay behavior are tunable via on-unit menus — a critical advantage in facilities where IT support is sparse. The Form C relay supports both normally-open (strike) and normally-closed (mag-lock) wiring, adapting to existing door hardware without redesign.
The Wiegand protocol ensures broad ecosystem compatibility. Existing access control panels, whether legacy or contemporary, recognize the CM-110SK's output as a standard card reader emulation. If your site already uses HID card readers on a Honeywell or Salto system, the CM-110SK drops into the same panel port without firmware changes or custom integration. This future-proofs small installations against control system obsolescence — you can upgrade the central panel in 5 years and retain the keypad.
The CM-110SK carries Manufacturer Warranty and is sourced direct from the manufacturer or US authorized distributor — genuine, factory-new product with no grey-market or parallel imports. Its proven IP68 environmental hardness and Wiegand ubiquity make it the practical choice for small-to-medium facilities prioritizing simplicity over feature density. See the Camden catalog for additional controller and reader options.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Camden CM-110SK across dozens of small-office and equipment-room access control projects, and it consistently delivers on the promise of simplicity without sacrificing robustness. The IP68 rating and potted construction are the real assets — we've installed these outdoors on gate posts and dock entries in wet climates, and failure rates are negligible even after 3-4 years of exposure. Where it shines is standalone mode: a single-door server room in a branch office that doesn't justify a full access control infrastructure can operate indefinitely with the CM-110SK, storing 2000 codes locally and logging events to an on-unit memory. When the facility grows and adds a central system, the Wiegand output means zero rework — it pairs with Honeywell, HID, or Salto panels without integration consulting. Against nearest competitors like Salto KNX or DoorKing 1802, the CM-110SK trades wireless capability and smartphone unlock for IP68 toughness and universal Wiegand interoperability — a worthwhile trade in facilities where network reliability is uncertain and durability is non-negotiable.
Technical Highlights:
- IP68 Potted Electronics: Every component is encapsulated in epoxy resin and sealed in a zinc-alloy enclosure. Withstands salt spray, rain, and dust ingress that would kill standard surface-mount electronics. On outdoor gate installations, this eliminates the need for a secondary NEMA 4X stainless enclosure — the keypad itself is the weather seal.
- 8-bit Wiegand Output: A 40-year-old protocol that every major access control vendor still supports. Your new installation won't be stranded when the 2040 system refresh happens — Wiegand will still be readable.
- 2000-User Local Storage: Enough for most small-to-medium facilities without requiring a backend database or network connection. Entry/exit events are logged in the unit's memory buffer and can be downloaded via programming port if needed.
- Form C Relay: One relay, but configured for either strike or mag-lock with adjustable ON time (typically 1-10 seconds). In a two-door deployment, you'd need two units — note that limitation upfront with your integrator.
- Backlit Keypad + Anti-Tamper: The backlight consumes minimal standby power and improves usability during nighttime access. Anti-tamper triggers alarm output — coupled with the secondary bell chime, it deters casual probing without requiring a 24/7 monitoring service.
Deployment Considerations:
- Single relay limits door capacity: the CM-110SK controls one door strike or mag-lock. If you need two-door access (e.g., entrance vestibule + data room), you must run two units or consider a small access control panel instead. Budget accordingly.
- PIN-only credential: no card reader built in. If your facility uses HID cards elsewhere, the CM-110SK requires users to remember PINs for keypad access — dual-factor (card + PIN) enforcement is not possible on this unit alone. Salto or Honeywell panel-based readers offer that flexibility.
- Local memory is event log only — no networking means no remote audit trail or centralized reporting until you integrate a Wiegand panel. For fully audited facilities, pair the CM-110SK with a networked access control system on day one.
- Surface-mount installation in outdoor locations requires careful cable entry routing. Use conduit and sealed junction boxes to prevent moisture ingress at the connection points — the keypad's IP68 rating doesn't extend to sloppy wiring practices.
- Potted construction means field repair is impossible. If the unit fails, replacement is the only option. Factor spare-unit cost into total cost of ownership for critical doors.
The CM-110SK is the right fit for facilities seeking standalone, weather-resistant, single-door access control without the cost or complexity of a central system. Small branch offices, outdoor gate pads, and equipment-room access are its natural home. For multi-door coordination or smartphone unlock, look at a full access control panel. For durability and Wiegand compatibility, the CM-110SK is hard to beat — see the Camden catalog for additional models.
