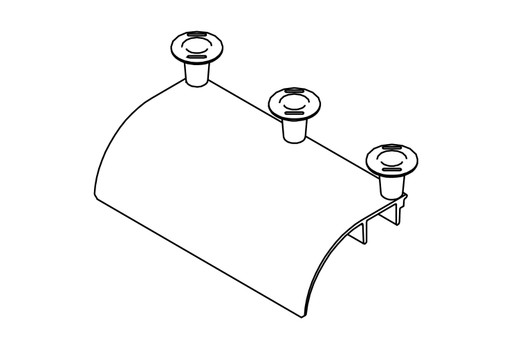

Chatsworth 12100-118 Cable Runway Radius Drop Cross Member

Overview

The Chatsworth 12100-118 is a 17-inch wide radius drop cross member designed to integrate with cable runway systems. Its primary function is to create a smooth, controlled transition for cables entering or exiting a runway, specifically at a 90-degree drop. This prevents sharp bends and potential damage to sensitive network and fiber optic cabling, ensuring signal integrity and prolonging cable lifespan in structured cabling deployments.

Compatibility

This cross member is engineered for use with Chatsworth's standard cable runway systems. It is designed to fit within the existing framework, providing a seamless extension for managing cable pathways. While not specific to any particular network equipment brand, its utility is in the physical cable management infrastructure that supports devices from vendors like Cisco, Juniper, HP, Dell, and surveillance equipment from Axis, Hanwha, or Hikvision.

Installation Notes

Installation involves securing the cross member to the existing cable runway sections. Typically, this is achieved using standard T-handles or wrenches to tighten the integrated fasteners. Ensure the runway system is properly grounded before installation. The 17-inch width is critical for accommodating the desired cable bend radius for common network and fiber optic cable types.
