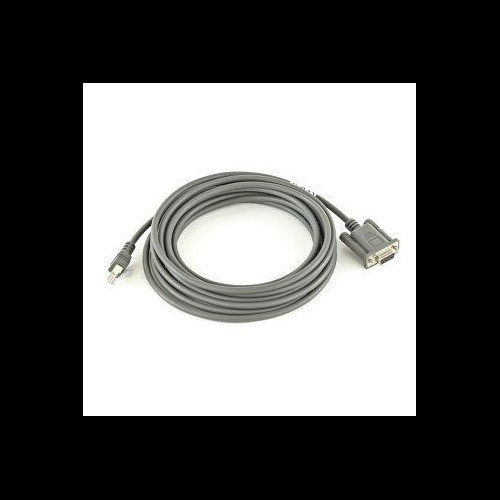

The Zebra CBA-R51-S16ZAR is a 5-meter (16.4 ft) serial cable designed to connect Zebra multi-plane scanners, such as the MP6000 and MP7000 series, to host systems via an RS232 interface. This cable provides a reliable data link for point-of-sale and self-checkout environments where direct serial communication is required. Its 5-meter length offers flexibility in scanner placement relative to the host terminal.
This cable is specifically engineered for Zebra multi-plane scanners, including but not limited to the MP6000 and MP7000 product families. It terminates in a DB9 female connector, suitable for direct connection to host devices equipped with a standard RS232 serial port.
The CBA-R51-S16ZAR utilizes standard RS232 signaling. Ensure the host system's serial port is configured correctly to match the scanner's default serial parameters (typically 9600 baud, 8 data bits, no parity, 1 stop bit, no flow control) for initial setup. The cable's construction is suitable for typical retail or commercial environments.
Manufacturer-verified compatible cameras, recorders, mounts, accessories, and licenses for this product. Adjust quantities and add the entire bundle to your cart in one click.
Zebra
SKU: CBA-U51-S16ZAR
Zebra
SKU: CBA-U52-S16PAR
Zebra

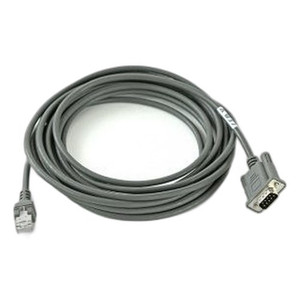

SKU: CBA-R52-S16ZAR
