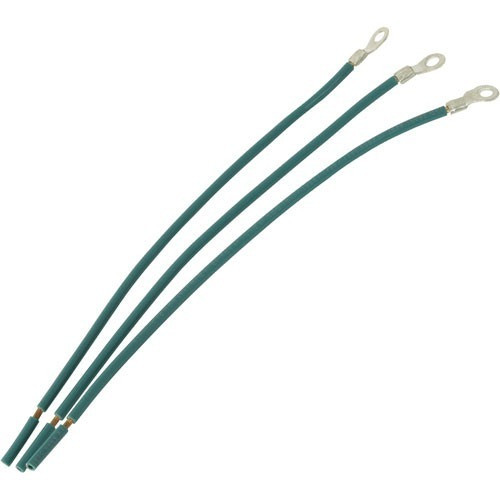

Middle Atlantic G-8X10 Ring Terminal to Cable Assembly
Overview
The Middle Atlantic G-8X10 is a pre-terminated cable assembly connecting a ring terminal to a cable end, designed for grounding and power distribution wiring inside equipment racks and enclosures. This type of assembly eliminates field-termination errors on grounding runs — a common source of noise and safety issues in rack-mounted AV, security, and IT deployments. Specify the G-8X10 when your rack installation requires a reliable, factory-terminated ground or power connection rather than a hand-crimped field assembly.
Compatibility
Designed for use with Middle Atlantic rack systems and enclosures, including the Middle Atlantic rack and power distribution line. Ring terminal cable assemblies of this type are commonly paired with rack power distribution units, grounding bus bars, and chassis ground points in standard 19-inch and 23-inch rack frames. Verify the terminal lug size and cable gauge against your specific rack PDU or enclosure grounding spec before ordering — terminal sizing varies across the Middle Atlantic product family and must match the stud diameter at the connection point.
Installation Notes
Ring terminal assemblies require the receiving stud or screw to be clean and free of oxidation before installation. Torque the fastener to the rack or PDU manufacturer's specified value — under-torqued ring terminals are a leading cause of intermittent ground faults in dense rack environments. Route the cable clear of sharp chassis edges to prevent insulation abrasion over time. If integrating into a rack enclosure grounding scheme, confirm the assembly length is sufficient for your rail-to-ground-bar run before mounting equipment. Consult the rack power planning guide for grounding topology recommendations in multi-rack deployments.
