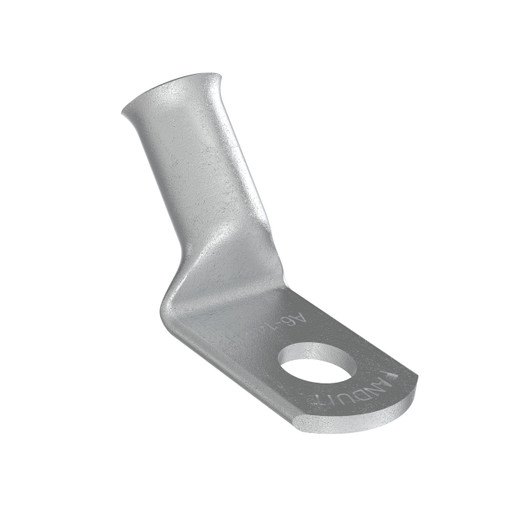

Panduit A6-14RH-C Pan-Lug™ Compression Lug
The Panduit A6-14RH-C is a tin-plated copper compression lug designed for 6 AWG conductors terminating to 1/4" stud connections at a 45° angle. Built for battery strings, UPS installations, and power distribution systems, this lug delivers military-grade pullout strength and cULus Listed reliability in a 100-piece contractor pack. The tin-plated finish meets ASTM Class C corrosion resistance specs, while the standard barrel design without inspection window prevents contaminant ingress in dusty or outdoor environments. Flared barrel entry simplifies flex conductor insertion during high-volume termination work.
Key Features
- 6 AWG wire capacity with 1/4" stud hole for battery cable and power distribution applications
- 45° angle barrel reduces installation footprint in tight rack spaces and cabinet terminations
- Tin-plated copper barrel meets ASTM Class C corrosion resistance for indoor and outdoor power systems
- Standard barrel design without inspection window prevents dust and moisture contamination
- Flared barrel entry eases insertion of stranded and flex conductors during crimping
- High pullout strength meets US Military Wire Pull Out Specifications when crimped with Panduit tooling
- cULus Listed to UL 486A-486B for use in power applications in US and Canada
- 100-piece package quantity for commercial battery string builds and maintenance stock
The A6-14RH-C addresses the specific termination requirements of 6 AWG battery interconnect cables and power feeders in commercial and industrial installations. The 45° bend positions the stud connection parallel to the lug barrel after crimping, allowing the terminated cable to route tightly against battery posts, bus bars, and equipment terminals without the wide swing radius required by straight-barrel lugs. In dense rack environments—UPS cabinets, telecom battery plants, and DC power distribution frames—this angle saves 2-3 inches of clearance per termination, often the difference between fitting a cable run or re-engineering the layout. The tin plating provides sacrificial corrosion protection in HVAC equipment rooms and outdoor generator enclosures where temperature cycling causes condensation on unprotected copper.
Panduit's standard barrel construction omits the inspection window found on some compression lugs, trading visual crimp verification for a fully enclosed barrel that blocks dust, metal shavings, and moisture intrusion. In battery rooms and data center subfloor spaces where airborne contaminants circulate continuously, the sealed barrel prevents long-term galvanic corrosion at the conductor-lug interface. The flared entry chamfer on the barrel opening allows rapid insertion of 6 AWG stranded and flexible welding-grade conductors without pre-forming—installers can hand-feed the conductor into the barrel and achieve full seating in a single motion. This design reduces repetitive-strain ergonomics during large battery string builds where a single 40-cell UPS string requires 80+ lug crimps.
The lug meets US Military Wire Pull Out Specifications when terminated with Panduit's recommended hydraulic or mechanical crimping tools and dies, delivering pullout strength that exceeds the tensile rating of the 6 AWG conductor itself. This matters in seismic zones and mobile equipment installations where mechanical shock loads can exceed 10G—the crimped connection becomes stronger than the wire, eliminating the termination as a failure point. cULus Listing to UL 486A-486B covers power applications up to 600V, making the A6-14RH-C code-compliant for battery interconnects, DC power distribution, grounding conductors, and equipment bonding jumpers in NEC-governed installations. The 100-piece pack quantity matches the scale of commercial battery deployments—single-string 480V UPS systems, multi-string telecom DC plants, and solar combiner box arrays—while providing cost-effective maintenance stock for integrators servicing multiple sites.
