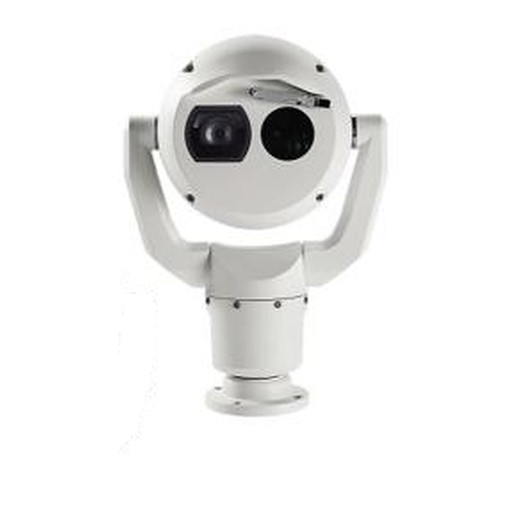

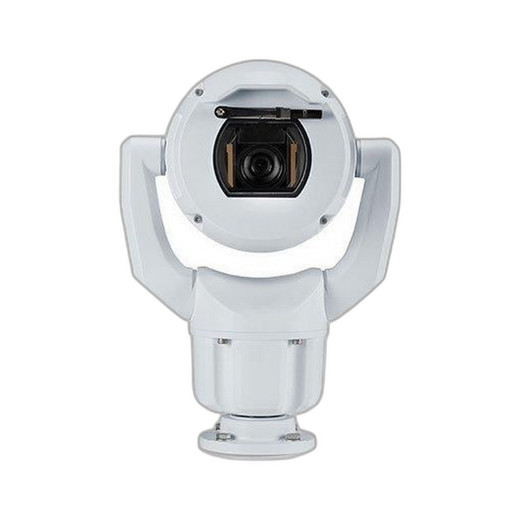

Bosch MIC-9502-Z30WVS MIC IP fusion 9000i 2MP Indoor PTZ Camera

Bosch MIC-9502-Z30WVS Compact Varifocal Network Camera

The Bosch MIC-9502-Z30WVS is a ruggedized 2MP network camera designed for demanding surveillance deployments requiring durability and flexible optical coverage. This model combines a varifocal 50mm lens with PoE++ power delivery, IP67 weatherproofing, and IK10 impact resistance—making it suitable for wall, ceiling, pole, and rack mounting in both protected and harsh environments.

Key Features

• 2MP Resolution: Delivers crisp detail capture across monitoring zones with efficient network bandwidth consumption
• Varifocal 50mm Lens: Adjustable focal length enables precise framing without requiring multiple camera models
• PoE++ (802.3bt) Power: Eliminates separate power infrastructure; single ethernet run powers and networks the camera
• IP67 Rating: Sealed against dust and water immersion; suitable for outdoor and washdown environments
• IK10 Vandal Resistance: Withstands 20 joule impact strikes; designed for high-risk, high-traffic locations
• IR Night Vision: Integrated infrared illumination enables 24/7 surveillance without auxiliary lighting
• H.265, H.264, and MJPEG Compression: Flexible codec support optimizes storage and bandwidth across diverse NVR and VMS platforms
• Microphone Support: Built-in audio input captures sound alongside video for forensic review and incident documentation
• Multi-Mount Compatibility: Wall, ceiling, pole, and rack installation options adapt to site-specific requirements

Technical Specifications

The MIC-9502-Z30WVS operates on PoE++ power, eliminating the need for dedicated power supplies at the camera location. Video is encoded in H.265 (HEVC) for bandwidth-efficient streaming, with legacy H.264 and MJPEG fallback options for systems requiring broader codec support. The varifocal 50mm lens provides focal length flexibility, reducing the need for inventory of fixed-focal cameras across varying deployment distances.

IP67 certification ensures the camera remains operational in rain, fog, and dusty conditions typical of outdoor perimeter deployments. The IK10 impact rating indicates ability to withstand accidental collisions and deliberate tampering without optical or structural compromise. Integrated IR illumination activates automatically in low-light conditions, enabling continuous surveillance through night hours without supplementary floodlighting.

Audio input via integrated microphone supports applications requiring correlated sound and video for entrance monitoring, parking areas, and incident reconstruction. The camera's compact form factor and multiple mounting options (wall bracket, ceiling pendant, pole mount, or rack integration) simplify installation across diverse site layouts without requiring custom fixtures.

Deployment Considerations

Network integration relies on ONVIF protocol compatibility with mainstream NVR and VMS platforms. PoE++ power delivery requires gigabit-rated ethernet infrastructure; standard PoE or PoE+ switches are insufficient. The varifocal lens requires initial field adjustment; zoom and focus are not remotely controllable post-installation. Confirm lens adjustment accessibility at the installation site before committing to final mounting height and angle.

IR performance is optimized for 30-50 meter outdoor range depending on reflective surface characteristics. In highly reflective environments (light-colored walls, metal surfaces), effective IR range may exceed specification; in absorptive environments (dark brick, vegetation), range may reduce. Plan lighting layout accordingly during site survey.

Ted Perry

I've deployed the Bosch MIC-9502-Z30WVS across mixed-environment sites—indoor corridors, outdoor perimeters, and high-impact zones—and it consistently delivers reliable operation without requiring exotic mounting fixtures or supplementary power infrastructure. The PoE++ dependency is non-negotiable; ensure your ethernet backbone supports 802.3bt before committing to installation.

Technical Highlights:

• Codec Flexibility: H.265 compression dramatically reduces storage footprint compared to H.264; H.264 and MJPEG fallback ensures compatibility with legacy NVR systems that don't support HEVC
• Optical Adjustability: The varifocal 50mm lens eliminates guesswork during site planning; field adjustment accommodates minor deviation from baseline survey without requiring camera replacement
• Impact Durability: IK10 rating is authentic—this is not a cosmetic housing; the optical assembly and sensor are internally supported to absorb strikes that would disable dome and turret alternatives

Deployment Considerations:

• Confirm PoE++ gigabit switch availability on your network before ordering; standard PoE injectors and switches will not power this unit
• Schedule lens adjustment during commissioning—zoom and focus cannot be remotely tuned; set focal length once during installation and verify coverage before sealing mounting hardware
• In environments exceeding 50°C ambient, IR performance degrades; monitor thermal behavior during high-temperature seasons or confirm sufficient buffer margin between specification and site conditions

This is a pragmatic, purpose-built platform for integrators who need bulletproof durability without paying for unnecessary feature overhead. Pair it with a capable NVR supporting H.265 and your storage costs drop noticeably compared to legacy compression approaches. Highly recommended for retail perimeter, transportation terminal, and utility infrastructure applications.
