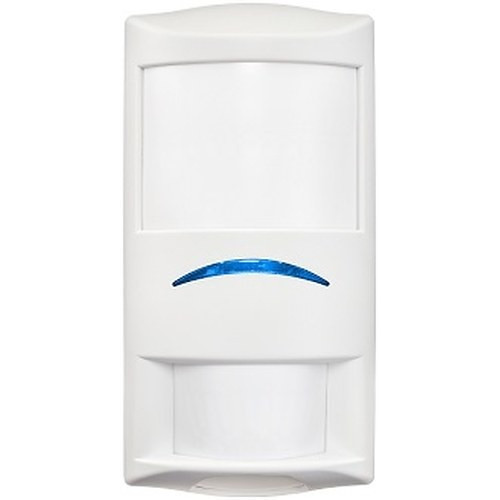

Bosch ISC-PDL1-WA18G Wall-Mount Motion Detector
Overview
The Bosch ISC-PDL1-WA18G is a wired, wall-mounted motion detection sensor engineered for professional security integration in access control, NVR, and perimeter surveillance workflows. Unlike ceiling-mount detectors, this wall-mount form factor lets you position the sensor at specific sight lines—critical when you're retrofitting facilities with architectural constraints or when ceiling penetrations aren't an option. The ISC-PDL1-WA18G (often searched as ISC PDL1 WA18G) outputs motion events via dry relay contact, making it compatible with legacy control panels, modern NVRs, and networked video management systems without requiring custom middleware.
Key Features
- Wall-Mount Design: Vertical surface installation eliminates the need for ceiling modifications, reducing labor during installation and simplifying future relocations in facilities with hardened or inaccessible ceilings.
- Wired Connectivity (12-24 VDC): Standard low-voltage power supply integrates directly into existing security infrastructure; no batteries or WiFi complexity means predictable uptime and no mesh network overhead.
- Dry Relay Contact Output: Motion events trigger a simple NO/NC relay closure, making this detector backward-compatible with analog alarm panels while still feeding modern IP-based systems through a relay-to-contact converter or NVR trigger input.
- Field-Adjustable Sensitivity: Configurable detection thresholds accommodate varied deployment environments—outdoor covered areas with wind-blown debris, high-traffic corridors, or low-activity perimeter zones—without swapping hardware.
- TriTech+ Motion Technology: Combines multiple sensor types to reduce false positives caused by thermal reflections, insects, or shadows; fewer nuisance alarms mean reduced operator fatigue and fewer expensive false-alarm fees from your monitoring center.
- Compact, Low-Profile Housing: Discrete form factor blends into wall installations, reducing visual clutter in retail or facility environments while maintaining full coverage of entry points and perimeter sight lines.
- Professional Commissioning: Industry-standard mounting brackets and wiring connectors reduce setup time; straightforward sensitivity adjustment in the field cuts reliance on factory recalibration.
Integration & Deployment Context
The ISC-PDL1-WA18G integrates with Bosch security management systems and third-party NVRs, access control platforms, and VMS software that accept relay contact or networked event signals. Motion events trigger synchronized video recording, access denial, or alarm notifications depending on your system configuration. Ideal for building perimeters, entry vestibules, warehouse loading areas, retail back-of-house spaces, and access corridors where wall-mounted detection aligns with facility geometry and sight-line requirements. The detector operates reliably in both protected interior environments and covered outdoor areas (e.g., covered loading docks, recessed doorways) where direct rain exposure is limited.
When to Choose a Different Model
If you require ceiling-mounted coverage or panoramic detection across wide open spaces, consider a ceiling-mount variant in the Bosch ISC series. For outdoor perimeter applications exposed to direct weather, verify that your mounting location provides adequate overhang or weatherproofing. If your facility uses modern IP-based event signaling exclusively and has no legacy relay-driven systems, confirm that your NVR or VMS can accept the relay-contact interface, or plan for a relay-to-Ethernet converter module.
Frequently Asked Questions
Q: Can the ISC-PDL1-WA18G be used outdoors?
A: Yes, in protected outdoor environments such as covered loading docks, recessed entryways, or under eaves where direct rain exposure is prevented. For unprotected outdoor perimeter applications, consult the full technical specifications to confirm environmental ratings align with your site conditions.
Q: What type of output does the ISC-PDL1-WA18G provide?
A: A dry relay contact (NO/NC) that closes on motion detection. This integrates directly with analog alarm panels or can feed an NVR trigger input or access control system via standard wiring.
Q: How is sensitivity adjusted in the field?
A: The detector includes field-adjustable sensitivity controls to fine-tune detection thresholds for your specific environment, reducing false alarms without requiring a technician callback or factory recalibration.
Q: What power supply does the ISC-PDL1-WA18G require?
A: Standard 12-24 VDC, supplied by your security system's main power panel or a dedicated low-voltage supply. Wired connection ensures no battery replacement or wireless range issues.
Q: Is the ISC-PDL1-WA18G compatible with modern NVR systems?
A: Yes. The relay contact output can connect to most NVR trigger inputs to initiate event-based recording. Confirm your NVR's relay input specifications during integration planning.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
I've deployed the Bosch ISC-PDL1-WA18G across several perimeter security and access-control retrofits, and it's a straightforward, low-friction choice when wall-mount architecture makes sense. The TriTech+ sensor technology genuinely reduces false-alarm noise—a real operational win in facilities where every dispatch costs money or where your monitoring service charges false-alarm penalties.
Technical Highlights:
- TriTech+ Motion Fusion: Combines multiple sensor types to filter out thermal reflections, blowing debris, and shadows. Results in meaningfully fewer nuisance alarms compared to single-technology detectors—important when your facility runs 24/7 and every false trigger ripples through your ops.
- Field-Adjustable Sensitivity: Dial in detection thresholds on-site rather than swapping units or waiting for a factory reconfig. In a 50,000-sq-ft warehouse, this saves hours and eliminates dead zones caused by suboptimal default settings.
- Dry Relay Simplicity: No Ethernet gateway, no ONVIF complexity, no firmware updates. One relay closure triggers your NVR, access panel, or alarm hub. If your infrastructure is mixed-generation (some IP, some legacy), the ISC-PDL1-WA18G plugs into both.
Deployment Considerations:
- Sight-Line Dependency: Wall-mount detection is directional—you need clear line-of-sight from the detector to your target area. Obstructions (shipping containers, racks, shelving) will create blind zones. Walk the perimeter and map coverage before finalizing placement.
- Protected Outdoor Limitation: This sensor is rated for covered outdoor areas only (eaves, recessed doorways, loading dock soffits). Direct rain or UV exposure will degrade performance or void warranty. If you need true outdoor perimeter coverage, you'll need an IP-rated outdoor detector variant or a hardened enclosure.
The ISC-PDL1-WA18G is your best fit for indoor/covered perimeter facilities where false-alarm reduction is a real cost center, where you can mount at wall height for clean sight lines, and where your control infrastructure already speaks relay contact. Warehouse loading areas, retail vestibules, and building perimeter access points are where this detector earns its place.
