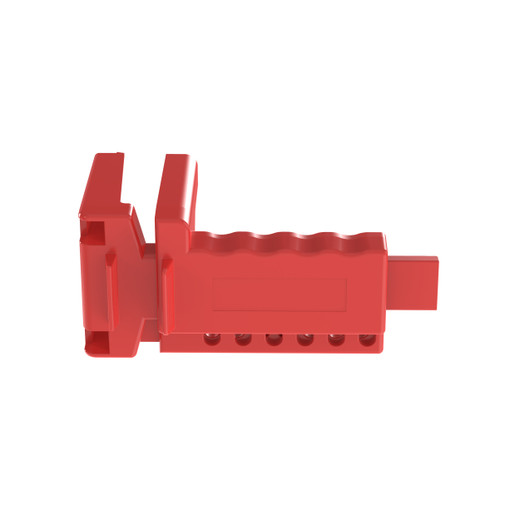

Panduit PSL-BV1 Ball Valve Lockout
The Panduit PSL-BV1 delivers OSHA-compliant lockout/tagout capability for ball valves controlling hydraulic, pneumatic, and chemical energy systems. Molded from impact-resistant polypropylene, this single-piece lockout device accommodates valve stem diameters from 0.25" to 1" and handle lengths up to 7.5", covering the majority of quarter-turn ball valves found in mechanical rooms, process lines, and utility distribution systems. Installation requires no tools—the clam-shell design snaps over the valve handle and accepts up to six padlocks for multi-department energy isolation.
Key Features
- Polypropylene construction resists corrosion, chemical exposure, and impact in industrial environments
- Accommodates valve diameters 0.25" to 1" (6.35 mm to 25.4 mm) with handle lengths up to 7.5"
- Six padlock holes enable group lockout for multi-craft maintenance procedures
- High-visibility red finish with raised text identifies locked-out equipment from across the room
- Compact 6.25" × 3.1" footprint fits tight valve clusters in mechanical rooms and process skids
The PSL-BV1's material selection addresses the three primary lockout failure modes in real-world LOTO programs: brittle cracking from temperature cycling, chemical degradation from cleaning agents and process fluids, and mechanical failure under tamper attempts. Polypropylene maintains structural integrity from -20°F to 180°F while resisting acids, alkalis, and most organic solvents. The molded hinge eliminates the metal pins and fasteners that corrode in steam-cleaned environments or coastal facilities. Each unit ships with permanent raised labeling—no adhesive tags to peel or fade—and a through-hole design that drains condensation rather than trapping it.
In multi-department facilities, the six-hole lockout pattern supports complex energy isolation: a boiler technician, electrician, and safety coordinator can each apply their own lock, ensuring no single person can restore energy until the entire maintenance crew signs off. The 0.25" minimum diameter captures instrument ball valves on analyzer sample lines, while the 1" maximum handles standard process isolation valves on chilled water loops, compressed air headers, and chemical feed systems. Compact dimensions allow installation in congested valve manifolds where oversized lockouts would contact adjacent piping or electrical boxes.
Compliance validation: the PSL-BV1 meets OSHA 29 CFR 1910.147 lockout/tagout requirements and is suitable for facilities operating under NFPA 70E arc flash programs or ANSI Z244.1 energy isolation standards. The device is duty-rated for repeated cycling—typical in facilities with daily or weekly maintenance routines—and ships one lockout per package with carton quantities of ten for stock rooms managing multiple maintenance zones.
