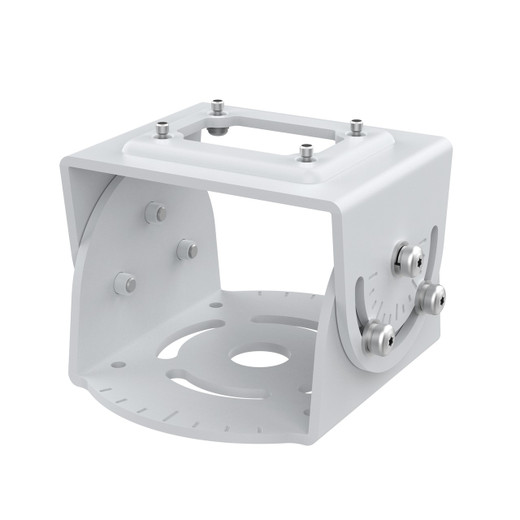

Axis TQ1501-E Crane and Traffic Mount
The Axis TQ1501-E is a specialized mounting solution engineered for high-vibration industrial environments including cranes, traffic monitoring systems, and dynamic surveillance applications. Built with powder-coated aluminum and stainless steel fasteners, this mount delivers exceptional stability while maintaining camera alignment in challenging conditions.
Key Features
- Powder-coated aluminum casing with stainless steel TX20 screws for corrosion resistance
- 45-degree tilt capability for optimized camera positioning
- Compact design: 136 x 142 x 95 mm, weighing 530 g
- IP66/IP67 rated for indoor/outdoor use
- IK10 impact rating and NEMA 250 Type 4X certification
- PVC-free, environmentally sustainable construction
- Compatible with AXIS P13-E/LE, Q16-LE, T92E, T92G20, T93F, and T91B47 systems
Technical Highlights
The TQ1501-E meets rigorous environmental standards including IEC 60068–2–6 and IEC 60068–2–27 testing for thermal shock and humidity resistance. Its IP66/IP67 rating ensures complete protection against dust and water ingress, while NEMA 4X certification confirms suitability for harsh industrial environments. The IK10 impact resistance rating protects against accidental mechanical damage.
Applications
Ideal for crane operations, traffic management systems, industrial facilities, and outdoor surveillance requiring vibration-resistant mounting in extreme weather conditions.
What's Included
- Installation guide with drill template
- 2x M20 cable glands
- 5-year manufacturer warranty
