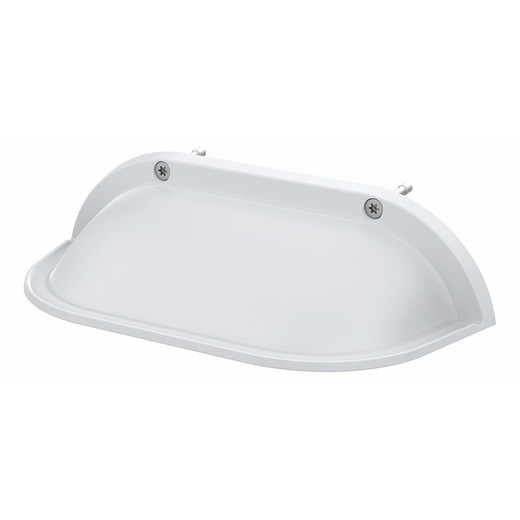

Axis TP3811 Weathershield Outdoor Camera Protection - 02075-001

Axis 02075-001 Weathershield Outdoor Camera Protection

Overview

The Axis TP3811 weathershield (model 02075-001) is a protective dome enclosure designed to extend the operational life of outdoor surveillance cameras in harsh weather. It provides a polycarbonate barrier against rain, snow, dust, and UV exposure while maintaining optical clarity for video capture. The anti-reflective window minimizes glare and lens reflections—critical when cameras face direct sunlight or highly reflective surfaces (glass storefronts, water bodies, snow-covered ground). The shield also offers impact resistance to guard against accidental collision and deliberate tampering, reducing maintenance costs and downtime on exposed installations.

Compatibility

The TP3811 is engineered for Axis compact dome cameras. Verify exact compatibility with your camera model before purchase—the shield must fit the camera's optical axis and mounting profile without vignetting or obstruction. Contact the manufacturer or your integration team to confirm fit for your specific model, as weathershields are precision-fitted accessories.

Installation Notes

The shield mounts via supplied hardware (screws and anchors) to wall or ceiling surfaces. Standard installation uses Torx fasteners. Ensure the polycarbonate window faces outward toward the scene; improper orientation will degrade image quality. Position the shield to avoid blocking the camera's field of view and to maintain drainage pathways in the gasket seal—water pooling inside the dome can cause condensation and fogging. Install in accordance with the provided installation guide to achieve rated weatherproofing.

What's in the Box

• 1x Axis TP3811 Weathershield
• Mounting hardware (screws and anchors)
• Installation guide
