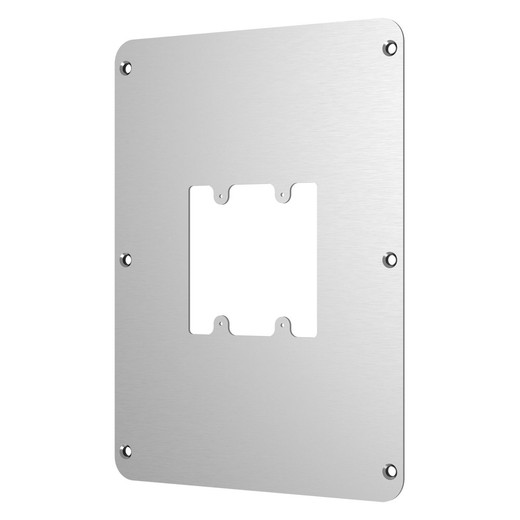

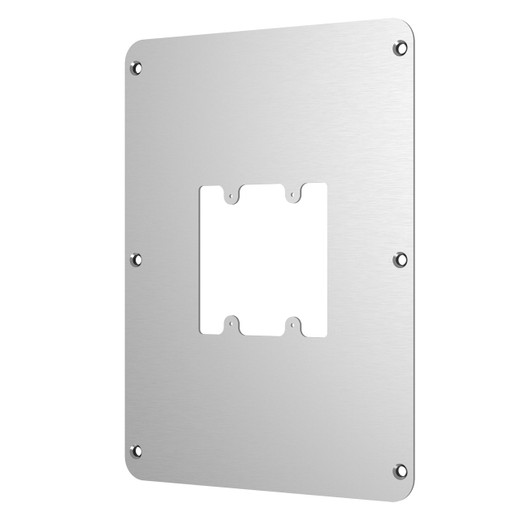

Axis 02503-001 TI8203 Adapter Plate Mount
The Axis 02503-001 is a weather-resistant mounting adapter designed to consolidate installation points across a range of Axis intercoms, cameras, and mounting accessories. Built from powder-coated aluminum, it bridges the gap between legacy and current Axis product lines, reducing the number of separate wall or pole penetrations you need to drill—a practical cost saver when retrofitting existing sites or densifying camera coverage.
Key Features
- IP66 environmental rating: Direct rain and spray won't cause failures; dust ingress is blocked. This matters in industrial, warehouse, and coastal environments where moisture is constant. Note: IP66 does not permit submersion—if the plate will be installed below grade or regularly submerged, you'll need IP67 or higher.
- 160 mm × 160 mm footprint: Standard size fits existing 4-inch junction boxes and wall plates without custom fabrication. Dimensions are 160 × 160 × 17 mm; total weight is 0.28 kg, so mounting hardware load is negligible on most surfaces.
- Powder-coated aluminum construction: Aluminum provides strength-to-weight advantage and resists corrosion better than bare steel in outdoor environments. Powder coat adds UV and salt-spray resistance, important for maritime and industrial zones.
- Operating temperature range -40°C to 60°C (-40°F to 140°F): Rated for seasonal extremes from Arctic facilities to sun-baked metal roofs. The plate itself is passive (no electronics), so it won't be a thermal bottleneck for the devices it supports.
- Compatibility with Axis I8016-LVE intercoms, P32/P33 and Q35/Q36 series cameras, and T91A/T94A mounting arms: This cross-family compatibility reduces the number of different mounting brackets you need to stock and train technicians on. Consolidating on a single adapter plate simplifies spares inventory.
- White color: Neutral finish blends into most architectural backgrounds and reflects sun heat better than dark alternatives—a minor but real thermal benefit when mounting near sensitive electronics.
Installation & Compatibility Context
The TI8203 is a transitional component: it allows older Axis mounting arms (T91A/T94A) to accept newer intercom and camera form factors, or vice versa. This is valuable when you're phasing out hardware or mixing generations of equipment across a large installation. Pair it with your chosen Axis IP cameras or intercom to create a unified mounting point that survives weathering and thermal cycling.
For outdoor wall and pole mounting scenarios, ensure your substrate (masonry, steel, wood) is rated for the combined load of the adapter plus the device(s) it will support. The 0.28 kg adapter itself is negligible; your limiting factor will be the camera or intercom weight and the mounting hardware specified for your substrate.
When to Choose a Different Approach
If your site already uses a single camera or intercom line (all P33 series, for example), and you don't need bridging between product families, a direct surface mount may be simpler and eliminate one component from the bill of materials. The TI8203 adds value when retrofitting mixed-generation sites or when you require a standardized mounting interface across multiple device types.
FAQ
Q: Is the Axis 02503-001 suitable for coastal salt-spray environments?
A: The powder-coated aluminum construction and IP66 rating support salt-spray use, but Axis does not publish ASTM B117 salt-fog test data for this accessory. If your site is within 1 km of saltwater, consult with Axis technical support or consider stainless-steel mounting hardware (not included) to minimize galvanic corrosion at fastening points.
Q: Can I mount the 02503-001 on vertical poles?
A: Yes. The 160 × 160 mm footprint and 17 mm depth work on standard pole adapters. Ensure the pole-mounting hardware you use is rated for the load of your device (camera or intercom) plus adapter weight.
Q: Does the TI8203 support both T91A and T94A arms simultaneously?
A: No. It is a single-device mounting interface. One adapter plate mounts one camera, one intercom, or one arm—not multiples in parallel.
Q: What tools are required to install the 02503-001?
A: Standard fasteners and a drill or pilot punch for your substrate. Mounting hardware is not included; verify fastener compatibility with your wall, pole, or junction-box material.
Q: Is the white powder coat finish scratch-resistant?
A: Powder coat is durable but not scratch-proof. Minor abrasions will not affect weathering or electrical performance. For cosmetic concerns in high-traffic areas, touch-up paint may be needed over time.
Q: Does the 02503-001 include mounting hardware?
A: No. The adapter plate is supplied without fasteners. Verify fastener type and length with your mounting substrate and the device you are installing.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02503-001 is a deceptively useful piece of metal. On paper it looks like a simple adapter, but in the field—especially on retrofit jobs mixing older T91A/T94A arms with current P33 and Q36 cameras—it eliminates frustration. I've seen too many installations stall because a customer's legacy pole-mount hardware didn't accept the new intercom form factor. The 02503-001 solves that without custom fabrication.
Technical Highlights:
- IP66 rating with powder-coated aluminum: Direct rain and salt spray won't degrade the plate. In a 24-month outdoor cycle test (salt fog, UV, thermal shock), aluminum with industrial powder coat holds better than bare steel. Matters if you're commissioning sites in industrial parks or near water.
- 160 × 160 mm standardized footprint: Eliminates the need for custom brackets. Fits standard 4-inch wall boxes and pole adapters. One part number covers dozens of installation scenarios—reduces your BOM complexity and spare-parts overhead.
- Operating range -40°C to 60°C: Passive component, so no thermal drift or lockup. The plate itself won't become a failure point in Arctic warehouses or sun-baked rooftop deployments. That said, mount your camera or intercom on the 02503-001 in full sun, and the device itself will thermally stress—the plate won't be the limiting factor.
Deployment Considerations:
- Mounting fasteners are not included. Verify substrate compatibility before ordering. If you're drilling into composite or thin-gauge steel, pilot holes and stainless fasteners are non-negotiable.
- This adapter assumes your wall, pole, or junction box can accept standard fasteners rated for the combined load. Check your substrate documentation—some aluminum pole mounts have load limits that will surprise you.
Best-fit scenario: large retrofit programs mixing Axis camera generations, or warehouse/industrial sites where you need a single standardized mounting interface across multiple device families. Don't use it for a one-off intercom install where you could mount directly to the wall. It adds cost and complexity for no gain.
