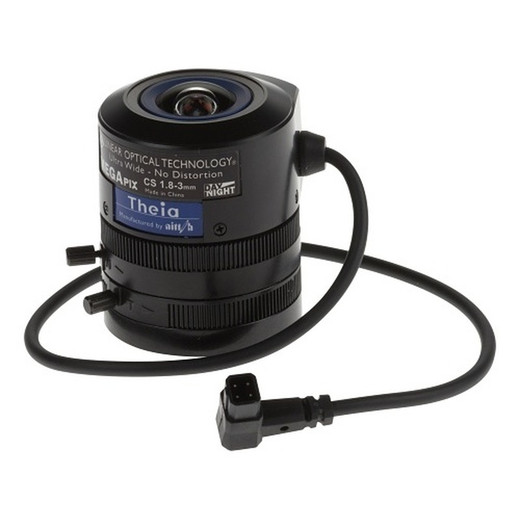

Axis 5503-161 Theia Ultra Wide 1.8-3mm Varifocal Lens
The Axis 5503-161 is a compact, fast varifocal lens engineered for Axis IP cameras requiring expansive single-frame coverage without field replacement. Its 1.8–3mm range and F1.8 maximum aperture address the practical constraint most integrators face: balancing wide-area surveillance with sufficient light gathering in dim or variable lighting. This is a purpose-built accessory for warehouse perimeter monitoring, large building interiors, and multi-zone security deployments where one camera must cover substantial ground.
Key Features
- 1.8–3mm Varifocal Range: Delivers approximately 110° to 65° horizontal field of view depending on sensor size and focal position. The wider extreme (1.8mm) captures expansive scenes; the tighter end (3mm) narrows the angle when you need to isolate activity in a specific zone. This on-site adjustability eliminates the cost and downtime of swapping fixed lenses — set it once during commissioning, and you're done.
- F1.8 Maximum Aperture: A fast f-stop means more light reaches the sensor. In a 50 lux warehouse with mixed fluorescent and natural light, F1.8 lets you maintain usable image brightness without cranking up gain (which adds noise) or relying entirely on IR illumination. Directly supports low-light surveillance without separate IR infrastructure.
- Varifocal Flexibility: Unlike fixed-focal-length lenses, the 5503-161 lets you dial in the exact field of view your scene demands. Warehouse aisles may need 2.2mm; an exterior perimeter might call for 2.8mm. Adjusting focal length on-site eliminates trial-and-error lens purchasing and reduces inventory overhead for integrators managing multi-site deployments.
- Premium Optical Construction: Axis's Theia lens line is designed to minimize distortion and chromatic aberration across the entire focal range. This matters when you're zooming and panning — image quality remains consistent at both extremes. Sharpness retention is especially important for forensic video review, where pinpointing faces or license plates depends on edge clarity.
- Compact, Modular Form Factor: The varifocal design is physically compact, fitting on mid-size to larger Axis camera bodies. It integrates with standard Axis mount threads, so no proprietary adapters or rework of existing camera brackets. If you're retrofitting a camera or building a new system, the 5503-161 slides into your existing mechanical envelope.
- Robust All-Condition Optics: Designed for both indoor and outdoor installations. The lens glass and housing tolerate temperature swings and dust exposure typical of warehouse, parking lot, and building-facade environments. Not rated for full submersion, but direct rain and ambient dust won't degrade performance.
Integration & Compatibility
The 5503-161 is compatible with Axis surveillance cameras that support varifocal lens mounts. Confirm your camera model's lens compatibility before ordering — not all Axis cameras accept varifocal lenses. Integration is straightforward: mount the lens, focus using the camera's varifocal adjustment mechanism (manual or motorized, depending on the host camera), and commission. No special drivers or firmware updates required. Works with any network video recorder or VMS that supports the connected Axis camera.
Deployment Considerations
The varifocal adjustment is typically a one-time setting during installation. If your scene layout changes significantly after commissioning (e.g., new shelving blocks a sightline), you can re-adjust on-site without replacing hardware — a real operational advantage for long-term, evolving deployments. The F1.8 aperture is particularly valuable in warehouse environments where overhead lighting is often inadequate or inconsistent. Pair this lens with appropriate camera mounting hardware suited to your facility's structural constraints.
When to Choose a Different Model
If your Axis camera requires a fixed focal length (check your camera's lens-mount compatibility), select a fixed-lens variant from the Axis Theia line. If you need longer focal lengths for perimeter surveillance or distant identification, consider a higher-magnification varifocal or motorized zoom lens in the Axis portfolio — the 5503-161 is optimized for ultra-wide coverage, not telephoto work.
Frequently Asked Questions
Q: What Axis cameras accept the 5503-161 lens?
A: The 5503-161 fits Axis cameras with varifocal lens mounts. Check your camera model's datasheet or compatibility documentation before purchase. Axis support can confirm if your specific model is compatible.
Q: Can I adjust the focal length after installation?
A: Yes. The varifocal mechanism allows on-site adjustment from 1.8mm to 3mm. Most Axis cameras provide a manual adjustment dial or motorized varifocal control (depending on the model). You can refocus without removing or replacing the lens.
Q: Does the 5503-161 include motorized focus or manual only?
A: The lens itself is varifocal; the focus mechanism depends on your host Axis camera. Some Axis models support motorized varifocal adjustment via the camera firmware; others require manual adjustment. Confirm with your camera's specification sheet.
Q: What's the minimum illumination with this lens?
A: The F1.8 aperture maximizes light intake; minimum illumination depends on your camera's sensor and scene. In most warehouse environments (50–100 lux overhead lighting), the 5503-161 delivers usable image brightness without IR supplementation. Darker scenes may require IR illumination.
Q: Is the lens weatherproof?
A: Yes, the lens is engineered for indoor and outdoor surveillance. It tolerates direct rain and dust exposure, making it suitable for covered outdoor areas, warehouse loading docks, and interior spaces. Not rated for full submersion.
Q: Can I use the 5503-161 as a replacement for a fixed lens?
A: Only if your Axis camera accepts varifocal lenses. The 5503-161 is not compatible with fixed-lens-only camera bodies. Verify your camera's lens-mount type before upgrading.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5503-161 solves a real problem in wide-area surveillance: how to capture expansive coverage without sacrificing light sensitivity or forcing a lens swap on-site. The 1.8–3mm varifocal range and F1.8 aperture are the key specs here. In a typical warehouse environment with mixed fluorescent and natural lighting (50–150 lux), that fast aperture cuts your dependence on IR fill light, reduces image noise, and lets you dial the field of view to match your exact perimeter or interior layout.
Technical Highlights:
- 1.8–3mm Varifocal Range: Spans roughly 110° to 65° horizontal field of view (varies by sensor size). Means one lens covers everything from warehouse aisles (2.2mm) to building perimeters (2.8–3mm) without hardware swaps — a cost and downtime saver for multi-zone deployments.
- F1.8 Maximum Aperture: Roughly 2–2.5 stops faster than typical F2.8 fixed warehouse lenses. That's a 4–6x advantage in light-gathering power. Directly translates to usable video in dim conditions and fewer "enhance with IR" retrofit conversations.
- Compact Varifocal Form Factor: Fits standard Axis varifocal-compatible camera mounts. No proprietary brackets or rework — integrates into your existing Axis ecosystem without mechanical surprises.
Deployment Considerations:
- The 5503-161 requires a varifocal-compatible Axis camera body. Not all Axis models support varifocal lenses — confirm compatibility before spec'ing. Fixed-lens-only cameras need fixed optics.
- Varifocal adjustment is typically manual or motorized depending on the host camera model. Confirm your camera's varifocal control mechanism (dial, motor, firmware setting) before installation. This is a one-time setup; once focused, the lens holds its setting.
- Weather tolerance is solid for covered outdoor and interior use — direct rain and dust don't degrade performance — but this isn't a submersible optic. If your mounting point faces spray or wash-down conditions, consider protective housing or a higher IP-rated camera body.
Deploy the 5503-161 where you need single-camera wide-area coverage and consistent image quality across variable lighting: warehouse aisles, parking lot perimeters, building lobbies, and shipping docks. Pair it with a mid-range or higher-resolution Axis camera body, and you'll get sharp, forensic-quality surveillance without the overhead of motorized zoom or separate IR rigs. Best fit: integrators managing retrofit projects where lens flexibility and light sensitivity are non-negotiable.
