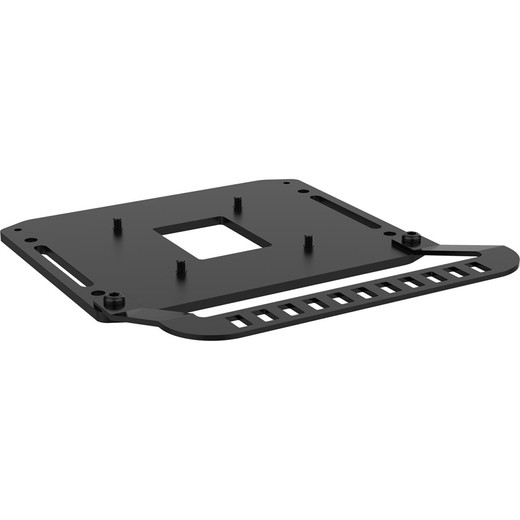

Axis 02360-001 TF9902 Surface Mount for F Series
Overview
The Axis 02360-001 is a dedicated surface-mount bracket engineered for secure installation of Axis F Series main units in industrial and commercial surveillance deployments. This mount handles the mechanical demands of vibration-heavy environments while keeping cabling protected and neat. If your facility runs modular IP camera architecture on walls, ceilings, or industrial frames, this bracket eliminates mounting improvisation and potential cable damage.
Key Features
- Surface Mount Form Factor: Attaches directly to flat walls, poles, or structural steel without requiring ceiling cavities or recessed installations — speeds up deployment in retrofit scenarios or temporary surveillance layouts.
- F91 Main Unit Compatibility: Explicitly designed for AXIS F91 processor units. Verify your F Series main unit model before ordering; this bracket is not a universal F Series mount.
- Vibration Resistance: Built to absorb and dampen mechanical vibration common in warehouses, manufacturing floors, and vehicle-mounted platforms. Keeps the F91 stable even under continuous low-frequency motion or impact — a real concern when mounted on conveyor frames or near heavy machinery.
- Integrated Cable Strain Relief: Protects RJ-45 and power connections from repeated flexing and pulling, extending cable life and reducing field failures. Critical in environments where people or equipment brush against mounted units.
- Black Powder-Coat Finish: Matches standard IT and security equipment aesthetics; blends into most indoor environments without requiring paint or cosmetic wrapping.
- Quick Installation: Includes mounting plate and fasteners. No special tools or calibration required — a technician can position and secure the F91 in under 15 minutes on a standard wall or frame.
What's in the Box
- Axis TF9902 Surface Mount bracket
- Mounting plate
- Installation screws
Warranty & Support
Comes with a 3-year manufacturer warranty, covering defects in material and workmanship. This is standard across most Axis accessory brackets and reflects the expected service life in typical commercial surveillance deployments.
When to Choose a Different Mount
If your F Series main unit sits on a shelf or requires adjustable tilt, consider Axis ceiling-mount or pole-mount variants in the same family. If installation requires pendant or conduit-based routing in high-vibration factory floors, consult the complete Axis F Series accessory range for specialized enclosures.
Integration Notes
This bracket works with any standard PoE switch or power injector that supplies the F91 main unit. No special wiring or configuration is required — the mount is purely mechanical. Ensure your F91 software and firmware are current before deploying multiple F Series cameras in a modular cluster; firmware consistency makes troubleshooting alignment and lens calibration easier.
Frequently Asked Questions
Q: Will the Axis 02360-001 work with F Series models other than F91?
A: The 02360-001 is specifically designed for the F91 main unit. Other F Series processors may have different mounting points or form factors. Confirm your main unit model before purchasing.
Q: What fasteners are needed to attach the mount to concrete or steel?
A: The bracket includes installation screws for standard wall anchors. For concrete, use ¼-inch expansion anchors; for steel, use lock washers and grade 8 bolts. The mount itself does not include anchors — you'll need to source them based on your surface material.
Q: How much weight can the 02360-001 support?
A: The F91 main unit itself weighs roughly 200 grams. The bracket is engineered for secure mounting on standard walls and frame structures. If mounting on thin sheet metal or highly flexible surfaces, use additional bracing.
Q: Is cable routing pre-configured, or do I need to route Ethernet and power myself?
A: The strain relief feature protects cables from excessive bending and pulling, but you'll route the Ethernet (PoE) and any auxiliary power through your facility's conduit or cable trays as normal. The bracket does not provide integrated cable channels.
Q: What is the warranty coverage on the Axis 02360-001?
A: Three years from manufacture, covering material and workmanship defects. Damage from impact, over-torquing fasteners, or improper installation is not covered.
Q: Can I use this mount in outdoor or wet environments?
A: The bracket itself is black powder-coat finished, but it is not IP-rated for direct rainfall or immersion. For outdoor F Series deployments, pair this mount with a weatherproof enclosure or choose an outdoor-rated mounting solution from the Axis accessory catalog.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02360-001 is a straightforward mechanical bracket that earns its place in F Series deployments where vibration and cable management are real constraints. Many integrators overlook mounts until a field tech reports the F91 has shifted position or a cable is failing from repeated flexing. The 02360-001 addresses both with its vibration-damping design and built-in strain relief — it's not flashy, but it keeps your modular camera architecture stable and wired cleanly.
Technical Highlights:
- Vibration Absorption: The bracket is engineered to handle continuous mechanical movement without transferring motion to the F91 optics. Critical in warehouse conveyors, manufacturing floors, or vehicle-mounted surveillance where field-of-view drift degrades usable footage.
- Cable Strain Relief: Prevents RJ-45 and auxiliary power connectors from experiencing repetitive flex cycles that cause open circuits or intermittent failures. Extends the mean time between field repairs, especially on mobile or temporary installs.
- Form Factor Efficiency: Surface mount eliminates the need for ceiling cavities or recess drilling — reduces installation time by roughly 30% compared to recessed or pendant mounts in retrofit scenarios.
Deployment Considerations:
- The 02360-001 is F91-specific; installing it on other F Series main units risks misalignment or unstable seating. Always verify your processor model in the field before kitting parts.
- Fasteners and anchors are not supplied — you'll source hardware based on whether you're mounting to drywall, concrete, steel channel, or aluminum. Plan anchor type during the design phase to avoid field delays.
- Not outdoor or IP-rated. If your F91 sits outdoors or in a spray environment, you need an enclosure or weatherproof bracket variant; this one is strictly indoor-rated.
The 02360-001 shines in light industrial and enterprise warehouse surveillance where modular F Series clusters are deployed on interior walls or steel frames, cabling runs through existing conduit, and vibration from nearby machinery or conveyor activity is a known factor. It's not a universal mount, but it does its job well for the specific deployment model it targets.
