Axis 01714-001 Terminal Block to 3.5mm Audio Extension

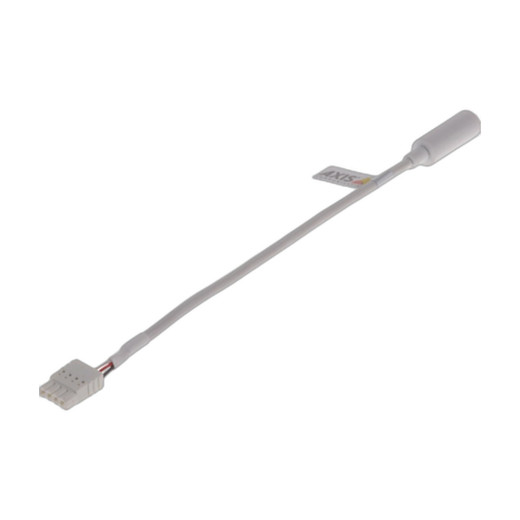

The Axis 01714-001 is a passive audio conversion cable designed to bridge the gap between professional-grade terminal block audio outputs found on Axis IP cameras and network video recorders, and standard consumer or professional 3.5mm audio inputs. If you're integrating Axis surveillance hardware with external speakers, mixers, amplifiers, or recording gear that uses 3.5mm connectors, this adapter eliminates the need for custom wiring harnesses or third-party intermediaries.
Key Features
- Terminal block to 3.5mm conversion: Bridges professional screw-terminal audio outputs on Axis recorders and select cameras to standard 3.5mm (1/8-inch) audio jacks — reduces integration complexity and eliminates the need for custom crimp work in the field.
- Passive design: No power supply, no active electronics, no single point of electronic failure — audio signal passes directly from source to destination, ensuring transparent signal fidelity for monitoring or event recording.
- Compact form factor: Small enough to fit in confined equipment racks and wall-mounted enclosures without consuming significant cable management space.
- Durable construction: Built to withstand repeated connection cycles and secure screw-terminal connections that won't loosen under vibration or thermal cycling typical in 24/7 security deployments.
- Straightforward installation: Terminal block side terminates with standard screw connectors (no soldering); 3.5mm side uses a molded jack. Requires no special tools beyond a small screwdriver.
- Universal audio compatibility: Works with any third-party audio device that accepts a standard 3.5mm stereo or mono input — speakers, mixers, USB audio interfaces, and external recorders.
Integration & Compatibility
The 01714-001 is purpose-built for Axis network video recorders and Axis IP cameras equipped with terminal block audio outputs. It is not compatible with RCA, XLR, or USB audio connectors. Before ordering, verify that your Axis device has a labeled audio output terminal block (typically 3-pin or 4-pin screw connectors on the rear or side panel). Consult your device's installation guide or contact Axis technical support if you're unsure whether your specific model includes audio output terminals.
When integrating audio into a network video recording environment, plan for balanced vs. unbalanced signal expectations. This cable carries unbalanced audio, which is typical for short runs (under 50 feet) in indoor or climate-controlled equipment rooms. For longer distances or electrically noisy environments (warehouses, factories), consider routing audio through a balanced pre-amplifier or audio interface before connection.
What's in the Box
- 1x Axis Terminal Block to 3.5mm Audio Extension cable
- 1x User installation guide
Frequently Asked Questions
Q: Does the 01714-001 support mono and stereo audio?
A: Yes. The terminal block side accepts both mono (single-channel) and stereo (dual-channel) audio inputs depending on how many terminals are wired on your Axis device. The 3.5mm side is stereo-capable, so stereo sources will transmit full stereo content to compatible receivers.
Q: What is the cable length?
A: The manufacturer's documentation does not specify total cable length. Contact Axis support or the vendor for exact measurements before ordering if cable run distance is a critical factor in your installation.
Q: Can I use this cable with non-Axis cameras or recorders that have terminal block audio outputs?
A: The cable itself is generic in function, but it is specified and tested only with Axis products. If your non-Axis device uses industry-standard 3-pin or 4-pin screw-terminal audio blocks with compatible pinout, it may work, but this is not guaranteed. Verify terminal pinout compatibility before attempting integration.
Q: Is the 01714-001 shielded for electrically noisy environments?
A: The manufacturer's specification sheet does not detail shielding or cable construction. For deployments in high-EMI environments (near HVAC systems, power distribution panels, or RF transmitters), consider running audio through a shielded conduit or using a balanced audio pre-processor.
Q: What if the 3.5mm jack is damaged?
A: The cable is a single, non-modular unit. If the 3.5mm connector is damaged, the entire cable must be replaced. Store and handle the connector carefully during installation to avoid mechanical stress.
Q: Can I terminate this cable into a longer 3.5mm extension cord?
A: Yes. Standard 3.5mm audio cables and extension cords will mate with the 3.5mm jack on the 01714-001, allowing you to extend the audio run further if needed. However, longer unbalanced runs (over 50 feet) may pick up noise; a short, quality extension cord is preferable.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 01714-001 solves a real integration friction point in Axis surveillance deployments — you've got a recorder or camera with professional audio outputs on screw terminals, but your downstream audio gear (a speaker system, a paging amplifier, a third-party event recorder) expects a 3.5mm jack. This cable bridges that gap without requiring field-side soldering, custom crimp connectors, or a contractor call.
Technical Highlights:
- Passive conversion: Zero active electronics mean zero power draw, zero latency, zero potential for a failed component to silence your audio feed. Audio fidelity is limited only by the cable itself and the impedance matching between source and load — no codec or digitization loss.
- Screw-terminal security: Professional-grade connection method (vs. push-in connectors) resists vibration and thermal cycling. You won't experience intermittent audio dropouts from loose connections — a real concern in data centers and equipment rooms with constant thermal swings.
- Stereo/mono flexibility: Terminal block wiring determines the channel count; the 3.5mm side handles both transparently. Mono cameras output one channel, stereo recorders output two — no re-configuration needed.
Deployment Considerations:
- Cable length not specified: The documentation does not state whether this is a 6-foot, 10-foot, or 25-foot run. Measure your actual equipment-to-audio-device distance before assuming the length is adequate. If the supplied length is short, plan to chain a standard 3.5mm extension cord — that's a safer bet than guessing.
- Unbalanced signal over distance: At unbalanced audio levels over longer distances (50+ feet), you'll pick up 60Hz hum and other EMI. If your audio run is long, insert a balanced pre-amplifier or XLR audio interface at the Axis end to isolate the signal before the long run to the speaker or mixer.
- Pinout assumption: This cable assumes standard Axis terminal block pinout. Before your first installation, confirm the pinout in the device manual. If you wire it backward, you may get inverted phase or no audio at all — easily fixed, but easy to overlook on a first deployment.
Position this cable as your go-to adapter for integrating Axis recorders or cameras with consumer/prosumer audio equipment in control rooms, monitoring stations, and integrated security centers where standard 3.5mm connectivity is the norm. It eliminates the custom-wiring workaround and delivers reliable, low-latency audio passthrough. For high-security installations with long audio runs in electrically noisy environments, pair it with a balanced audio interface upstream.
