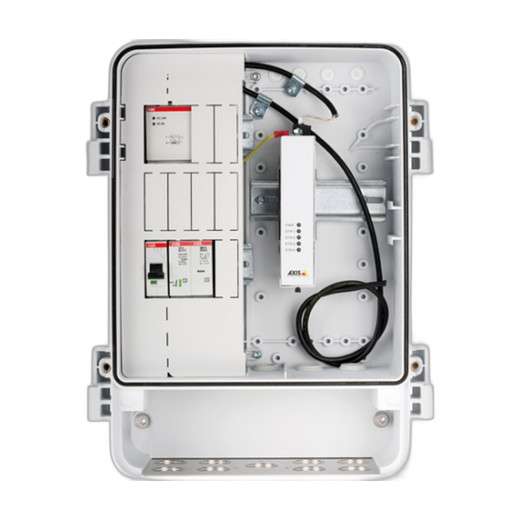

Axis 5505-351 Outdoor Media Converter Cabinet
The Axis 5505-351 is a pre-assembled, ruggedized outdoor enclosure purpose-built to house and protect sensitive surveillance infrastructure in challenging field conditions. Unlike generic junction boxes, this cabinet combines environmental sealing, impact resistance, integrated power delivery, and surge protection — eliminating the need for separate sourcing and reducing deployment complexity on perimeter security, industrial, and remote site installations.
Overview
This cabinet addresses a specific pain point: outdoor surveillance deployments require equipment protection, reliable power, and surge mitigation, but field-assembled solutions introduce assembly errors, incompatibility headaches, and extended commissioning timelines. The 5505-351 ships pre-wired and ready to mount, with a 12 VDC DIN power supply and integrated protection circuitry already installed. For teams building Axis IP camera networks in rain-prone, salt-spray, or high-impact environments, this eliminates guesswork around enclosure selection.
Key Features
- IP66 environmental rating: Dust-tight construction and high-pressure water jet resistance mean rain, spray, and airborne contaminants won't compromise internal components. Skip this only if you need IP67 (full temporary submersion) or higher.
- IK10 impact protection: Can withstand severe mechanical blows — relevant for sites with heavy equipment, vehicle traffic, or vandalism risk. Rated for 20 joules (equivalent to a 5 kg mass dropped from 40 cm).
- NEMA 4X stainless steel enclosure: Stainless construction resists salt spray and long-term corrosion, so cabinet life extends in coastal, humid, or chemical-exposure environments. Matters most for multi-year deployments where enclosure replacement is inconvenient.
- 12 VDC DIN-rail mounted power supply included: Single integrated PSU eliminates separate power sourcing, reduces in-cabinet wiring labor, and ensures power delivery is pre-spec'd for Axis media converters and low-power surveillance devices. One less component to procure and integrate.
- Built-in surge protection and breaker: Integrated transient voltage suppression and circuit breaker protect sensitive optics-based and network devices from electrical spikes — common risk near high-voltage infrastructure, lightning-prone sites, or where multiple power feeds converge.
- Pre-assembled, ready-to-deploy design: Arrives fully wired with DIN rail, power terminals, and grounding already configured. Reduces field assembly risk, shortens commissioning windows, and lowers deployment labor cost versus assembling a blank enclosure from scratch.
- Axis ecosystem integration: Engineered for Axis surveillance media converters and low-power networked devices, with verified mounting and power specifications for seamless fit within standardized Axis deployments.
Deployment Context
Common use cases include outdoor fiber-to-Ethernet media converter placement (where fiber drops terminate and PoE or 12VDC distribution begins), remote camera node consolidation, and perimeter equipment hubs in parking lots, industrial yards, and utility installations. The cabinet's compact footprint and integrated PSU make it suitable for wall or pole mounting at network edge points where space and power availability are constrained.
For integrators designing outdoor camera systems, the pre-assembled 5505-351 reduces bill-of-materials complexity and shortens installation schedules. Verify thermal dissipation capacity if stacking high-power components or deploying in extreme climates — manufacturer guidance on internal temperature limits should be consulted before commissioning dense component configurations.
Frequently Asked Questions
Q: Can the 5505-351 house Axis PTZ cameras or only media converters?
A: The 5505-351 is designed as a mounting and power-delivery platform for media converters, switches, and low-power networked devices. It is not a surveillance-grade power distribution unit for powering cameras directly. Verify compatibility with your specific components against the DIN rail and 12VDC power specification before commissioning.
Q: What's the maximum ambient operating temperature range?
A: Thermal and operating range specifications for the 5505-351 are available in the full product datasheet. For high-density component configurations or deployment in extreme climates (above 50°C / 122°F ambient), consult the manufacturer's thermal guidance to avoid component derating.
Q: Does the integrated power supply support higher voltages or alternative DC outputs?
A: The included power supply is fixed-output 12 VDC. If your network devices require 24 VDC, PoE, or multi-output power distribution, you will need to source an alternative PSU or power injection solution and verify mechanical/electrical fit within the cabinet.
Q: Is the 5505-351 NEMA 4X rated in all climates, or are there coastal-environment limitations?
A: NEMA 4X stainless construction resists corrosion from salt spray, but extremely harsh coastal or chemical-exposure environments may require supplementary maintenance. Consult site-specific corrosion studies and the manufacturer if deployment is in high-salinity or corrosive-chemical zones.
Q: Can I integrate the 5505-351 into a broader power-management or remote-monitoring system?
A: The cabinet's integrated breaker and surge protection are passive. For remote status monitoring, environmental sensing, or centralized power management, you will need to add external monitoring devices or UPS integration. Verify space and power budget within the cabinet before specifying supplementary hardware.
Q: What is the warranty coverage on the 5505-351?
A: Standard Axis warranty terms apply. Consult the product datasheet or contact the supplier for specific coverage details, including parts replacement policy and labor terms.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
The Axis 5505-351 fills a legitimate gap in outdoor surveillance infrastructure — it's a pre-assembled platform that eliminates field-assembly variables and shortens commissioning cycles. The IP66/IK10 combination addresses both environmental ingress (rain, dust, salt spray) and physical threats (vandalism, impact from heavy equipment), and the integrated 12 VDC PSU with surge protection reflects standard industry practice for sensitive optics and networking gear. For Axis-centric deployments, this cabinet provides standardized compatibility and eliminates SKU proliferation across projects.
Technical Highlights:
- IP66 rating plus IK10 impact resistance: Most generic outdoor enclosures spec one or the other; the 5505-351 delivers both. This matters on sites with vehicle traffic, high wind, or weather exposure where a single failure mode can cascade into network downtime.
- 12 VDC DIN PSU with built-in surge protection: Eliminates need to source external power supply and surge suppressor separately. Pre-integrated means correct voltage, amperage, and protection are already verified — one less integration variable on site.
- Stainless steel NEMA 4X construction: Extends cabinet lifecycle in coastal, humid, or industrial-chemical environments where standard powder-coated steel enclosures corrode within 3–5 years. Pays for itself in reduced replacement cycles.
Deployment Considerations:
- The 5505-351 is engineered for low-power media converters and network devices drawing well under 5A @ 12VDC. Do not attempt to power high-draw equipment (PTZ cameras, heaters, blowers) from the included PSU without verifying capacity first.
- Thermal management specs are critical for enclosed, sun-exposed installations in high-ambient climates. Dense component stacking in this cabinet can trap heat; verify air circulation strategy before commissioning in >45°C environments.
- The cabinet provides mounting and power distribution only — it is not a managed or monitored power device. If you need remote outlet control, environmental sensing, or UPS integration, budget for supplementary devices and verify they fit within the enclosure footprint.
The 5505-351 is the right choice for integrators and IT architects standardizing on Axis outdoor media converter deployments where equipment protection, integrated surge mitigation, and rapid deployment matter more than feature-rich smart power management. Skip this if your site requires 24 VDC output, multi-outlet load switching, or integrated environmental monitoring — those demands point toward a larger, managed enclosure platform.
