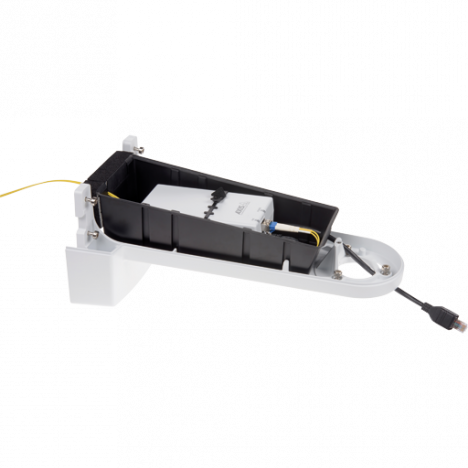

Axis 5506-951 Wall Mount Bracket
The Axis 5506-951 is a professional wall mount designed to position Axis dome and compact box cameras in surveillance installations where environmental durability and secure cable management matter. Built from aluminum, this bracket combines structural rigidity with integrated weatherproofing — critical for outdoor deployments, building perimeters, and industrial facilities where equipment exposure to moisture, dust, and impact is inevitable.
Key Features
- Aluminum Construction: Aluminum resists corrosion far better than steel in salt spray or coastal environments, reducing maintenance cycles and extending bracket life in outdoor deployments. Weight is kept low without sacrificing strength — important when mounting on aging facade or soffit materials.
- IP66 Weather-Sealed Compartment: The sealed junction box protects power supplies, PoE midspan devices, and network connectors from direct rain and dust ingress. This is not cosmetic protection — it prevents connector oxidation, moisture bridging on PCBs, and intermittent network failures that plague outdoor installations. IP66 means heavy spray and temporary flooding don't compromise the connection.
- Pre-Terminated IP66 RJ45 Connector: Factory-sealed RJ45 eliminates field termination errors and reduces labor time on site. A poor outdoor termination is a common root cause of intermittent link loss; this connector ships sealed and ready to mate with standard Ethernet.
- IK10 Impact Resistance: Rated to withstand 20 joules of impact — equivalent to a 2 kg hammer dropped from 1 meter repeatedly. In high-vandalism zones, perimeter fencing, or loading dock areas, this rating absorbs intentional strikes and accidental equipment contact without housing or bracket failure.
- Discrete Axis White Finish: Blends into modern facade color schemes and CCTV tower installations. Neutral appearance reduces visual clutter compared to industrial gray or black brackets, important for facilities managing aesthetic compliance.
- Fits AXIS M55, P56, Q37, Q60, Q61 Series: Compatibility matrix spans entry-level domes through 4K fixed and PTZ models. Verify mount pattern and sensor size in your target camera spec sheet before ordering — not all cameras in a series accept this bracket.
Integration & Compatibility
The 5506-951 is designed for Axis IP camera installations, including both standard surveillance and specialized optics models. The integrated junction compartment supports standard PoE switches and inline PoE injectors; confirm your camera's power draw against your PoE source's available wattage (typical Axis domes draw 8–15W). If deploying with a camera requiring PoE+, ensure your switch delivers IEEE 802.3at or higher.
Network topology: the RJ45 connector is field-ready for standard Cat5e or Cat6 runs. Do not attempt to re-terminate this connector in the field — if damage occurs, contact the manufacturer for replacement. Cable routing through the compartment requires basic slack management; avoid sharp bends tighter than the cable's specified bend radius.
Deployment Scenarios
Outdoor perimeter: pair with entry-level Axis M55 dome for consistent color matching and certification stacking. Industrial facility: IK10 and IP66 together eliminate most weather-related field service calls. Retrofit installations on existing aluminum or composite facade: verify mounting surface load rating before installation.
What's in the Box
The specific contents (mounting hardware, brackets, fasteners, and installation documentation) are not detailed in the available evidence. Contact the manufacturer or supplier for an exact packing list before ordering for a new project.
Frequently Asked Questions
Q: Can I use the 5506-951 indoors?
A: Yes. The IP66 rating is unnecessary indoors, but there's no restriction. Use it if mounting aesthetics or cable organization benefits from the sealed compartment design.
Q: What cameras does the 5506-951 mount?
A: Axis AXIS M55, P56, Q37, Q60, and Q61 series cameras. Verify your specific camera's mounting pattern in its datasheet before purchase — not all models within a series may be compatible.
Q: Is the RJ45 connector field-replaceable?
A: No. The pre-terminated IP66 connector is not designed for field re-termination. If damaged, contact the manufacturer for a replacement unit.
Q: What is the load capacity?
A: Load capacity is not specified in the available evidence. Contact the manufacturer with your camera model and weight to confirm mounting safety.
Q: Does the 5506-951 work with non-Axis cameras?
A: The bracket is designed specifically for Axis camera mounting patterns. Attempting to mount third-party hardware may void warranties and compromise safety. Verify compatibility before ordering.
Q: What's the warranty on the bracket?
A: Warranty terms are not specified in the available evidence. Check with the supplier or manufacturer for coverage details.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5506-951 is a straightforward mounting solution that eliminates two common field headaches: loose outdoor connections and bracket corrosion over years of exposure. The sealed RJ45 compartment is the differentiator here — I've watched too many integrators field-terminate outdoor connections, only to see intermittent layer-2 failures six months later. The 5506-951 ships pre-sealed, which cuts that risk significantly.
Technical Highlights:
- IP66 Compartment: Direct rain and dust ingress won't compromise your PoE injector or network termination. This is not overkill for outdoor perimeter or industrial sites — moisture bridging on unprotected RJ45 pins is a documented failure mode in humid climates.
- IK10 Impact Rating: Survives a 20-joule strike (2 kg dropped 1 meter). Means the bracket won't fail under vandalism or accidental impact near loading docks or high-traffic zones. More robust than the IK08 standard you'll see on cheaper mounts.
- Aluminum + Sealed Connector: Corrosion resistance in coastal or salt-spray environments extends service life by 3–5 years compared to untreated steel brackets. Reduces total cost of ownership on multi-year contracts.
Deployment Considerations:
- Verify camera mount pattern against the AXIS M55, P56, Q37, Q60, Q61 series specs — not all cameras in a series accept this bracket. A mismatch discovered on-site costs labor and delay.
- Load capacity is not published in the available evidence. For cameras exceeding 2 kg, confirm structural adequacy with the manufacturer before mounting. Wall surface integrity matters — don't trust a 15-year-old brick facade without anchor verification.
- The pre-terminated RJ45 is a strength and a potential constraint — if the connector or cable is damaged, you can't field-repair it. Always carry spares on service calls.
The 5506-951 is the right choice for outdoor perimeter and industrial deployments where weather exposure and environmental durability are real constraints. It's not necessary for sheltered indoor sites, but it won't hurt either. Pair it with entry-level Axis M55 domes for color consistency and matching IP ratings, or with higher-end Q60/Q61 PTZ in mixed installations.
