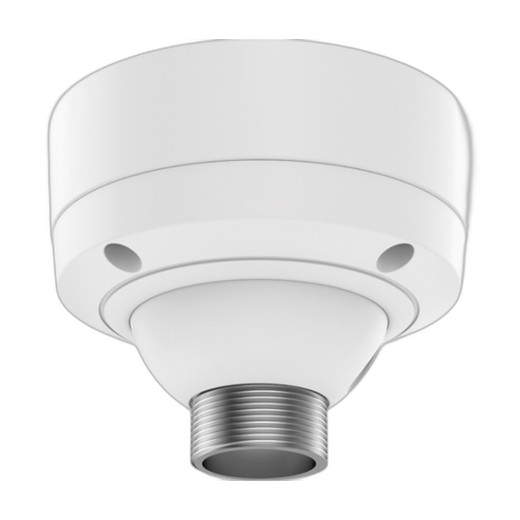

Axis 5507-461 T91B51 Ceiling Mount
The Axis 5507-461 is a ceiling mount engineered to solve one specific problem: installing surveillance cameras on non-flat surfaces. Standard ceiling mounts fail on angled ceilings, soffits, and architectural features common in parking structures, atriums, warehouses, and retail environments. This mount compensates for angles up to 45 degrees, which means you can position cameras where they actually need to be rather than where flat ceilings happen to exist.
Key Features
- 45-Degree Angle Compensation: Mounts directly to sloped ceilings without requiring adapter plates or creative bracket stacking — saves installation time and reduces the risk of camera misalignment. Critical for parking garage ramps, vaulted atriums, and soffit installations where traditional mounts simply won't work.
- 1.5" NPS Thread Interface: Compatible with all Axis pendant kits that use 1.5-inch NPT/NPS threads, plus the AXIS T91A05 fixed camera holder. This standardization means you're not locked into a single camera model — you can swap camera bodies without replacing the mount infrastructure.
- Integrated Swivel Design: The built-in ball joint allows rotational adjustment after installation and absorbs impact loads. Protects the camera from shock damage in high-traffic areas (pedestrian zones, dock areas) and eliminates the need for a separate pan-tilt mechanism if you only need minor directional tweaks.
- Indoor and Outdoor Rated: Durable construction withstands rain, UV exposure, and temperature swings in both covered (atriums, covered parking) and fully exposed environments. No separate housing or protection enclosure needed for covered exterior locations.
- Adjustable Height via Extension Pipes: Optional extension pipes (30 cm and 1 meter, sold separately) let you raise the camera precisely without custom fabrication or overly long pendant kits. Useful when soffit height is shallow or you need standoff distance from a pillar or beam.
- Minimal Footprint: Compact form factor keeps ceiling clutter to a minimum and reduces the visual profile — matters in retail and hospitality environments where aesthetics are part of the tenant's brand.
Integration and Compatibility
The 5507-461 is part of the Axis mounting ecosystem and pairs with any Axis pendant camera kit using 1.5" NPS threads. This includes dome, turret, and bullet-form cameras in the Axis portfolio. If you're standardizing on Axis IP cameras, this mount extends compatibility across multiple product lines without requiring separate bracket purchases. The ceiling mount category includes alternative fixed and adjustable solutions — use this mount when angle compensation is the primary requirement.
Proper installation requires anchor bolts or fasteners rated for your specific ceiling material (concrete, steel, drywall with backing). Consult the mounting template and datasheet for load ratings and fastener specifications before ordering anchors.
When to Choose a Different Model
If your ceiling is flat and you need only basic fixation, a simpler fixed mount will cost less and install faster. If you need pan-tilt-zoom motion beyond the swivel's capability, specify a separate PTZ bracket or motorized pendant. If angle compensation is needed but you prefer a different thread size or form factor, check the broader Axis catalog for alternate mounting hardware.
Deployment Context
This mount is most valuable in renovation projects, multi-level facilities, and venues with non-uniform ceiling heights. It eliminates the "camera pointing at the wrong angle" problem that occurs when installers force a standard mount onto a sloped surface. In parking structures with ramp slopes, this becomes essential — the camera's sensor plane aligns with the actual viewing angle rather than being cocked upward or downward.
Frequently Asked Questions
Q: What ceiling materials can the 5507-461 mount to?
A: The mount itself is universal; compatibility depends on the fasteners you select. Concrete requires concrete anchors (powder-actuated or epoxy-set). Steel requires lag bolts or self-tapping fasteners. Drywall requires backing plates and toggle bolts rated for the camera's weight. Consult the datasheet for load specs and choose fasteners accordingly.
Q: Can I use the 5507-461 on a wall?
A: No. This mount is designed exclusively for ceiling or soffit installation. For wall mounting, select a wall-bracket variant from the Axis mounting family.
Q: Does the swivel lock in place after adjustment?
A: The swivel provides rotational freedom but is not a fixed tilt mechanism. Once adjusted, it stays in position under normal conditions; however, vibration or impact may shift the angle. For fixed positioning without drift risk, hand-tighten the swivel connection or use a secondary lock-washer if specified in the datasheet.
Q: Are extension pipes required, or can I use the mount as-is?
A: The mount works without extension pipes on standard ceiling heights (8–10 feet). If your soffit or mounting point is lower, or if you need additional standoff distance from a structural element, order the 30 cm or 1 meter extensions separately.
Q: What is the maximum camera weight the 5507-461 supports?
A: Load capacity depends on the anchor fasteners and ceiling material. Refer to the datasheet for the mount's load rating, then match it to fasteners approved for that load and your ceiling type.
Q: Is the 5507-461 compatible with non-Axis pendant kits?
A: The mount uses a standard 1.5" NPS thread interface, so it will fit any pendant kit or camera holder with that thread size — not exclusive to Axis. However, Axis compatibility is guaranteed; third-party fit depends on thread specification and weight rating.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I recommend the Axis 5507-461 specifically when your site survey reveals sloped ceilings, soffit installations, or ramp-level architectural features. This mount solves the geometry problem that catches most installers — you can't force a flat-mount camera to look straight ahead on a 30-degree ramp. The 5507-461's 45-degree angle compensation means the camera's optical axis aligns with actual coverage angles, not frustratingly skewed.
Technical Highlights:
- 45-Degree Angle Range: Covers the vast majority of non-flat ceiling scenarios (parking ramps, vaulted spaces, soffit offsets) without custom engineering or multiple adapter plates.
- 1.5" NPS Thread Standardization: Eliminates mount-to-camera compatibility risk — you can swap any Axis pendant kit or the T91A05 holder without redesigning the bracket infrastructure.
- Swivel Ball Joint: Absorbs lateral loads and minor vibration in high-traffic zones, protecting the camera from shock-induced drift. Also simplifies aiming — no need for separate PTZ hardware if you only need 10–15 degrees of directional adjustment.
Deployment Considerations:
- Fastener selection is non-negotiable. The mount's load rating is only as good as the anchor bolts and ceiling material can support. Concrete requires powder-actuated or epoxy anchors; steel needs proper lag bolts; drywall needs backing. Underestimate this and your camera drops. Budget time for a structural load calculation on renovation projects.
- Extension pipes (30 cm and 1 meter) are sold separately. If your soffit is shallow or you need standoff distance from a pillar, factor these into the BOM and lead time. Don't assume the base mount alone reaches your target height.
The 5507-461 is essential for parking structure rollouts, multi-level atriums, and any venue where you're installing cameras on non-uniform ceilings. It's not a luxury — it's the right tool for the geometry. Without it, you're fighting the building's architecture. With it, installation becomes straightforward.
