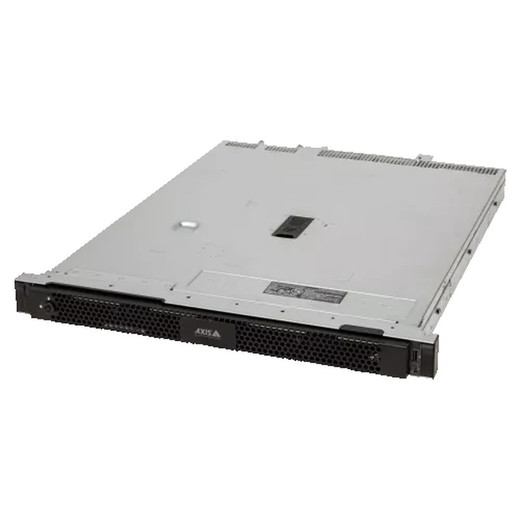

Axis 02538-001 S1232 32TB Camera Station Recording Server
Overview
The Axis 02538-001 is a purpose-built network video recorder designed to handle large-scale IP surveillance deployments using Axis Camera Station management software. The 32TB storage capacity eliminates frequent rotation cycles — critical when you're recording high-resolution streams from dozens of cameras on a 24/7 schedule. This is a pre-configured appliance: the operating system and Camera Station software ship pre-installed, so you rack it, cable it, and start adding cameras. No OS installation, no licensing assembly.
The S1232 ships in a standard 1U form factor, meaning it integrates directly into existing server racks without footprint surprises. It accepts AC or DC power input, giving you flexibility in equipment rooms with either standard wall outlets or redundant DC distribution. Storage is the headline spec here — 32TB of onboard capacity — but the real value lies in the throughput architecture underneath: the 02538-001 is engineered to ingest and buffer multiple high-definition video streams simultaneously without frame drops or playback lag.
Key Features
- 32TB Storage Capacity: Sufficient for weeks or months of continuous 24/7 recording from 16–32 high-resolution cameras, depending on bitrate and resolution. This reduces the need to archive footage to secondary storage mid-deployment and frees IT staff from weekly retention juggling.
- Multi-Stream H.264 and H.265 Recording: Ingests H.264 and H.265 (HEVC) from compatible cameras. H.265 cuts bitrate roughly in half compared to H.264 at equivalent quality — on a 32TB appliance recording dozens of cameras, that translates to 50–80% more archive depth before you hit capacity.
- Pre-Installed Axis Camera Station Software: No licensing keys to hunt down, no activation delays. Plug in the appliance, configure network settings, and begin adding cameras through the Camera Station interface. Dramatically shortens time-to-record for integrators.
- 1U Rack-Mount Chassis: Fits standard 19-inch server racks. The compact footprint is essential in cramped equipment rooms where every unit of rack space is spoken for. Includes mounting bracket kit in the package.
- AC/DC Power Input: Supports both 110–240V AC and DC inputs. In facilities with redundant DC backup power or outdoor/remote installations using DC solar systems, this dual input option eliminates the need for an intermediate AC/DC converter.
- MicroSD Card Expansion Slot: Beyond the onboard 32TB, you can insert microSD cards for temporary backup or export of critical footage segments — useful when you need to hand off evidence or maintain an offline copy without running a separate archive appliance.
- Data Integrity and Security: Protects recorded streams against unauthorized access through standard authentication and encryption protocols. In regulated environments (healthcare, banking, government), this baseline security posture reduces compliance friction.
- Onboard Network Connectivity: Wired connectivity (Ethernet) supports both IPv4 and IPv6. No wireless, which is correct for a fixed appliance in a server room — eliminates RF interference and keeps network traffic segregated on hardwired infrastructure.
Integration and Compatibility
The 02538-001 is optimized for Axis IP cameras, but Camera Station software also ingests streams from third-party ONVIF-compliant cameras. That means you can mix Axis and non-Axis hardware in a single deployment without needing a separate VMS appliance.
When sizing storage for a mixed environment, account for bitrate variance: Axis cameras often ship with intelligent compression profiles (Zipstream, AcuSense), which reduce bitrate by 40–60% compared to baseline H.264. Third-party cameras may not offer equivalent optimization, so factor in 20–30% additional storage headroom if you're running a heterogeneous fleet.
For storage and retention planning, use this rough math: at 4 Mbps average bitrate per stream, 32TB holds roughly 800 camera-days of archive (one 4MP camera, 24 hours per day). With H.265 or Zipstream, you'll stretch that to 1,200+ camera-days. Adjust down if you're recording 8MP or higher-resolution sources.
What's in the Box
- Axis S1232 32TB Camera Station Recording Server (02538-001)
- Power Cable
- Rack Mounting Kit (brackets and fasteners for 19-inch racks)
- Installation and Setup Documentation
- Axis Camera Station License Information
- Recovery Media
- Warranty and Support Information
Frequently Asked Questions
Q: Can I expand the 32TB storage after purchase?
A: The onboard 32TB is fixed. The microSD slot accepts temporary backup or export; it is not intended as primary storage expansion. If you need more than 32TB of primary storage, you would need to plan for a second S1232 appliance or transition to a different recorder architecture.
Q: Does the 02538-001 work with non-Axis cameras?
A: Yes, if they are ONVIF-compliant. Camera Station supports ONVIF Profile S and Profile G streams, so mainstream third-party IP cameras integrate without firmware patches or plugins.
Q: What is the maximum number of cameras this recorder can handle?
A: Capacity depends on resolution, bitrate, and frame rate of each camera. Axis typically rates the S1232 for 32–64 cameras at 4–5 Mbps average bitrate (1080p to 3MP). High-resolution or high-bitrate cameras reduce the count. Consult the datasheet or contact Axis technical pre-sales to validate your specific camera mix.
Q: Is the S1232 NDAA-compliant or TAA-listed?
A: Axis publishes compliance documentation separately. Check the Axis product certification pages or your distributor's compliance documentation for current NDAA or TAA status.
Q: What is the warranty on the 02538-001?
A: Warranty terms are included with the unit. Confirm specific duration and coverage scope with your order documentation or the manufacturer.
Q: Can I use the 02538-001 in a redundant or failover setup?
A: Camera Station software supports multi-server configurations for distributed recording. Check the Camera Station administration guide for clustering, replication, or failover procedures specific to your version.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02538-001 is a workhorse recorder for integrators managing moderate to large surveillance estates. The 32TB capacity is the obvious headline, but what matters on day two is throughput — the S1232 maintains frame integrity across multiple simultaneous streams without the CPU stalling or the network becoming a bottleneck. If you're recording 32–48 mid-resolution cameras on a single appliance, this hardware will not be the limiting factor in your deployment.
Technical Highlights:
- 32TB Storage at Constant Throughput: Handles 800+ camera-days of H.264 recording (4 Mbps per camera baseline), or 1,200+ camera-days with H.265 or Zipstream-optimized feeds. The onboard storage eliminates weekly archive rotations in most enterprise installs.
- H.265 Codec Support: When cameras ship H.265, bitrate drops 40–60% versus H.264 at equivalent visual quality. On a 32TB appliance, that's the difference between 6 months of 40-camera retention and 10 months. Material difference in forensic value and compliance hold periods.
- Pre-Installed Camera Station: No VMS deployment overhead — licensing, OS patching, and software initialization are complete. For integrators, this is 3–5 hours of labor saved per installation, and fewer post-deployment configuration surprises.
- AC/DC Dual Input: Standard 110–240V AC, but also accepts 12–48V DC. In remote or solar-powered installs, this eliminates the need for an intermediate power converter and keeps the bill of materials lean.
Deployment Considerations:
- Camera Bitrate Validation: The S1232 is rated for 32–64 cameras depending on bitrate. Do not assume all cameras average 4–5 Mbps — measure or model bitrate using the camera vendor's bitrate calculator. 8MP cameras at 30 fps often exceed 10 Mbps each; two dozen of those exhaust the throughput budget faster than you'd expect.
- No Onboard Redundancy: This is a single appliance. If drive failure or power loss occurs, you lose ingest until recovery. In critical deployments (banking, healthcare, government), plan for a second recorder with replication, or integrate network-level RAID at the storage layer if Camera Station supports it.
- MicroSD Slot Limitation: The microSD expansion is for backup export, not primary storage overflow. Don't design a system expecting to auto-overflow to microSD cards — you'll hit card size limits and administrative chaos within weeks.
Position the 02538-001 as the default entry point for enterprise or integrator-managed surveillance where you have 20–50 cameras, consistent 24/7 recording, and a requirement for months of retention without secondary archive hassle. It's not overkill for smaller sites, but you'll leave capacity on the table. For five-camera mom-and-pop shops, step down to a smaller appliance. For 100+ camera megastores or campuses, architect a distributed multi-recorder strategy instead.
