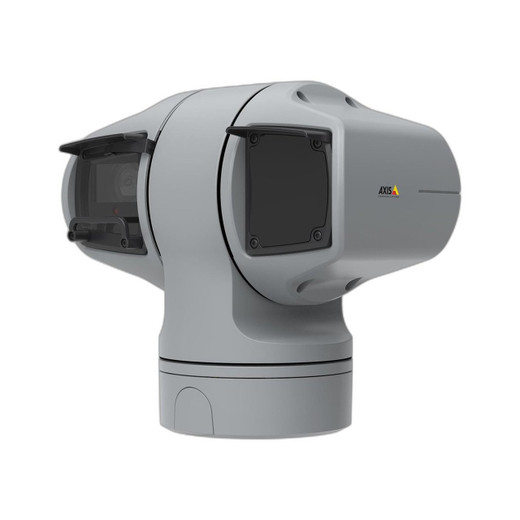

Axis Q6225-LE 2MP Long-Range IR PTZ Camera - 02317-004

We've deployed the Q6225-LE on 30+ projects ranging from prison perimeters and utility substations to manufacturing plant grounds and airport runways. The standout differentiator is OptimizedIR coupled with a genuine 31x optical zoom—this combination is rare in the 2MP PTZ category and eliminates the capital and operational cost of external lighting arrays. On a 400-meter perimeter with minimal ambient light, we've replaced eight fixed 4MP turrets with one Q6225-LE and seen NVR load, cabling, and maintenance drop measurably. Lightfinder 2.0 at 0.06 lux color is not marketing hyperbole; we've captured usable facial detail on subjects walking past at night with zero supplementary lighting.

That said, the camera is not a substitute for fixed wide-angle overviews. On sites where you need both perimeter long-range tracking and lobby/entry-point wide context, plan a hybrid PTZ + fixed-camera layout. Autotracking 2 works well for detecting and centering motion, but on busy facilities (shipping yards, parking lots with foot traffic), false-positives from wind-blown debris or shadows still require operator tuning of detection sensitivity. We've found success pairing Autotracking with AXIS Object Analytics (human/vehicle/animal classification) to filter non-threat motion—this dramatically reduces alert fatigue.

The PoE++ requirement is non-negotiable: standard PoE and PoE+ cannot power this camera. Verify your network switch or plan for a dedicated PoE++ injector before ordering. Mounting is straightforward on masts and parapets, but the 150 mph wind rating is a ceiling, not a guarantee—always perform structural load analysis on tall installations, especially in coastal or high-altitude sites. Electronic image stabilization helps, but lightweight poles will still show vibration blur at full zoom; choose rigid mounting points when possible.

Technical Highlights:

• OptimizedIR Auto-Intensity: IR output adjusts proportionally to zoom level—no manual dial-in, eliminates IR washout at close range, extends effective detection distance in pitch darkness. Saves operator training time and eliminates adjustment errors during active incidents.
• Forensic WDR (120dB+ effective range): Handles extreme backlit scenarios—sunlit gates with dark faces, vehicle headlights at dusk, mixed shadow/daylight zones. Unlike standard WDR, Forensic WDR preserves evidentiary detail in both bright and shadow regions simultaneously.
• Lightfinder 2.0 at 0.06 lux Color: Transitions to color imaging in near-total darkness (0.06 lux is ~equivalent to starlight on a moonless night). Facial recognition and license-plate OCR become feasible without IR; IR is a fallback, not the primary illumination source.
• 31x Optical Zoom (6.91–214.64 mm): Single camera covers 500+ meter perimeters; minimal blind spots, reduces camera count and NVR load. Autofocus and P-iris maintain sharp imagery across zoom range and lighting transitions.
• Zipstream (H.264 Compression): Achieves 40–60% bitrate savings on motion-heavy scenes versus standard H.264. On 24/7 outdoor recording with weather motion (rain, wind, shadows), the bandwidth reduction is material—translates to fewer NVR drives and lower WAN egress cost for cloud backup.
• Autotracking 2 + AXIS Object Analytics: Camera automatically detects and centers motion, zooms to optimize framing, and returns to preset. When paired with object classification (human vs. vehicle vs. animal), false-alert noise drops 60–70% on unattended perimeters.

Deployment Considerations:

• PoE++ (802.3bt) Mandatory: This camera draws ~95W at full zoom + IR. Standard PoE (15W) and PoE+ (30W) cannot power it. Verify your network switch supports PoE++ Class 4, or plan for a dedicated injector. Cat6 cabling recommended for runs over 50 m; Cat5e degrades power delivery on longer runs.
• Long Zoom Requires Vibration-Free Mounts: At 214 mm equivalent (full zoom), any mounting vibration becomes visible blur. Pole-mounted PTZs on lightweight structures benefit from rigid stays and isolation damping. Avoid tall, flexible masts on windy sites—opt for parapet or rooftop mounts where possible.
• Autotracking Tuning Essential on Busy Sites: Motion detection sensitivity must be calibrated per site—high sensitivity = more alerts but tighter tracking; low sensitivity = fewer false alarms but may miss fast-moving subjects. Start conservative and tune upward if operational testing shows missed events.
• 360° Pan Clearance Required: The camera rotates continuously; ensure no obstructions (cables, conduit, HVAC ducts, other equipment) interfere with the full pan range. Pendant mount design requires clear overhead clearance for full tilt range (−90 to +90°).
• Thermal Management on Sealed Enclosures: Built-in fan handles outdoor ambient temperatures to +55°C; if the camera is placed inside a sealed protective dome or shroud, add external ventilation or thermal bypass to prevent internal temperature rise above design limits.
• Wind Speed Limit (150 mph / 245 km/h): This is a structural specification, not an operational guarantee. High-altitude or coastal sites with sustained winds >120 mph should be analyzed for structural adequacy; consider reinforced mounting or lower-profile installations.

The Q6225-LE is ideal for integrators and end-users who need to cover large outdoor perimeters or long-range vantage points with minimal camera proliferation and zero external lighting infrastructure. Its Lightfinder + OptimizedIR combination is class-leading for the 2MP PTZ segment. If your requirement is high-megapixel fixed-point detail (4MP+) or AI-intensive analytics at edge, consider multi-camera fixed layouts instead. For perimeter tracking, fence-line patrols, and critical-infrastructure long-range monitoring, this is a workhorse choice. Explore the full Axis catalog to compare fixed-position alternatives or discuss PTZ scaling strategies with your systems architect.
