Discontinued — No Longer Available New
This model has been discontinued by Axis. Shop current Axis products → or see the recommended alternatives below.

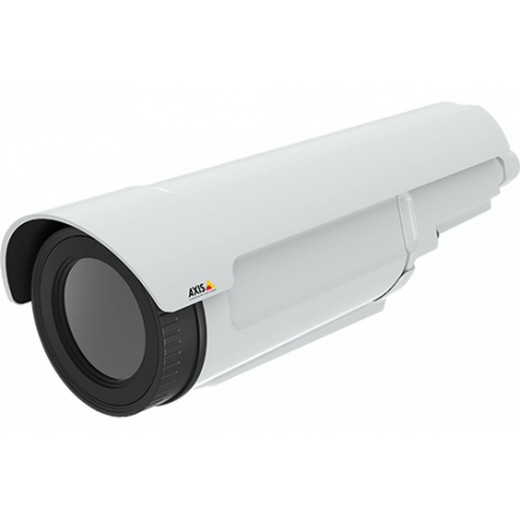

Axis Q1942-E Thermal Outdoor Bullet IP Camera
The Axis Q1942-E is a professional-grade thermal imaging camera engineered for outdoor surveillance in the most challenging environments. Leveraging uncooled microbolometer thermal sensor technology, this fixed bullet camera delivers reliable threat detection and monitoring independent of ambient lighting, weather conditions, or visibility obstruction. Whether deployed for critical infrastructure protection, perimeter security, or wide-area monitoring, the Q1942-E provides the thermal intelligence required for high-security operations.
Key Features
- Thermal imaging with <50 mK sensitivity (NETD) for precise heat signature detection
- 800x600 thermal resolution with multiple lens options (10mm to 60mm focal lengths)
- 8.3 to 30 fps frame rates across all thermal modes
- IP66-rated housing for outdoor durability in extreme temperatures (-40°C to +60°C)
- Power over Ethernet (PoE Class 3) for simplified installation and power delivery
- H.264 video compression with Zipstream support for bandwidth efficiency
- Built-in video analytics and intelligent tampering detection
- Electronic image stabilization for steady thermal footage in windy conditions
Technical Specifications
The Q1942-E features an uncooled microbolometer thermal sensor delivering exceptional sensitivity for detecting subtle temperature variations. Its thermal sensor resolution and multiple focal length options (10mm, 19mm, 35mm, and 60mm) enable operators to configure horizontal fields of view ranging from 10° to 63°, accommodating both wide perimeter coverage and long-range detection scenarios. The camera supports frame rates from 8.3 fps to 30 fps depending on configuration, enabling fluid monitoring of large areas or precise tracking of individual subjects.
PoE Class 3 power delivery eliminates the need for external power infrastructure, reducing installation complexity and cost. H.264 compression combined with Zipstream technology optimizes storage and bandwidth utilization without sacrificing image quality. Serial connectors enable integration with auxiliary equipment, while firmware signing and local storage capabilities enhance security and operational flexibility.
Applications
- Critical infrastructure and utility perimeter security
- Border and boundary monitoring
- Industrial facility surveillance
- Transportation hub and port security
- Detection through smoke, fog, and darkness
The Q1942-E represents a mature thermal imaging solution optimized for fixed outdoor deployment. Its uncooled sensor architecture eliminates active cooling complexity while maintaining exceptional thermal sensitivity—critical for distinguishing human subjects from ambient environmental temperature. The <50 mK NETD specification positions this camera at professional security standards, enabling reliable detection across diverse climate zones.
The variable lens configuration strategy accommodates both wide perimeter scanning and focused monitoring, though operators should carefully match focal length to deployment scenario. PoE Class 3 delivery is suitable for compact optical packages; high-frame-rate thermal applications may benefit from supplementary power planning. Integration with ONVIF-compatible VMS platforms ensures vendor-neutral system architecture, a key consideration for enterprise deployments.
Download Product Datasheet (PDF)
