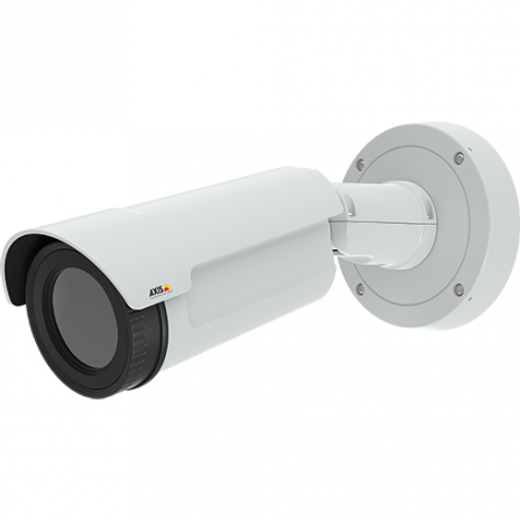

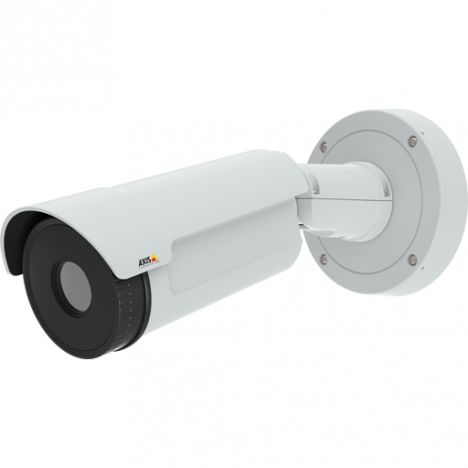

Axis Q1942-E 60mm Thermal Outdoor Bullet Camera

Axis Q1942-E 60mm Thermal Outdoor Bullet IP Camera

The Axis Q1942-E is a professional-grade thermal imaging camera engineered for demanding outdoor security applications. This fixed bullet camera delivers 24/7 situational awareness through advanced thermal technology, eliminating dependency on visible light and penetrating environmental obstacles like fog, smoke, dust, and darkness. With its 60mm lens and 10° horizontal field of view, the Q1942-E provides extended-range thermal surveillance ideal for perimeter protection, border security, critical infrastructure monitoring, and large-area threat detection.

Key Features

• Uncooled micro bolometer thermal sensor with <50 mK thermal sensitivity (NETD)
• 800x600 thermal resolution (upscaled) at up to 30 fps
• 60mm fixed focal length with narrow 10° × 7.7° field of view for distant monitoring
• IP66-rated weatherproof design rated for -40° to 60°C operation
• Power over Ethernet (PoE Class 3) for simplified installation
• H.264 video compression with Zipstream support for reduced bandwidth
• Electronic image stabilization to counteract vibration and wind effects
• Integrated audio support with audio detection capabilities
• 2 alarm inputs/outputs for integration with external systems

Technical Highlights

The Q1942-E utilizes an uncooled micro bolometer thermal sensor, eliminating the need for active cooling while maintaining exceptional thermal sensitivity. This architecture enables reliable long-term operation in outdoor environments without maintenance-intensive cryogenic cooling systems. The camera's thermal resolution and sensitivity allow detection of subtle temperature variations, critical for identifying concealed threats, detecting unauthorized intrusion, or monitoring equipment conditions.

Advanced video compression via H.264 and Zipstream technology optimizes network bandwidth and storage utilization—essential for continuous surveillance deployments. Built-in analytics capabilities including motion detection and temperature-based alarming automate threat identification and reduce manual monitoring overhead. The camera's rugged IP66 enclosure and extended operating temperature range ensure reliable performance across industrial, border, and perimeter environments.

Professional Applications

• Perimeter security and intrusion detection
• Border and critical infrastructure protection
• Industrial facility monitoring and equipment surveillance
• Port and airport security operations
• Fire detection and early warning systems
• Search and rescue operations

Ted Perry

The Q1942-E represents a specialized thermal solution for organizations requiring absolute night-independence and environmental penetration. Unlike standard visible-light cameras, thermal imaging detects radiant heat energy, making it immune to lighting conditions, camouflage, and obscuration—critical advantages for border security and perimeter protection. The 60mm lens's narrow 10° field of view prioritizes range and thermal detail over coverage width, making this camera ideal for long-distance monitoring rather than broad area surveillance.

The uncooled sensor design balances performance with operational cost, avoiding the complexity of cooled thermal systems while maintaining <50 mK sensitivity sufficient for detecting human-sized targets at extended distances. Integration via PoE simplifies deployment in remote or challenging terrain where traditional power infrastructure is unavailable. For organizations operating 24/7 surveillance in complete darkness or adverse weather, thermal imaging eliminates compromises inherent to light-amplification (night vision) technologies.

Download Product Datasheet (PDF)
