Axis M5074 1MP 720p Mini PTZ Camera - 02345-001

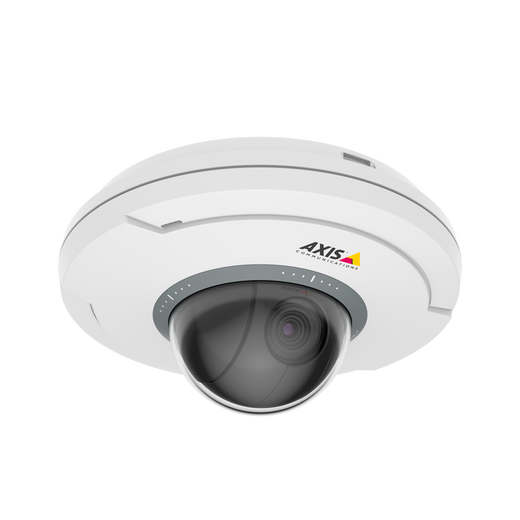

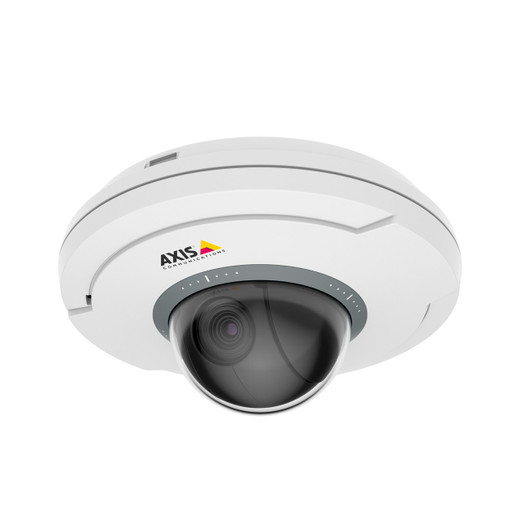

Axis 02345-001 M5074 1MP 720p Mini PTZ Camera

The Axis M5074 (model 02345-001) is a compact, motor-driven PTZ camera engineered for indoor surveillance where space constraints and visual discretion override the need for full-size equipment. At roughly palm-sized, this IP camera delivers motorized pan and tilt with 5x optical zoom—a meaningful advantage over fixed domes when forensic detail and coverage flexibility are competing demands.

Overview

The M5074 addresses a specific problem: retail loss prevention, bank lobbies, and office security require the ability to zoom into incidents after the fact, but full-size PTZ units are visually intrusive and expensive. This mini PTZ splits the difference. Its 1/2.8" CMOS sensor produces 1280×720 (720p) video at 50 or 60 fps depending on your regional power standard. The compact dome housing is ceiling- or wall-mountable and blends into existing décor far better than a traditional ball camera.

The 5x optical zoom (2.2–11.0 mm focal length, 71° to 14° horizontal field of view) preserves resolution during magnification—critical for forensic review. Pair this with 12x digital zoom for post-incident analysis, though expect resolution loss beyond 5x optical. The motorized pan mechanism rotates ±179°; tilt covers a full 90° range, giving operators remote control over the viewing angle without repositioning the camera.

Key Features

• Forensic WDR (Wide Dynamic Range): Handles mixed-lighting scenes (storefronts with backlighting, indoor-outdoor transitions) by preserving detail in both bright and shadowed areas—eliminates the washed-out or silhouetted footage common in standard WDR. Mandatory for retail environments.
• Low-light & IR night vision (0.1 lux minimum illumination): Built-in infrared illumination activates automatically in darkness, delivering monochrome surveillance without visible red glow. Useful for after-hours monitoring without additional lighting infrastructure.
• H.264 compression with Zipstream technology: Encodes video efficiently, reducing bandwidth consumption by ~50% versus standard H.264 alone—meaningful when streaming multiple cameras over limited network capacity or recording weeks of footage on modest NVR storage.
• PoE Class 3 power (under 13W typical): Standard 802.3af PoE supplies all power; no separate 12VDC supply or wall outlet required. Simplifies cabling in retrofit installations and won't overburden switch power budgets on larger deployments.
• Built-in microphone with audio detection: Detects scream and glass-break events, triggering alerts or recording markers. Adds investigative value in retail and hospitality settings without separate audio equipment.
• IP51 environmental rating: Dust and splash protection sufficient for controlled indoor spaces. Not rated for rain or direct spray—keep this indoors or under eaves only.
• Motorized pan/tilt with remote control: Operators can adjust viewing angle on demand via web interface or VMS. No physical repositioning required; ideal for monitoring entry points or following activity across a space.

Integration & Compatibility

The 02345-001 is a standard ONVIF-compliant PTZ camera, integrating into most enterprise network video recorders and VMS platforms. Connects via standard RJ-45 Ethernet; no special cabling. Configure via Axis web interface or management tools. Confirm your NVR or VMS supports ONVIF PTZ protocols before purchase if you plan to use remote pan/tilt functionality.

When to Choose a Different Model

The M5074's 1MP resolution is entry-level by current standards. If your application requires wide-area coverage with facial or license-plate recognition at distance, opt for a higher-megapixel variant in the Axis surveillance line. For outdoor deployments, the IP51 rating is insufficient—choose an IP66 or IP67 rated model instead. If you need continuous zoom control (no preset stops) or 30x+ magnification, evaluate larger Axis PTZ models designed for wide-area surveillance.

Deployment Considerations

Install the M5074 on a ceiling or high wall where it has an unobstructed view of entry points or high-value zones. The ±179° pan and 90° tilt allow a single camera to cover multiple sight lines remotely. Use PoE network infrastructure planning to ensure your switch supports Class 3 devices; most modern PoE switches do, but older 802.3af-only switches may require PoE injectors. Account for PoE injector placement if running long cable runs.

Frequently Asked Questions

Q: Can the M5074 be installed outdoors?

A: No. The IP51 rating protects against dust and light splashing only. Rain, snow, or direct spray will compromise the optics and electronics. Install indoors only, or under covered eaves with no direct weather exposure.

Q: What is the warranty on the 02345-001?

A: Confirm with your supplier or manufacturer directly; warranty terms vary by region and channel. Axis typically offers 2–5 year options depending on support tier.

Q: Does the M5074 work with Milestone XProtect?

A: Yes, via ONVIF Profile S (standard Surveillance profile). PTZ control (pan, tilt, zoom presets) is supported. Test in your environment before full deployment to confirm preset behavior and latency.

Q: How much bandwidth does the M5074 consume during recording?

A: At 1280×720 60fps with Zipstream, expect 2–4 Mbps depending on scene complexity. Standard 100 Mbps Ethernet or PoE line supports 25–50 cameras. Calculate bandwidth on your actual network to avoid saturation.

Q: Is the lens replaceable or upgradeable?

A: No. The lens is fixed to the camera body and not field-serviceable. If lens performance is inadequate for your use case, replacement of the entire camera unit is necessary.

Q: What mounting options are available?

A: The M5074 supports ceiling and wall mounting via standard bracket (included or ordered separately). Confirm mounting template availability for your installation surface.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis M5074 (02345-001) occupies a pragmatic niche: a compact, motorized PTZ camera for indoor deployments where traditional fixed domes lack flexibility and full-size PTZ units are too conspicuous. Its 1MP resolution is adequate for most forensic applications when combined with its 5x optical zoom—the optics preserve detail that digital zoom alone would degrade, making it viable for loss prevention in retail and hospitality.

Technical Highlights:

• Forensic WDR with 0.1 lux minimum illumination: Delivers usable detail in mixed-lighting scenarios (e.g., storefronts with outdoor windows, backlit subjects) without the signal degradation common in standard WDR. Critical for retail loss prevention and bank lobbies where lighting is unpredictable.
• 5x optical zoom (2.2–11.0 mm, 71°–14° FOV): Enables operators to zoom into incidents after the fact without resolution loss. Combined with motorized ±179° pan and 90° tilt, a single camera covers multiple sightlines remotely.
• H.264 with Zipstream and PoE Class 3 (~13W): Reduces storage footprint by ~50% versus standard H.264 and draws minimal power, making the 02345-001 ideal for retrofits where PoE infrastructure exists but power budgets are tight.

Deployment Considerations:

• 1MP is lower resolution than modern enterprise cameras; users requiring wider-area coverage or higher density detail should evaluate higher-megapixel alternatives in the same family.
• IP51 rating means indoor installation only—no rain or direct spray. Scope ceiling or wall placement in advance to confirm PoE switch proximity and pan/tilt sightlines.
• Motorized pan/tilt adds complexity to integration: confirm your NVR or VMS supports ONVIF PTZ protocols, and test preset behavior in your environment before deployment.

Deploy the M5074 for targeted, zoom-dependent surveillance in controlled spaces where discretion and post-incident analysis trump wide-area coverage. Retail loss prevention, bank lobbies, and office conference rooms are natural fits; outdoor or high-resolution facial recognition applications are not.
