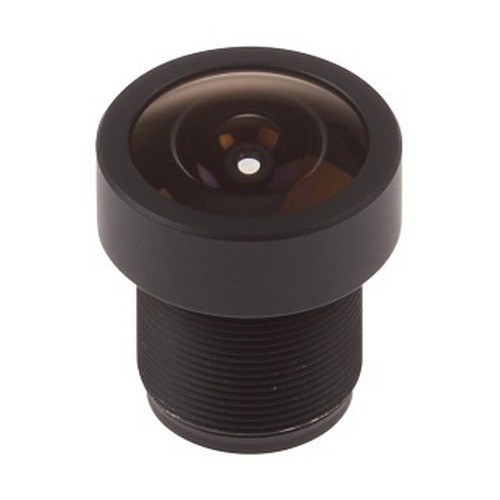

Axis 02006-001 M12 Lens F1.8 IR 2.1mm 10-Pack
Overview
The Axis 02006-001 is a fixed-focal-length M12 lens supplied as a 10-pack, purpose-built for ultra-wide-angle surveillance where area coverage matters more than detail at distance. The 2.1mm focal length delivers a 148° horizontal field of view—roughly equivalent to standing at arm's length from a corner and seeing both adjacent walls in full—making it a fit for tight corridors, lobbies, and warehouse aisles where a single camera must watch a broad area. Paired with the integrated F1.8 aperture and IR illumination, this lens handles low-light and nighttime monitoring without external lighting, a practical advantage in unattended facilities. The 10-pack quantity supports multi-camera rollouts, replacements, or staged upgrades across an existing Axis surveillance platform.
Key Features
- 148° Horizontal Field of View: Ultra-wide angle captures large areas from a single mounting point—cuts the number of cameras needed to cover a hallway or loading dock, directly reducing system cost and complexity.
- F1.8 Aperture: Large aperture opening gathers roughly 50% more light than F2.4 designs, so the camera produces usable images in dimly lit indoor spaces and dusk outdoor conditions without relying on IR alone—extends usable daylight hours and reduces infrared blooming artifacts.
- Integrated Infrared (IR) Illumination: On-board 850nm IR LEDs enable full monitoring in complete darkness; no external IR projectors or lighting infrastructure required—simplifies installation and reduces operating costs in 24/7 surveillance applications.
- M12 Form Factor: Proprietary Axis mount interfaces seamlessly with the P3925-R and P3935-LR compact camera bodies; no mechanical adapters or custom solutions needed—standardized integration reduces commissioning time and field errors.
- Fixed 2.1mm Focal Length: No motorized focus or zoom mechanism means zero calibration drift, lower power draw, and predictable optics—ideal for permanently installed, set-and-forget deployments where focal length will not change after commissioning.
- 10-Pack Quantity: Bulk supply suits multi-camera facilities and provides spares for field replacements, minimizing downtime when a single lens requires service or upgrade.
Integration & Compatibility
The 02006-001 is a direct optical replacement for the factory lens on two Axis compact camera platforms: the Axis P3925-R and Axis P3935-LR. Both use the same M12 mount and operate across standard ONVIF-compliant network configurations, so swapping a lens does not require firmware changes or reconfiguration of the camera itself—only physical lens removal and reinstallation. If you are running compact Axis camera systems, verify your exact model against the P3925-R and P3935-LR compatibility list before ordering; other Axis camera lines (e.g., the M-series bullet or turret families) use different optical mounts and will not accept this lens.
Typical Deployment Scenarios
- Indoor Facility Monitoring: Lobbies, corridors, retail stockrooms, and parking ramps where high field of view reduces blind spots and sight-line obstruction.
- Outdoor Perimeter: Loading docks, fence lines, and compound entrances—the F1.8 aperture and IR deliver visibility at dusk and full nighttime operation without exterior lighting.
- Warehouse Automation: Wide-angle coverage of conveyor lines, receiving areas, and cross-docks; captures both operator movement and package flow in a single frame.
- Multi-Camera Rollouts: Staged deployments across multiple facilities—the 10-pack supports standard-sized site kits and reduces per-unit procurement overhead.
When to Choose a Different Lens
The 148° field of view and 2.1mm focal length prioritize coverage breadth over detail. If you need to identify faces, read license plates, or inspect objects at distances greater than 10–15 feet, a longer focal length (e.g., 4mm or 6mm fixed, or a varifocal option) will serve better; consult a lens and coverage planning guide to match focal length to your identification and detail requirements. Similarly, if your facility has adequate fixed or motion-activated external lighting, a standard F2.4 lens may suffice and cost less than the F1.8 IR variant. For mobile or flexible mounting, consider motorized focus or varifocal options in the wider Axis compact lens family.
Environmental & Operational Notes
As a passive optical component, the 02006-001 lens itself carries no inherent IP rating or operating temperature specification; performance depends on the camera body it is mounted to. Verify that the P3925-R or P3935-LR camera meets your environmental requirements (e.g., IP66 for outdoor rain exposure, -40°C to 60°C operating range) before deployment. IR performance is also subject to scene reflectivity and distance; glossy or highly reflective surfaces will appear washed out under IR illumination, while very distant objects may fall outside the effective IR range.
Frequently Asked Questions
Q: Is the Axis 02006-001 compatible with my existing Axis camera?
A: The 02006-001 works only with Axis P3925-R and P3935-LR compact cameras. Other Axis models (bullet, turret, box, panoramic) use different lens mounts and will not accept this M12 lens. Confirm your camera model before purchasing.
Q: What is the effective infrared range of the 02006-001?
A: Infrared range depends on the host camera's sensor and IR power output, not the lens alone. Axis typically specifies IR performance for the complete camera module; consult the P3925-R or P3935-LR datasheet for IR range at standard reflectivity (90% white). In practice, expect 10–25 meters in low-reflectivity indoor spaces.
Q: Can I mix the 02006-001 with other lens types on the same camera model?
A: Yes. Both the P3925-R and P3935-LR support multiple M12 lens variants in the Axis family. You can deploy different focal lengths across a multi-camera system as needed—no firmware changes required, only physical lens swaps.
Q: Does the 02006-001 require any calibration after installation?
A: No. The 2.1mm fixed focal length requires no focus adjustment. Insert the lens into the M12 mount, secure, and power on. Image should be in focus immediately.
Q: Will the 02006-001 work in outdoor winter conditions?
A: The lens itself is an optical component with no moving parts and will tolerate cold; however, the camera body must meet your temperature range. Verify the P3925-R or P3935-LR supports your operating temperature range (-40°C to 60°C is typical for Axis outdoor models). Lens coating may fog if moved from extreme cold to warm air; allow acclimation time or use a recessed lens shade.
Q: What is the warranty on the 02006-001?
A: Refer to the manufacturer's standard warranty terms for Axis optical components, typically 2–3 years from purchase. Confirm with the distributor or access the full warranty documentation on the Axis website.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02006-001 is purpose-built for high-coverage, low-detail surveillance—think warehouse floor or lobby transit zones, not facial recognition. The 148° field of view is genuinely wide; you'll fit an entire hallway or loading dock in frame from a single mount. Pair that with the F1.8 aperture and integrated IR, and you have a lens that handles dim indoor lighting and complete darkness without needing external infrastructure. The 10-pack format makes sense for rolling out multiple cameras or maintaining a spare inventory across distributed sites.
Technical Highlights:
- 148° Horizontal FOV: At 2.1mm, this is true ultra-wide coverage. You're trading perspective detail for area awareness—useful when you need situational awareness more than facial features or small-object inspection.
- F1.8 Aperture: Gathers ~50% more light than F2.4 lenses, which means usable images in ambient light down to roughly 50 lux—dusk conditions where F2.4 designs would force reliance on IR. That cuts down IR blooming and maintains color rendition longer into the evening.
- Fixed Focal Length: No motorized focus drift, no power draw penalty, no calibration creep over time. Set it once and trust it stays set. Especially valuable in unattended or outdoor deployments where refocus isn't practical.
- M12 Optical Mount: Standardized integration with P3925-R and P3935-LR. No custom brackets, no mechanical surprises. Swaps are literally a 2-minute field operation.
Deployment Considerations:
- Field of View Distortion: At 148° horizontal, you're at the edge of rectilinear lens performance. Straight lines near the frame edges will appear curved. This is normal for ultra-wide optics, but it affects vehicle-counting or straight-line object tracking. Plan your mounting height and angle accordingly.
- IR Blooming on Reflective Surfaces: Glossy or wet surfaces (polished floors, rain-wet pavement, white walls) will reflect IR heavily and wash out detail. Position cameras to avoid pointing directly at such reflectors, or expect reduced nighttime contrast in those zones.
- Compatibility Is Strict: P3925-R and P3935-LR only. If you have P3904-R, P3944-R, or any bullet-form Axis cameras, this lens will not mount. Verify model numbers before procurement to avoid field returns.
Best fit: multi-camera warehouse or large indoor facility rollouts where you need wide coverage, can tolerate some edge distortion, and want to minimize the lens count. Also solid for outdoor perimeter work on loading docks or fence lines where dusk-to-night visibility without floodlights is a priority. If you're speccing a 50-camera retail chain, this 10-pack pricing makes sense; if you need one or two replacement lenses, buying singles may be more cost-effective.
